RF Plasma Power Delivery System from Advanced Energy

“No strings attached performance” in RF plasma power for semiconductor manufacturing? At Advanced Energy (AE), they like to say, “no cables attached performance.” That was just one of the five daunting challenges they solved when designing their unique genre-breaking RF plasma power delivery system:

  1. No cables from RF generator-to-match and match-to-process chamber electrode
  2. Ultra-fast RF tuning for very short process steps
  3. Wide impedance operating range
  4. A compact single package to fit in small spaces (enabling direct connection to chamber)
  5. Less expensive than traditional RF generator + matching network + connectors + cables

Paramount® HFi™ from Advanced Energy

Advanced Energy pioneered the first commercially viable, fully integrated RF generator and solid-state matching network system in the year 2000 … and it’s been a massive success. Since then, they've shipped more than 20,000 RF delivery systems with “no cables attached performance” to customers around the world. What began 20+ years ago with their first production volume shipments of the fully integrated system has now evolved into the Paramount® HFi™ – today’s all-digital, integrated generator and solid-state match system.

To meet the demand for a small footprint in advanced semiconductor processing tools such as PECVD and plasma Etch, they developed the most compact and highest performing integrated RF delivery system available. With a package size of 8.5” (W) x 16.5” (D) x 5.25” (H), the HFi products have been recognized for segment-best power density record (~0.25 watts/cm3). The compact package, which would be substantially smaller than a combination of a standard RF generator and a match network, makes it ideal for integrating right onto the process chamber, where space is often limited.

Paramount-HFi

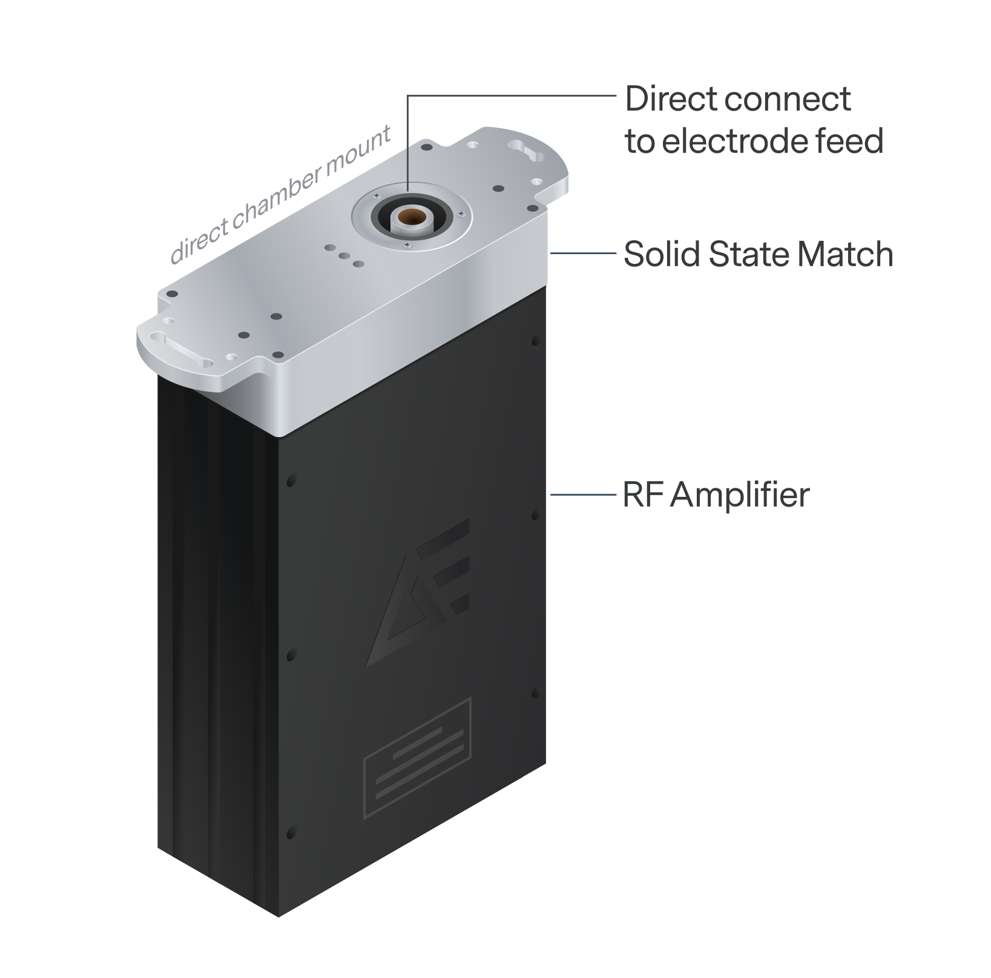

In the Paramount HFi, an electrically switchable solid-state capacitor array is physically integrated with the RF power amplifier providing the most compact form-factor power delivery system available.

It turns out good things do come in small packages – especially when it comes to controlling plasma processes. Paramount HFi delivers the fastest response times with sub-millisecond regulation for crisp transitions on even the shortest process steps at over 32 tune range positions. As seen in the first graph below, typical power delivery of an RF match based on the variable vacuum capacitor could take 0.75 seconds of fluctuation before reaching a new setpoint. Comparing this slow response to the second graph, AE’s solid-state match response with direct coupling to the process chamber makes process transitions into nearly vertical step functions. With nimble, wide-range solid state matching, the HFi series has become an enabler for future generations

Power-Delivery-Difference
The Paramount HFi delivers power to a setpoint change from 300 to 100 W within a millisecond timeframe. This ensures constant, repeatable power delivery where the near-instant tuning increases productivity for these very short, high-cycle count plasma deposition processes.

After 20 years and 20,000 units shipped, their “no strings attached performance” is just hitting its stride alongside their latest innovations.

This artcile can be found on Advanced Energy's website and was written by Peter Gillespie, senior vice president of strategic and corporate marketing.
