Weldable Conical Reducer

Skip to the beginning of the images gallery

Weldable Conical Reducer

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

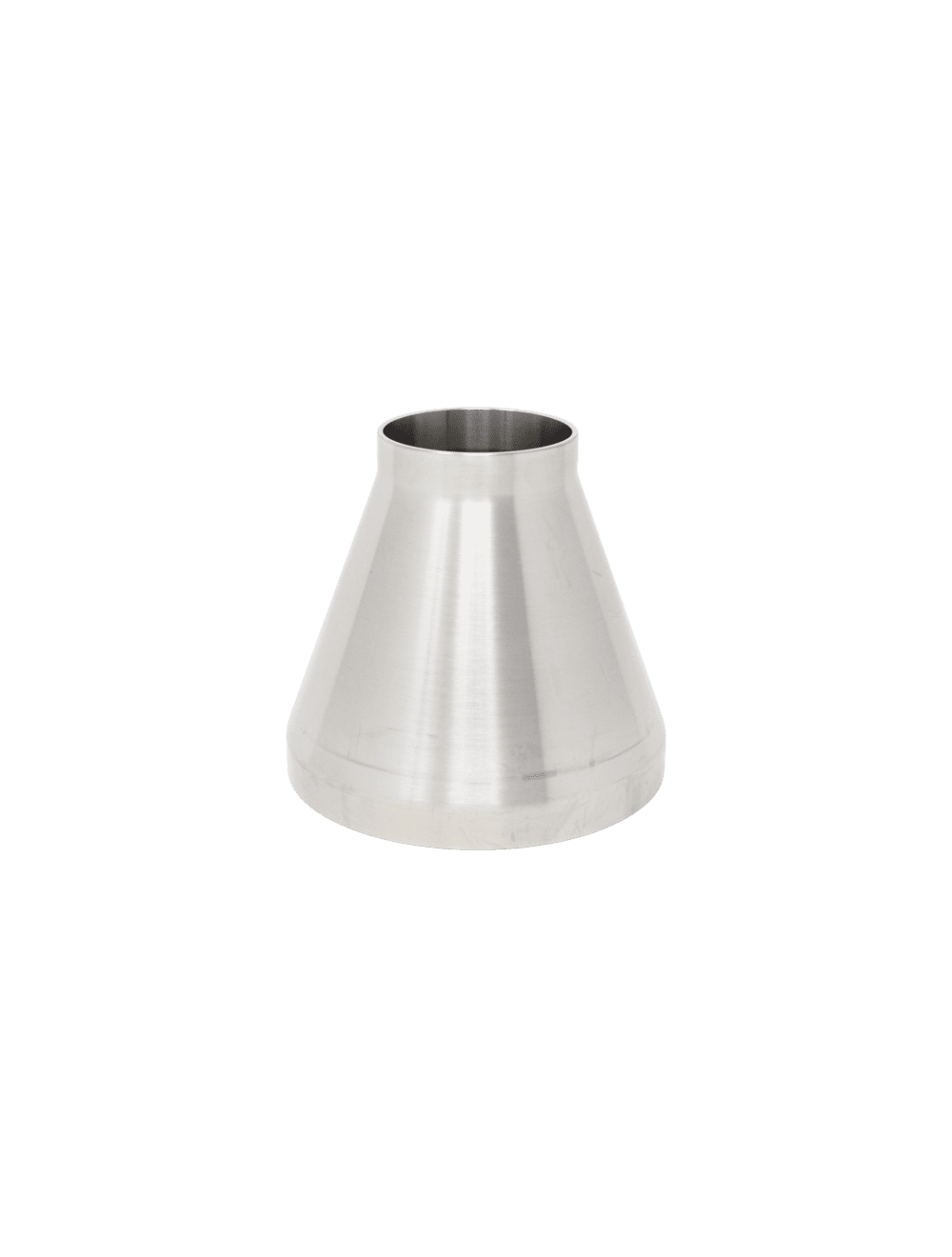

The Weldable Conical Reducer is a flangeless adapter that allows for different tube sizes to be connected in a vacuum system. These reducers are manufactured using 304 stainless steel.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

Manufactured: 304 Stainless Steel
Needs to be butt welded to tubing
Temp Range: -200c to 450c

Sort By

Grouped product items
PART NUMBER	Tube OD (A) (In)	Tube OD (B) (In)	Socket Wall Thickness (In)	Socket Width (C) (In)	Material	Ships Within	PRICE	ADD TO CART
100X075X0.065-WCR-1.38	Tube OD (A) (In) 1.00 Tube OD (B) (In) 0.75 Socket Wall Thickness (In) 0.065 Socket Width (C) (In) 1.38 Material 304SS Ships Within 3-5 Days See more 100X075X0.065-WCR-1.38	1.00	0.75	0.065	1.38	304SS	3-5 Days	$25.00	Starting at: $25.00	PRICE QTY $25.00
150X075X0.065-WCR-2.38	Tube OD (A) (In) 1.50 Tube OD (B) (In) 0.75 Socket Wall Thickness (In) 0.065 Socket Width (C) (In) 2.38 Material 304SS Ships Within 3-5 Days See more 150X075X0.065-WCR-2.38	1.50	0.75	0.065	2.38	304SS	3-5 Days	$25.00	Starting at: $25.00	PRICE QTY $25.00
150X100X0.065-WCR-2.38	Tube OD (A) (In) 1.50 Tube OD (B) (In) 1.00 Socket Wall Thickness (In) 0.065 Socket Width (C) (In) 2.38 Material 304SS Ships Within 3-5 Days See more 150X100X0.065-WCR-2.38	1.50	1.00	0.065	2.38	304SS	3-5 Days	$25.00	Starting at: $25.00	PRICE QTY $25.00
200X100X0.065-WCR-2.38	Tube OD (A) (In) 2.00 Tube OD (B) (In) 1.00 Socket Wall Thickness (In) 0.065 Socket Width (C) (In) 2.38 Material 304SS Ships Within 3-5 Days See more 200X100X0.065-WCR-2.38	2.00	1.00	0.065	2.38	304SS	3-5 Days	$30.00	Starting at: $30.00	PRICE QTY $30.00
200X150X0.065-WCR-2.38	Tube OD (A) (In) 2.00 Tube OD (B) (In) 1.50 Socket Wall Thickness (In) 0.065 Socket Width (C) (In) 2.38 Material 304SS Ships Within 3-5 Days See more 200X150X0.065-WCR-2.38	2.00	1.50	0.065	2.38	304SS	3-5 Days	$32.00	Starting at: $32.00	PRICE QTY $32.00
250X150X0.065-WCR-2.38	Tube OD (A) (In) 2.50 Tube OD (B) (In) 1.50 Socket Wall Thickness (In) 0.065 Socket Width (C) (In) 2.38 Material 304SS Ships Within 3-5 Days See more 250X150X0.065-WCR-2.38	2.50	1.50	0.065	2.38	304SS	3-5 Days	$40.00	Starting at: $40.00	PRICE QTY $40.00
250X200X0.065-WCR-2.38	Tube OD (A) (In) 2.50 Tube OD (B) (In) 2.00 Socket Wall Thickness (In) 0.065 Socket Width (C) (In) 2.38 Material 304SS Ships Within 3-5 Days See more 250X200X0.065-WCR-2.38	2.50	2.00	0.065	2.38	304SS	3-5 Days	$43.00	Starting at: $43.00	PRICE QTY $43.00
300X150X0.065-WCR-3.63	Tube OD (A) (In) 3.00 Tube OD (B) (In) 1.50 Socket Wall Thickness (In) 0.065 Socket Width (C) (In) 3.63 Material 304SS Ships Within 3-5 Days See more 300X150X0.065-WCR-3.63	3.00	1.50	0.065	3.63	304SS	3-5 Days	$55.00	Starting at: $55.00	PRICE QTY $55.00
300X200X0.065-WCR-3.63	Tube OD (A) (In) 3.00 Tube OD (B) (In) 2.00 Socket Wall Thickness (In) 0.065 Socket Width (C) (In) 3.63 Material 304SS Ships Within 3-5 Days See more 300X200X0.065-WCR-3.63	3.00	2.00	0.065	3.63	304SS	3-5 Days	$60.00	Starting at: $60.00	PRICE QTY $60.00
300X250X0.065-WCR-3.63	Tube OD (A) (In) 3.00 Tube OD (B) (In) 2.50 Socket Wall Thickness (In) 0.065 Socket Width (C) (In) 3.63 Material 304SS Ships Within 3-5 Days See more 300X250X0.065-WCR-3.63	3.00	2.50	0.065	3.63	304SS	3-5 Days	$67.00	Starting at: $67.00	PRICE QTY $67.00
400X200X0.065-WCR-3.63	Tube OD (A) (In) 4.00 Tube OD (B) (In) 2.00 Socket Wall Thickness (In) 0.065 Socket Width (C) (In) 3.63 Material 304SS Ships Within 3-5 Days See more 400X200X0.065-WCR-3.63	4.00	2.00	0.065	3.63	304SS	3-5 Days	$85.00	Starting at: $85.00	PRICE QTY $85.00
400X250X0.083-WCR-3.63	Tube OD (A) (In) 4.00 Tube OD (B) (In) 2.50 Socket Wall Thickness (In) 0.083 Socket Width (C) (In) 3.63 Material 304SS Ships Within 3-5 Days See more 400X250X0.083-WCR-3.63	4.00	2.50	0.083	3.63	304SS	3-5 Days	$90.00	Starting at: $90.00	PRICE QTY $90.00
400X300X0.083-WCR-3.63	Tube OD (A) (In) 4.00 Tube OD (B) (In) 3.00 Socket Wall Thickness (In) 0.083 Socket Width (C) (In) 3.63 Material 304SS Ships Within 3-5 Days See more 400X300X0.083-WCR-3.63	4.00	3.00	0.083	3.63	304SS	3-5 Days	$95.00	Starting at: $95.00	PRICE QTY $95.00
