ISO Stub Weld Flanges

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

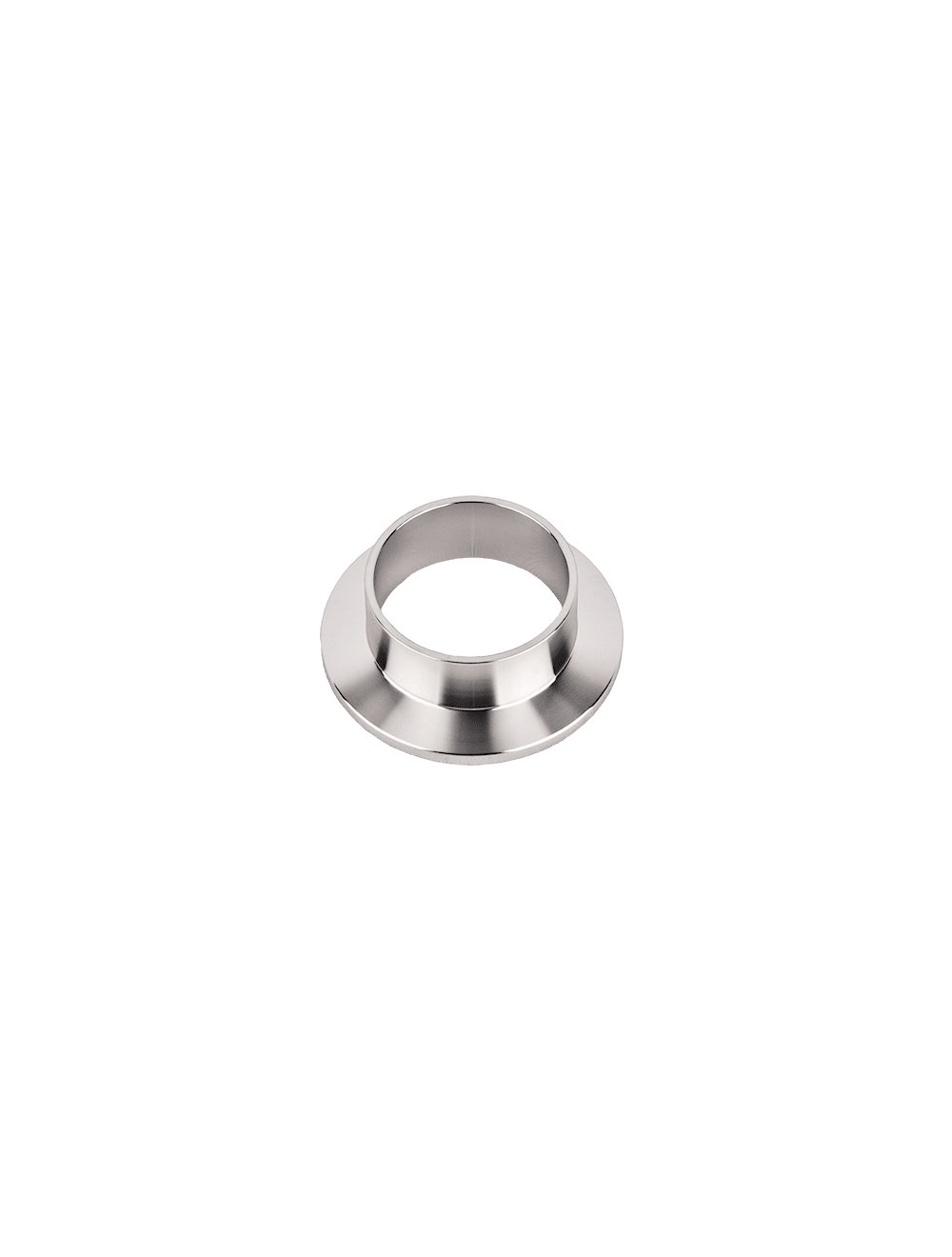

The ISO Stub Weld Flangez are an ISO standard sized flange that attaches onto a other components in the ISO family. ISO stub weld flanges connect using clamps and withstand a vacuum environment of 1×10-8 Torr (High Vacuum).

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits:

Fits all ISO components
Temperature Range: -200C up to 450C

Sort By

Grouped product items
PART NUMBER	Flange Size	Nom. Tube OD (In)	Bore (In)	Flange Height (In)	Material	Ships Within	PRICE	ADD TO CART
QF16-050-HNM-0.50	Flange Size DN16ISO-QF Nom. Tube OD (In) 0.50 Bore (In) 0.38 Flange Height (In) 0.50 Material 304SS Ships Within 3-5 Days See more QF16-050-HNM-0.50	DN16ISO-QF	0.50	0.38	0.50	304SS	3-5 Days	$11.00	Starting at: $11.00	PRICE QTY $11.00
QF16-050-HNM-0.50-AL	Flange Size DN16ISO-QF Nom. Tube OD (In) 0.50 Bore (In) 0.38 Flange Height (In) 0.50 Material 6061-T6 Aluminum Ships Within 3-5 Days See more QF16-050-HNM-0.50-AL	DN16ISO-QF	0.50	0.38	0.50	6061-T6 Aluminum	3-5 Days	$10.00	Starting at: $10.00	PRICE QTY $10.00
QF16-075-HNM-0.50	Flange Size DN16ISO-QF Nom. Tube OD (In) 0.75 Bore (In) 0.63 Flange Height (In) 0.50 Material 304SS Ships Within 3-5 Days See more QF16-075-HNM-0.50	DN16ISO-QF	0.75	0.63	0.50	304SS	3-5 Days	$12.00	Starting at: $12.00	PRICE QTY $12.00
QF16-075-HNM-0.50-AL	Flange Size DN16ISO-QF Nom. Tube OD (In) 0.75 Bore (In) 0.63 Flange Height (In) 0.50 Material 6061-T6 Aluminum Ships Within 3-5 Days See more QF16-075-HNM-0.50-AL	DN16ISO-QF	0.75	0.63	0.50	6061-T6 Aluminum	3-5 Days	$10.00	Starting at: $10.00	PRICE QTY $10.00
QF25-100-HNM-0.50	Flange Size DN25ISO-QF Nom. Tube OD (In) 1.00 Bore (In) 0.88 Flange Height (In) 0.50 Material 304SS Ships Within 3-5 Days See more QF25-100-HNM-0.50	DN25ISO-QF	1.00	0.88	0.50	304SS	3-5 Days	$14.80	Starting at: $14.80	PRICE QTY $14.80
QF25-100-HNM-0.50-AL	Flange Size DN25ISO-QF Nom. Tube OD (In) 1.00 Bore (In) 0.88 Flange Height (In) 0.50 Material 6061-T6 Aluminum Ships Within 3-5 Days See more QF25-100-HNM-0.50-AL	DN25ISO-QF	1.00	0.88	0.50	6061-T6 Aluminum	3-5 Days	$12.00	Starting at: $12.00	PRICE QTY $12.00
QF40-150-HNM-0.75	Flange Size DN40ISO-QF Nom. Tube OD (In) 1.50 Bore (In) 1.38 Flange Height (In) 0.75 Material 304SS Ships Within 3-5 Days See more QF40-150-HNM-0.75	DN40ISO-QF	1.50	1.38	0.75	304SS	3-5 Days	$15.00	Starting at: $15.00	PRICE QTY $15.00
QF40-150-HNM-0.75-AL	Flange Size DN40ISO-QF Nom. Tube OD (In) 1.50 Bore (In) 1.38 Flange Height (In) 0.75 Material 6061-T6 Aluminum Ships Within 3-5 Days See more QF40-150-HNM-0.75-AL	DN40ISO-QF	1.50	1.38	0.75	6061-T6 Aluminum	3-5 Days	$15.00	Starting at: $15.00	PRICE QTY $15.00
QF50-200-HNM-0.75	Flange Size DN50ISO-QF Nom. Tube OD (In) 2.00 Bore (In) 1.88 Flange Height (In) 0.75 Material 304SS Ships Within 3-5 Days See more QF50-200-HNM-0.75	DN50ISO-QF	2.00	1.88	0.75	304SS	3-5 Days	$22.20	Starting at: $22.20	PRICE QTY $22.20
QF50-200-HNM-0.75-AL	Flange Size DN50ISO-QF Nom. Tube OD (In) 2.00 Bore (In) 1.88 Flange Height (In) 0.75 Material 6061-T6 Aluminum Ships Within 3-5 Days See more QF50-200-HNM-0.75-AL	DN50ISO-QF	2.00	1.88	0.75	6061-T6 Aluminum	3-5 Days	$25.00	Starting at: $25.00	PRICE QTY $25.00
LF63-250-HNM-1.50-AL	Flange Size DN63ISO-LF Nom. Tube OD (In) 2.50 Bore (In) 1.50 Flange Height (In) 2.25 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF63-250-HNM-1.50-AL	DN63ISO-LF	2.50	1.50	2.25	6061-T6 Aluminum	3-5 Days	$65.00	Starting at: $65.00	PRICE QTY $65.00
LF80-300-HNM-1.50-AL	Flange Size DN80ISO-LF Nom. Tube OD (In) 3.00 Bore (In) 1.50 Flange Height (In) 2.75 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF80-300-HNM-1.50-AL	DN80ISO-LF	3.00	1.50	2.75	6061-T6 Aluminum	3-5 Days	$84.00	Starting at: $84.00	PRICE QTY $84.00
LF100-400-HNM-1.50-AL	Flange Size DN100ISO-LF Nom. Tube OD (In) 4.00 Bore (In) 1.50 Flange Height (In) 3.75 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF100-400-HNM-1.50-AL	DN100ISO-LF	4.00	1.50	3.75	6061-T6 Aluminum	3-5 Days	$87.00	Starting at: $87.00	PRICE QTY $87.00
LF160-600-HNM-1.50-AL	Flange Size DN160ISO-LF Nom. Tube OD (In) 6.00 Bore (In) 1.50 Flange Height (In) 5.75 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF160-600-HNM-1.50-AL	DN160ISO-LF	6.00	1.50	5.75	6061-T6 Aluminum	3-5 Days	$120.50	Starting at: $120.50	PRICE QTY $120.50
LF200-800-HNM-1.50-AL	Flange Size DN200ISO-LF Nom. Tube OD (In) 8.00 Bore (In) 1.50 Flange Height (In) 7.76 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF200-800-HNM-1.50-AL	DN200ISO-LF	8.00	1.50	7.76	6061-T6 Aluminum	3-5 Days	$190.00	Starting at: $190.00	PRICE QTY $190.00
LF250-1000-HNM-1.50-AL	Flange Size DN250ISO-LF Nom. Tube OD (In) 10.00 Bore (In) 1.50 Flange Height (In) 9.75 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF250-1000-HNM-1.50-AL	DN250ISO-LF	10.00	1.50	9.75	6061-T6 Aluminum	3-5 Days	$255.00	Starting at: $255.00	PRICE QTY $255.00
