ISO Centering Ring Assemblies - Aluminum

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

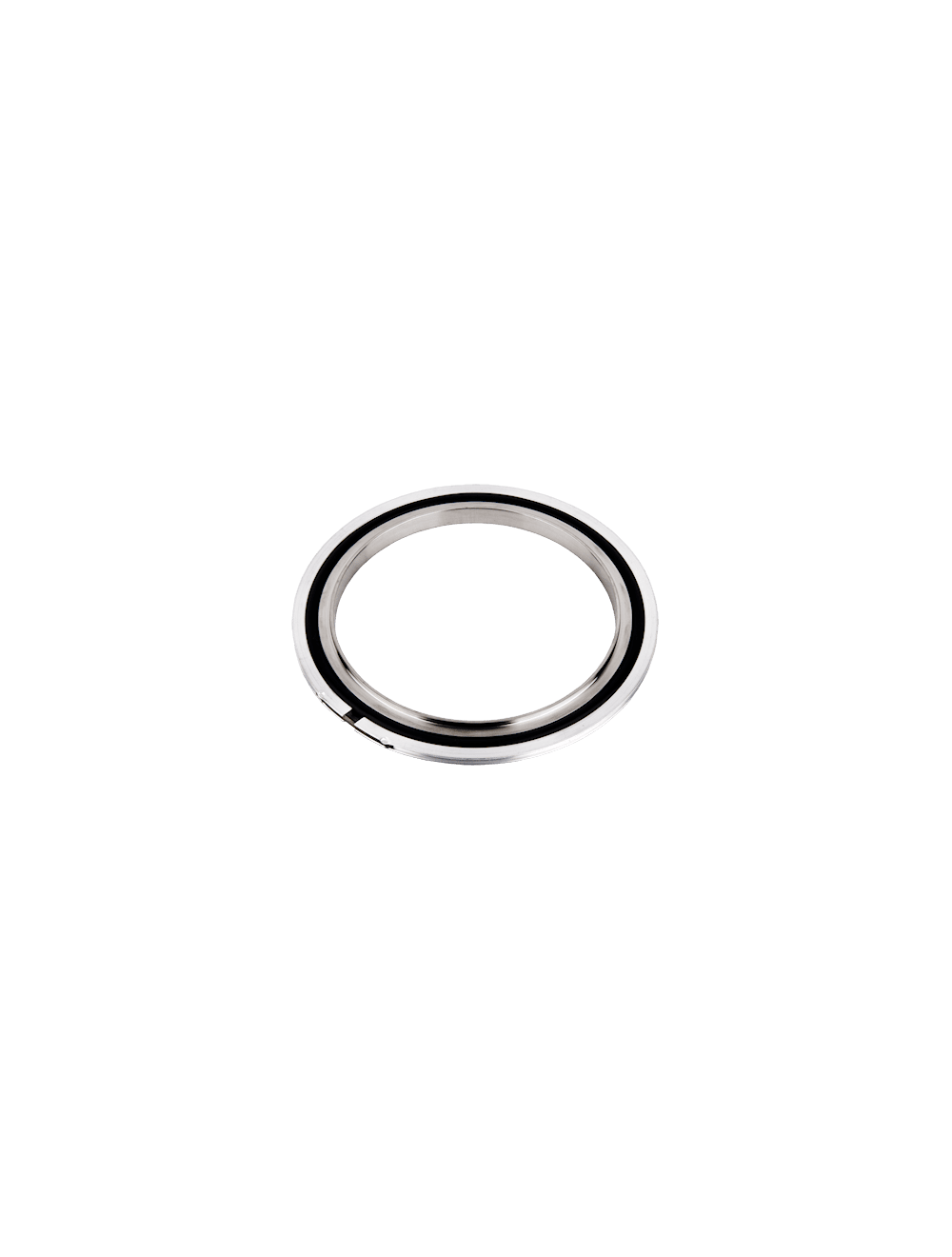

The Centering Ring Aluminum Assemblies has a metal and o-ring structure that is placed between two ISO flange components. This centering allows for a better seal that can withstand a high vacuum environment.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

The centering ring is manufactured of T6061 Aluminum
O-Ring Options: Fluorocarbon (FKM), Silcone (VMQ), and Nitrile (NBR)
Perfluoroelastomer (FFKM) O-Rings can be ordered on request

Sort By

Grouped product items
PART NUMBER	Flange Size	Ring ID (in)	Ring Height (in)	Ring Material	Material	Ships Within	PRICE	ADD TO CART
QF16-075-CTR-AL-VT	Flange Size DN16ISO-QF Ring ID (in) 0.63 Ring Height (in) 0.21 Ring Material FKM Material 6061-T6 Aluminum Ships Within 3-5 Days See more QF16-075-CTR-AL-VT	DN16ISO-QF	0.63	0.21	FKM	6061-T6 Aluminum	3-5 Days	$7.00	Starting at: $7.00	PRICE QTY $7.00
QF16-075-CTR-AL-BN	Flange Size DN16ISO-QF Ring ID (in) 0.63 Ring Height (in) 0.21 Ring Material Buna-N Material 6061-T6 Aluminum Ships Within 3-5 Days See more QF16-075-CTR-AL-BN	DN16ISO-QF	0.63	0.21	Buna-N	6061-T6 Aluminum	3-5 Days	$3.75	Starting at: $3.75	PRICE QTY $3.75
QF25-100-CTR-AL-BN	Flange Size DN25ISO-QF Ring ID (in) 0.98 Ring Height (in) 0.21 Ring Material Buna-N Material 6061-T6 Aluminum Ships Within 3-5 Days See more QF25-100-CTR-AL-BN	DN25ISO-QF	0.98	0.21	Buna-N	6061-T6 Aluminum	3-5 Days	$5.00	Starting at: $5.00	PRICE QTY $5.00
QF25-100-CTR-AL-VT	Flange Size DN25ISO-QF Ring ID (in) 0.98 Ring Height (in) 0.21 Ring Material FKM Material 6061-T6 Aluminum Ships Within 3-5 Days See more QF25-100-CTR-AL-VT	DN25ISO-QF	0.98	0.21	FKM	6061-T6 Aluminum	3-5 Days	$8.15	Starting at: $8.15	PRICE QTY $8.15
QF40-150-CTR-AL-BN	Flange Size DN40ISO-QF Ring ID (in) 1.53 Ring Height (in) 0.21 Ring Material Buna-N Material 6061-T6 Aluminum Ships Within 3-5 Days See more QF40-150-CTR-AL-BN	DN40ISO-QF	1.53	0.21	Buna-N	6061-T6 Aluminum	3-5 Days	$7.00	Starting at: $7.00	PRICE QTY $7.00
QF40-150-CTR-AL-VT	Flange Size DN40ISO-QF Ring ID (in) 1.53 Ring Height (in) 0.21 Ring Material FKM Material 6061-T6 Aluminum Ships Within 3-5 Days See more QF40-150-CTR-AL-VT	DN40ISO-QF	1.53	0.21	FKM	6061-T6 Aluminum	3-5 Days	$11.35	Starting at: $11.35	PRICE QTY $11.35
QF50-200-CTR-AL-VT	Flange Size DN50ISO-QF Ring ID (in) 1.97 Ring Height (in) 0.21 Ring Material FKM Material 6061-T6 Aluminum Ships Within 3-5 Days See more QF50-200-CTR-AL-VT	DN50ISO-QF	1.97	0.21	FKM	6061-T6 Aluminum	3-5 Days	$14.25	Starting at: $14.25	PRICE QTY $14.25
LF63-250-CTR-AL-VT	Flange Size DN63ISO-LF Ring ID (in) 2.64 Ring Height (in) 0.15 Ring Material FKM Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF63-250-CTR-AL-VT	DN63ISO-LF	2.64	0.15	FKM	6061-T6 Aluminum	3-5 Days	$32.00	Starting at: $32.00	PRICE QTY $32.00
LF100-400-CTR-AL-VT	Flange Size DN100ISO-LF Ring ID (in) 3.90 Ring Height (in) 0.15 Ring Material FKM Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF100-400-CTR-AL-VT	DN100ISO-LF	3.90	0.15	FKM	6061-T6 Aluminum	3-5 Days	$36.25	Starting at: $36.25	PRICE QTY $36.25
LF160-600-CTR-AL-VT	Flange Size DN160ISO-LF Ring ID (in) 5.91 Ring Height (in) 0.15 Ring Material FKM Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF160-600-CTR-AL-VT	DN160ISO-LF	5.91	0.15	FKM	6061-T6 Aluminum	3-5 Days	$48.00	Starting at: $48.00	PRICE QTY $48.00
LF200-800-CTR-AL-VT	Flange Size DN200ISO-LF Ring ID (in) 8.27 Ring Height (in) 0.15 Ring Material FKM Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF200-800-CTR-AL-VT	DN200ISO-LF	8.27	0.15	FKM	6061-T6 Aluminum	3-5 Days	$67.00	Starting at: $67.00	PRICE QTY $67.00
LF250-1000-CTR-AL-VT	Flange Size DN250ISO-LF Ring ID (in) 10.14 Ring Height (in) 0.15 Ring Material FKM Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF250-1000-CTR-AL-VT	DN250ISO-LF	10.14	0.15	FKM	6061-T6 Aluminum	3-5 Days	$85.00	Starting at: $85.00	PRICE QTY $85.00
LF500-2000-CTR-AL-VT	Flange Size DN500ISO-LF Ring ID (in) 19.41 Ring Height (in) 0.22 Ring Material FKM Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF500-2000-CTR-AL-VT	DN500ISO-LF	19.41	0.22	FKM	6061-T6 Aluminum	3-5 Days	$539.80	Starting at: $539.80	PRICE QTY $539.80
QF50-200-CTR-AL-BN	Flange Size DN50ISO-QF Ring ID (in) 1.97 Ring Height (in) 0.21 Ring Material Buna-N Material 6061-T6 Aluminum Ships Within 3-5 Days See more QF50-200-CTR-AL-BN	DN50ISO-QF	1.97	0.21	Buna-N	6061-T6 Aluminum	3-5 Days	$8.55	Starting at: $8.55	PRICE QTY $8.55
LF63-250-CTR-AL-BN	Flange Size DN63ISO-LF Ring ID (in) 2.65 Ring Height (in) 0.15 Ring Material Buna-N Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF63-250-CTR-AL-BN	DN63ISO-LF	2.65	0.15	Buna-N	6061-T6 Aluminum	3-5 Days	$28.50	Starting at: $28.50	PRICE QTY $28.50
LF100-400-CTR-AL-BN	Flange Size DN100ISO-LF Ring ID (in) 3.90 Ring Height (in) 0.15 Ring Material Buna-N Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF100-400-CTR-AL-BN	DN100ISO-LF	3.90	0.15	Buna-N	6061-T6 Aluminum	3-5 Days	$35.00	Starting at: $35.00	PRICE QTY $35.00
LF320-1200-CTR-AL-VT	Flange Size DN320ISO-LF Ring ID (in) 12.28 Ring Height (in) 0.22 Ring Material FKM Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF320-1200-CTR-AL-VT	DN320ISO-LF	12.28	0.22	FKM	6061-T6 Aluminum	3-5 Days	$128.00	Starting at: $128.00	PRICE QTY $128.00
LF160-600-CTR-AL-BN	Flange Size DN160ISO-LF Ring ID (in) 5.91 Ring Height (in) 0.15 Ring Material Buna-N Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF160-600-CTR-AL-BN	DN160ISO-LF	5.91	0.15	Buna-N	6061-T6 Aluminum	3-5 Days	$43.00	Starting at: $43.00	PRICE QTY $43.00
LF200-800-CTR-AL-BN	Flange Size DN200ISO-LF Ring ID (in) 8.27 Ring Height (in) 0.15 Ring Material Buna-N Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF200-800-CTR-AL-BN	DN200ISO-LF	8.27	0.15	Buna-N	6061-T6 Aluminum	3-5 Days	$56.00	Starting at: $56.00	PRICE QTY $56.00
LF400-1600-CTR-AL-VT	Flange Size DN400ISO-LF Ring ID (in) 15.42 Ring Height (in) 0.22 Ring Material FKM Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF400-1600-CTR-AL-VT	DN400ISO-LF	15.42	0.22	FKM	6061-T6 Aluminum	3-5 Days	$400.00	Starting at: $400.00	PRICE QTY $400.00
