ISO QF Adaptive Centering Ring Assemblies

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

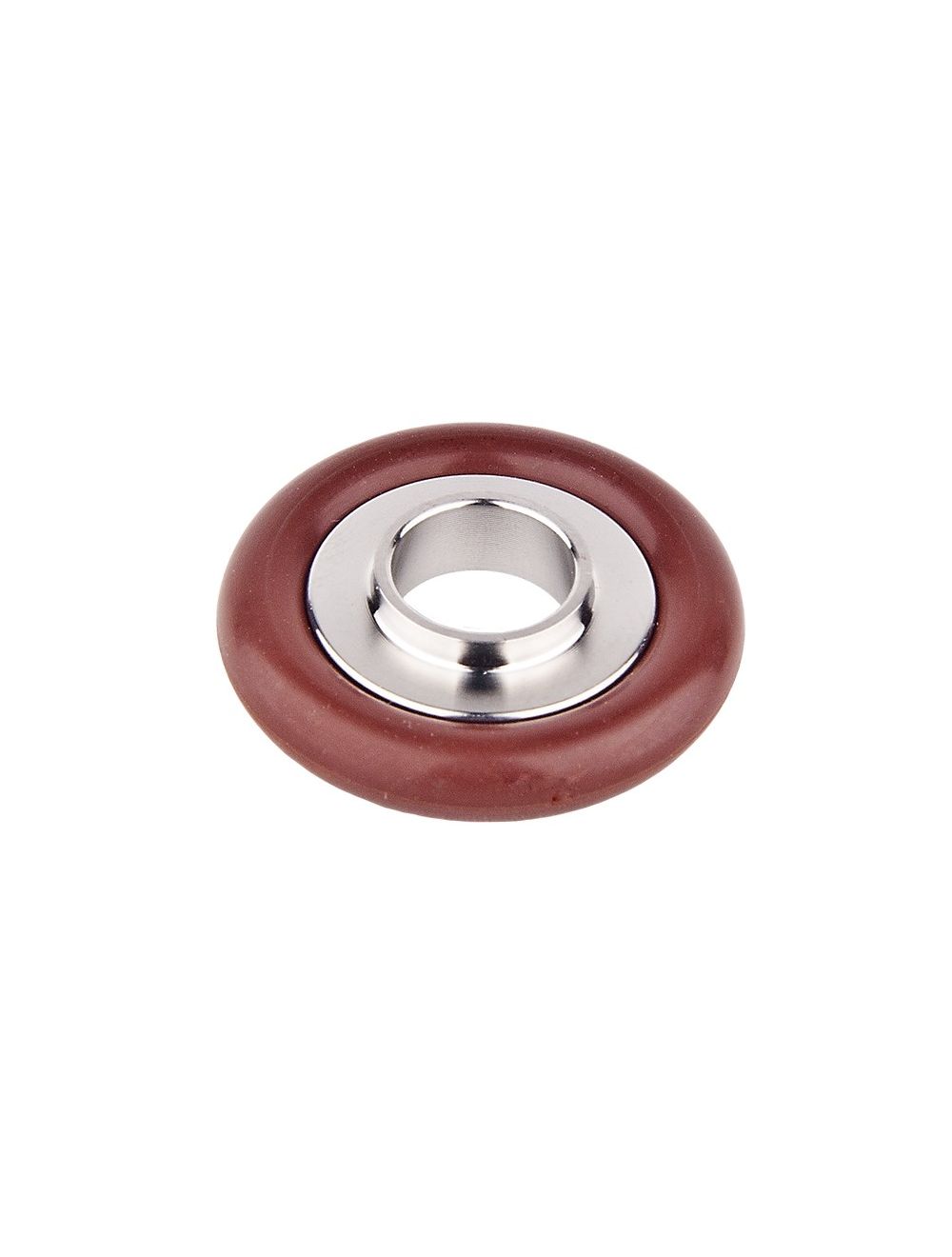

The ISO-QF (KF) Adaptive centering ring is a one-piece design that allows your to connect uncommon sizes (QF10,20,32) to sizes such as QF16, 25, and 40. The centering ring is constructed of 316 stainless steel and a fluorocarbon (fkm) outer o-ring comes standard. Additionally, these centering rings can be ordered with alternative o-ring compounds such as nitrile (NBR) and silicone (VMQ).

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

Centering Ring: 316 Stainless Steel (Standard)
Fluorocarbon (FKM) Standard O-Ring; Silicone (VMQ) and Nitrile (NBR) are alternatives
High Vacuum Rated

Sort By

Grouped product items
PART NUMBER	Flange Size	ISO-QF Flange OD (in)	ISO-QF Flange OD 2 (in)	Ring ID (in)	Material	Ships Within	PRICE	ADD TO CART
QF10/16-ACR-VT	Flange Size DN16ISO-QF ISO-QF Flange OD (in) 0.70 ISO-QF Flange OD 2 (in) 0.47 Ring ID (in) 0.39 Material 304SS Ships Within 3-5 Days See more QF10/16-ACR-VT	DN16ISO-QF	0.70	0.47	0.39	304SS	3-5 Days	$11.75	Starting at: $11.75	PRICE QTY $11.75
QF20/25-ACR-VT	Flange Size DN25ISO-QF ISO-QF Flange OD (in) 1.02 ISO-QF Flange OD 2 (in) 0.87 Ring ID (in) 0.81 Material 304SS Ships Within 3-5 Days See more QF20/25-ACR-VT	DN25ISO-QF	1.02	0.87	0.81	304SS	3-5 Days	$12.00	Starting at: $12.00	PRICE QTY $12.00
QF32/40-ACR-VT	Flange Size DN40ISO-QF ISO-QF Flange OD (in) 1.61 ISO-QF Flange OD 2 (in) 1.34 Ring ID (in) 1.26 Material 304SS Ships Within 3-5 Days See more QF32/40-ACR-VT	DN40ISO-QF	1.61	1.34	1.26	304SS	3-5 Days	$21.70	Starting at: $21.70	PRICE QTY $21.70
