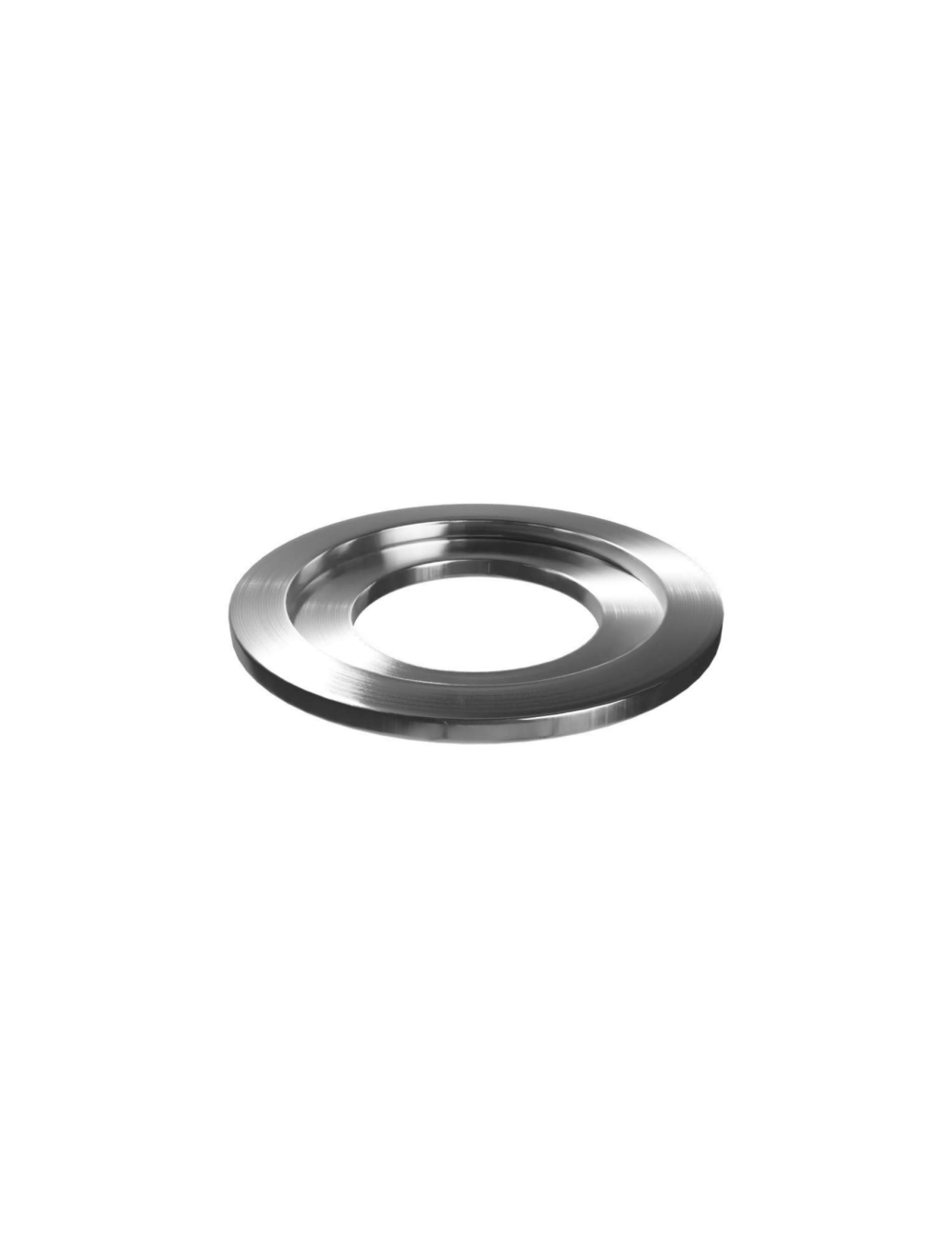

ISO-QF (KF) Bored Weld Flange

Skip to the beginning of the images gallery

ISO-QF (KF) Bored Weld Flange

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

The ISO-QF Bored Weld flanges are manufactured in 304 and 316 stainless steel. QF flanges are sexless, infinitely rotatable, and fastened with quick clamps that compress an elastomer O-Ring held in a centering ring between two flange faces to create a high vacuum seal.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits:

Fits standard ISO flanges style
Manufactured from 304 Stainless Steel
Fit standard inch tubing outer diameter

Sort By

Grouped product items
PART NUMBER	Flange Size	Flange OD (In)	Counter Bore (in)	Bore (In)	Setback (In)	Material	Ships Within	PRICE	ADD TO CART
QF16-025-BW	Flange Size DN16ISO-QF Flange OD (In) 1.18 Counter Bore (in) - Bore (In) 0.26 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF16-025-BW	DN16ISO-QF	1.18	-	0.26	0.15	304SS	3-5 Days	$8.75	Starting at: $8.75	PRICE QTY $8.75
QF16-038-BW	Flange Size DN16ISO-QF Flange OD (In) 1.18 Counter Bore (in) - Bore (In) 0.38 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF16-038-BW	DN16ISO-QF	1.18	-	0.38	0.15	304SS	3-5 Days	$9.50	Starting at: $9.50	PRICE QTY $9.50
QF16-050-BW	Flange Size DN16ISO-QF Flange OD (In) 1.18 Counter Bore (in) 0.51 Bore (In) 0.45 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF16-050-BW	DN16ISO-QF	1.18	0.51	0.45	0.15	304SS	3-5 Days	$12.50	Starting at: $12.50	PRICE QTY $12.50
QF16-075-BW	Flange Size DN16ISO-QF Flange OD (In) 1.18 Counter Bore (in) 0.76 Bore (In) 0.68 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF16-075-BW	DN16ISO-QF	1.18	0.76	0.68	0.15	304SS	3-5 Days	$10.20	Starting at: $10.20	PRICE QTY $10.20
QF25-025-BW	Flange Size DN25ISO-QF Flange OD (In) 1.57 Counter Bore (in) - Bore (In) 0.26 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF25-025-BW	DN25ISO-QF	1.57	-	0.26	0.15	304SS	3-5 Days	$10.50	Starting at: $10.50	PRICE QTY $10.50
QF25-038-BW	Flange Size DN25ISO-QF Flange OD (In) 1.57 Counter Bore (in) - Bore (In) 0.38 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF25-038-BW	DN25ISO-QF	1.57	-	0.38	0.15	304SS	3-5 Days	$10.00	Starting at: $10.00	PRICE QTY $10.00
QF25-050-BW	Flange Size DN25ISO-QF Flange OD (In) 1.57 Counter Bore (in) 0.51 Bore (In) 0.45 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF25-050-BW	DN25ISO-QF	1.57	0.51	0.45	0.15	304SS	3-5 Days	$11.50	Starting at: $11.50	PRICE QTY $11.50
QF25-075-BW	Flange Size DN25ISO-QF Flange OD (In) 1.57 Counter Bore (in) 0.76 Bore (In) 0.71 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF25-075-BW	DN25ISO-QF	1.57	0.76	0.71	0.15	304SS	3-5 Days	$10.00	Starting at: $10.00	PRICE QTY $10.00
QF25-100-BW	Flange Size DN25ISO-QF Flange OD (In) 1.57 Counter Bore (in) 1.01 Bore (In) 0.94 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF25-100-BW	DN25ISO-QF	1.57	1.01	0.94	0.15	304SS	3-5 Days	$12.50	Starting at: $12.50	PRICE QTY $12.50
QF40-025-BW	Flange Size DN40ISO-QF Flange OD (In) 2.16 Counter Bore (in) - Bore (In) 0.26 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF40-025-BW	DN40ISO-QF	2.16	-	0.26	0.15	304SS	3-5 Days	$23.00	Starting at: $23.00	PRICE QTY $23.00
QF40-038-BW	Flange Size DN40ISO-QF Flange OD (In) 2.16 Counter Bore (in) - Bore (In) 0.38 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF40-038-BW	DN40ISO-QF	2.16	-	0.38	0.15	304SS	3-5 Days	$14.50	Starting at: $14.50	PRICE QTY $14.50
QF40-050-BW	Flange Size DN40ISO-QF Flange OD (In) 2.16 Counter Bore (in) 0.51 Bore (In) 0.45 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF40-050-BW	DN40ISO-QF	2.16	0.51	0.45	0.15	304SS	3-5 Days	$14.50	Starting at: $14.50	PRICE QTY $14.50
QF40-075-BW	Flange Size DN40ISO-QF Flange OD (In) 2.16 Counter Bore (in) 0.76 Bore (In) 0.71 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF40-075-BW	DN40ISO-QF	2.16	0.76	0.71	0.15	304SS	3-5 Days	$14.50	Starting at: $14.50	PRICE QTY $14.50
QF40-100-BW	Flange Size DN40ISO-QF Flange OD (In) 2.16 Counter Bore (in) 1.01 Bore (In) 0.94 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF40-100-BW	DN40ISO-QF	2.16	1.01	0.94	0.15	304SS	3-5 Days	$14.50	Starting at: $14.50	PRICE QTY $14.50
QF40-150-BW	Flange Size DN40ISO-QF Flange OD (In) 2.16 Counter Bore (in) 1.51 Bore (In) 1.44 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF40-150-BW	DN40ISO-QF	2.16	1.51	1.44	0.15	304SS	3-5 Days	$19.80	Starting at: $19.80	PRICE QTY $19.80
QF50-025-BW	Flange Size DN50ISO-QF Flange OD (In) 2.95 Counter Bore (in) - Bore (In) 0.26 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF50-025-BW	DN50ISO-QF	2.95	-	0.26	0.15	304SS	3-5 Days	$18.75	Starting at: $18.75	PRICE QTY $18.75
QF50-038-BW	Flange Size DN50ISO-QF Flange OD (In) 2.95 Counter Bore (in) - Bore (In) 0.38 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF50-038-BW	DN50ISO-QF	2.95	-	0.38	0.15	304SS	3-5 Days	$21.50	Starting at: $21.50	PRICE QTY $21.50
QF50-050-BW	Flange Size DN50ISO-QF Flange OD (In) 2.95 Counter Bore (in) 0.51 Bore (In) 0.45 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF50-050-BW	DN50ISO-QF	2.95	0.51	0.45	0.15	304SS	3-5 Days	$19.50	Starting at: $19.50	PRICE QTY $19.50
QF50-075-BW	Flange Size DN50ISO-QF Flange OD (In) 2.95 Counter Bore (in) 0.76 Bore (In) 0.71 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF50-075-BW	DN50ISO-QF	2.95	0.76	0.71	0.15	304SS	3-5 Days	$19.50	Starting at: $19.50	PRICE QTY $19.50
QF50-100-BW	Flange Size DN50ISO-QF Flange OD (In) 2.95 Counter Bore (in) 1.01 Bore (In) 0.94 Setback (In) 0.15 Material 304SS Ships Within 3-5 Days See more QF50-100-BW	DN50ISO-QF	2.95	1.01	0.94	0.15	304SS	3-5 Days	$19.50	Starting at: $19.50	PRICE QTY $19.50
