Bulkhead Clamp

Skip to the beginning of the images gallery

Bulkhead Clamp

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

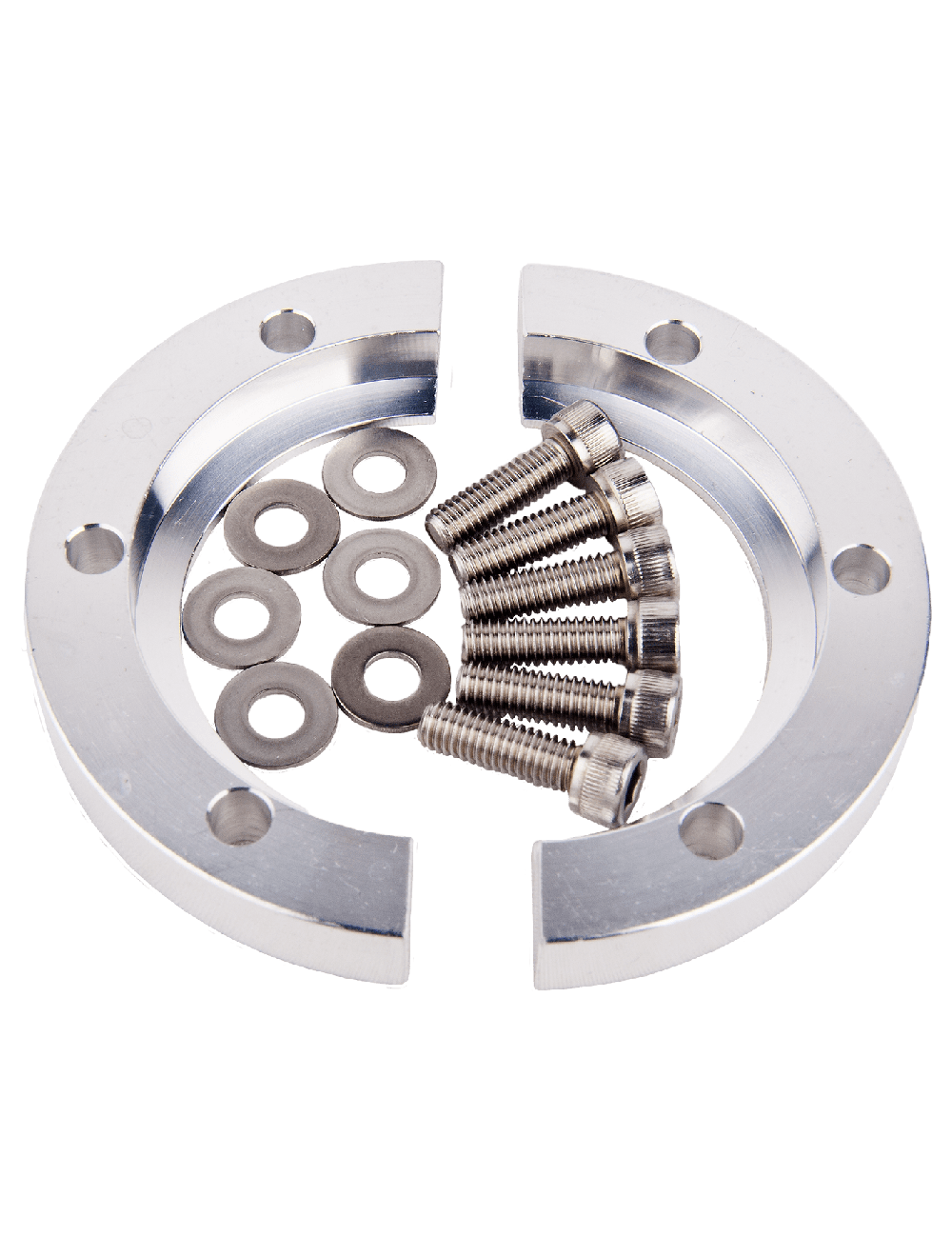

The bulkhead clamp is designed to attached to various parts of the chamber system such as a valve, baseplates, a vacuum chamber. The bolt pattern must be identical for this component to work on a vacuum chamber, the bolt size is 10/32 5/8".

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

High Vacuum Rated
Fits all ISO-QF flanges & fittings
Bolt Size: 10-32 5/8"

Sort By

Grouped product items
PART NUMBER	Flange Size	Bulkhead Thickness (In)	Bulkhead OD (In)	Bulkhead ID (In)	Number of Bolt Holes	Material	Ships Within	PRICE	ADD TO CART
QF10/16-BHC	Flange Size DN16ISO-QF Bulkhead Thickness (In) 0.36 Bulkhead OD (In) 2.00 Bulkhead ID (In) 1.500 Number of Bolt Holes 6 Material 304SS Ships Within 3-5 Days See more QF10/16-BHC	DN16ISO-QF	0.36	2.00	1.500	6	304SS	3-5 Days	$23.50	Starting at: $23.50	PRICE QTY $23.50
QF25-BHC	Flange Size DN25ISO-QF Bulkhead Thickness (In) 0.39 Bulkhead OD (In) 2.38 Bulkhead ID (In) 1.890 Number of Bolt Holes 6 Material 304SS Ships Within 3-5 Days See more QF25-BHC	DN25ISO-QF	0.39	2.38	1.890	6	304SS	3-5 Days	$24.50	Starting at: $24.50	PRICE QTY $24.50
QF40-BHC	Flange Size DN40ISO-QF Bulkhead Thickness (In) 0.37 Bulkhead OD (In) 2.94 Bulkhead ID (In) 2.440 Number of Bolt Holes 6 Material 304SS Ships Within 3-5 Days See more QF40-BHC	DN40ISO-QF	0.37	2.94	2.440	6	304SS	3-5 Days	$28.00	Starting at: $28.00	PRICE QTY $28.00
QF50-BHC	Flange Size DN50ISO-QF Bulkhead Thickness (In) 0.40 Bulkhead OD (In) 3.75 Bulkhead ID (In) 3.250 Number of Bolt Holes 8 Material 304SS Ships Within 3-5 Days See more QF50-BHC	DN50ISO-QF	0.40	3.75	3.250	8	304SS	3-5 Days	$35.00	Starting at: $35.00	PRICE QTY $35.00
