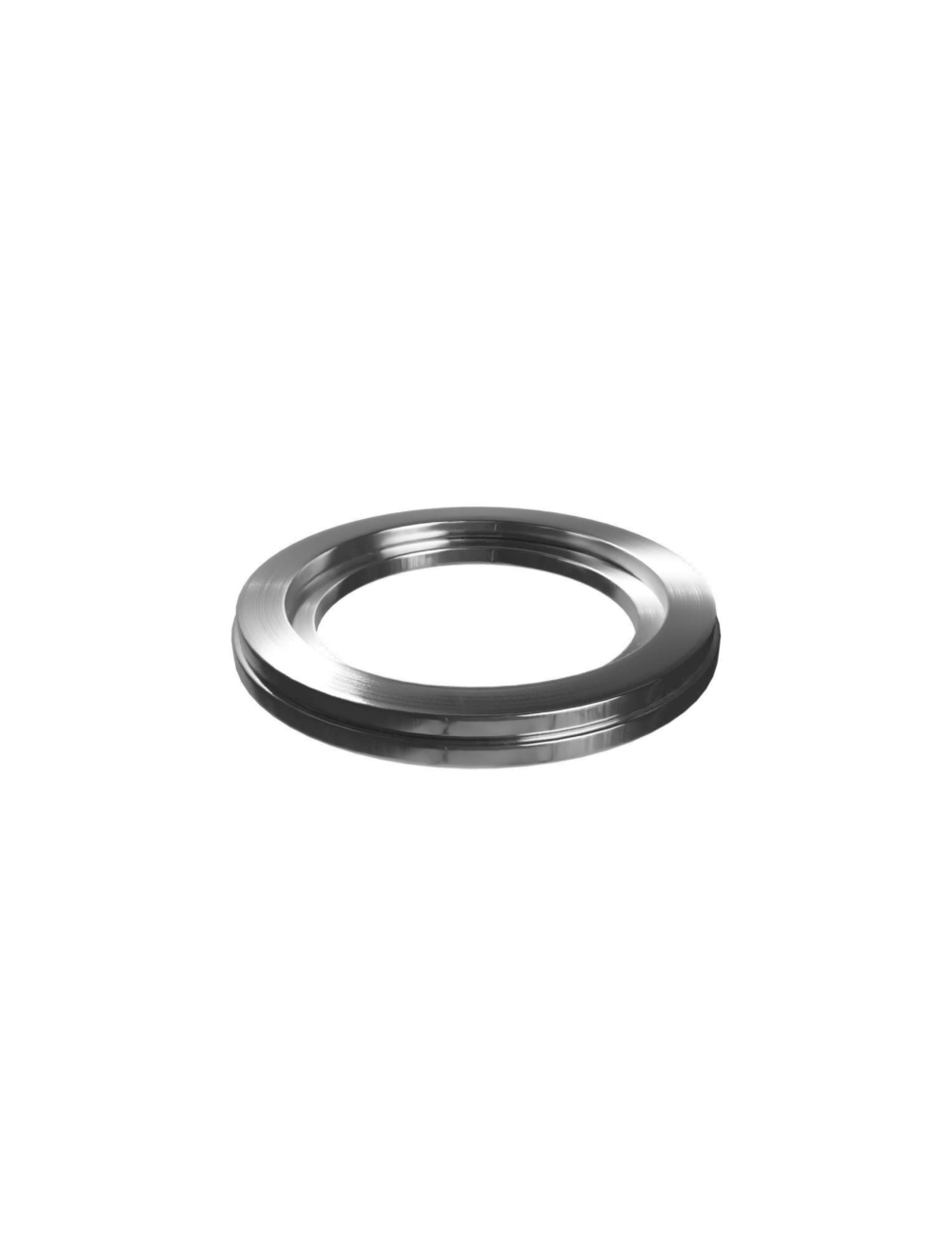

ISO-LF (K) Bored Weld Flange

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

The ISO flange (also called Large ISO) is used for HV chamber ports and uses clamp fasteners. Each flange face is counter-bored or grooved to receive a metal centering ring with an elastomeric o-ring around its O.D. As with KF, the ISO centering ring both aligns the flanges and holds the o-ring in place. ISO flanges are limited (by the o-ring's properties) to applications with temperatures between ~0° C and 120–180° C, and pressure from atmosphere to ~10-8 torr or mbar.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits:

Compatible with all ISO standard vacuum flanges and fittings
Internal Weld
Self-Aligning
Designed to fit standard inch tubing O.D.'s

Specifications:
- High Vacuum Rated to 1×10^-8 Torr
- Bakeable to 200°C

Sort By

Grouped product items
PART NUMBER	Flange Size	Flange OD (In)	Nom. Tube OD (In)	Bore (In)	Counter Bore (In)	Material	Ships Within	PRICE	ADD TO CART
LF63-250-SF	Flange Size DN63ISO-LF Flange OD (In) 3.74 Nom. Tube OD (In) 2.50 Bore (In) 2.37 Counter Bore (In) 2.51 Material 304SS Ships Within 3-5 Days See more LF63-250-SF	DN63ISO-LF	3.74	2.50	2.37	2.51	304SS	3-5 Days	$62.00	Starting at: $62.00	PRICE QTY $62.00
LF63-250-SF-AL	Flange Size DN63ISO-LF Flange OD (In) 3.74 Nom. Tube OD (In) 2.50 Bore (In) 2.37 Counter Bore (In) 2.51 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF63-250-SF-AL	DN63ISO-LF	3.74	2.50	2.37	2.51	6061-T6 Aluminum	3-5 Days	$47.50	Starting at: $47.50	PRICE QTY $47.50
LF80-300-SF	Flange Size DN80ISO-LF Flange OD (In) 4.33 Nom. Tube OD (In) 3.00 Bore (In) 2.87 Counter Bore (In) 3.01 Material 304SS Ships Within 3-5 Days See more LF80-300-SF	DN80ISO-LF	4.33	3.00	2.87	3.01	304SS	3-5 Days	$73.50	Starting at: $73.50	PRICE QTY $73.50
LF80-300-SF-AL	Flange Size DN80ISO-LF Flange OD (In) 4.33 Nom. Tube OD (In) 3.00 Bore (In) 2.87 Counter Bore (In) 3.01 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF80-300-SF-AL	DN80ISO-LF	4.33	3.00	2.87	3.01	6061-T6 Aluminum	3-5 Days	$60.00	Starting at: $60.00	PRICE QTY $60.00
LF100-400-SF	Flange Size DN100ISO-LF Flange OD (In) 5.12 Nom. Tube OD (In) 4.00 Bore (In) 3.87 Counter Bore (In) 4.01 Material 304SS Ships Within 3-5 Days See more LF100-400-SF	DN100ISO-LF	5.12	4.00	3.87	4.01	304SS	3-5 Days	$85.00	Starting at: $85.00	PRICE QTY $85.00
LF100-400-SF-AL	Flange Size DN100ISO-LF Flange OD (In) 5.12 Nom. Tube OD (In) 4.00 Bore (In) 3.87 Counter Bore (In) 4.02 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF100-400-SF-AL	DN100ISO-LF	5.12	4.00	3.87	4.02	6061-T6 Aluminum	3-5 Days	$66.00	Starting at: $66.00	PRICE QTY $66.00
LF160-600-SF	Flange Size DN160ISO-LF Flange OD (In) 7.09 Nom. Tube OD (In) 6.00 Bore (In) 5.83 Counter Bore (In) 6.02 Material 304SS Ships Within 3-5 Days See more LF160-600-SF	DN160ISO-LF	7.09	6.00	5.83	6.02	304SS	3-5 Days	$118.50	Starting at: $118.50	PRICE QTY $118.50
LF160-600-SF-AL	Flange Size DN160ISO-LF Flange OD (In) 7.09 Nom. Tube OD (In) 6.00 Bore (In) 5.83 Counter Bore (In) 6.02 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF160-600-SF-AL	DN160ISO-LF	7.09	6.00	5.83	6.02	6061-T6 Aluminum	3-5 Days	$110.00	Starting at: $110.00	PRICE QTY $110.00
LF200-800-SF	Flange Size DN200ISO-LF Flange OD (In) 9.45 Nom. Tube OD (In) 8.00 Bore (In) 7.76 Counter Bore (In) 8.02 Material 304SS Ships Within 3-5 Days See more LF200-800-SF	DN200ISO-LF	9.45	8.00	7.76	8.02	304SS	3-5 Days	$185.00	Starting at: $185.00	PRICE QTY $185.00
LF200-800-SF-AL	Flange Size DN200ISO-LF Flange OD (In) 9.45 Nom. Tube OD (In) 8.00 Bore (In) 7.76 Counter Bore (In) 8.02 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF200-800-SF-AL	DN200ISO-LF	9.45	8.00	7.76	8.02	6061-T6 Aluminum	3-5 Days	$165.00	Starting at: $165.00	PRICE QTY $165.00
LF250-1000-SF	Flange Size DN250ISO-LF Flange OD (In) 11.42 Nom. Tube OD (In) 10.00 Bore (In) 9.75 Counter Bore (In) 10.02 Material 304SS Ships Within 3-5 Days See more LF250-1000-SF	DN250ISO-LF	11.42	10.00	9.75	10.02	304SS	3-5 Days	$295.00	Starting at: $295.00	PRICE QTY $295.00
LF250-1000-SF-AL	Flange Size DN250ISO-LF Flange OD (In) 11.42 Nom. Tube OD (In) 10.00 Bore (In) 9.75 Counter Bore (In) 10.03 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF250-1000-SF-AL	DN250ISO-LF	11.42	10.00	9.75	10.03	6061-T6 Aluminum	3-5 Days	$192.50	Starting at: $192.50	PRICE QTY $192.50
LF320-1275-SF	Flange Size DN320ISO-LF Flange OD (In) 14.57 Nom. Tube OD (In) 12.75 Bore (In) 12.42 Counter Bore (In) 12.77 Material 304SS Ships Within 3-5 Days See more LF320-1275-SF	DN320ISO-LF	14.57	12.75	12.42	12.77	304SS	3-5 Days	$570.00	Starting at: $570.00	PRICE QTY $570.00
