ISO-LF (K) Blank Flanges

Skip to the beginning of the images gallery

ISO-LF (K) Blank Flanges

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

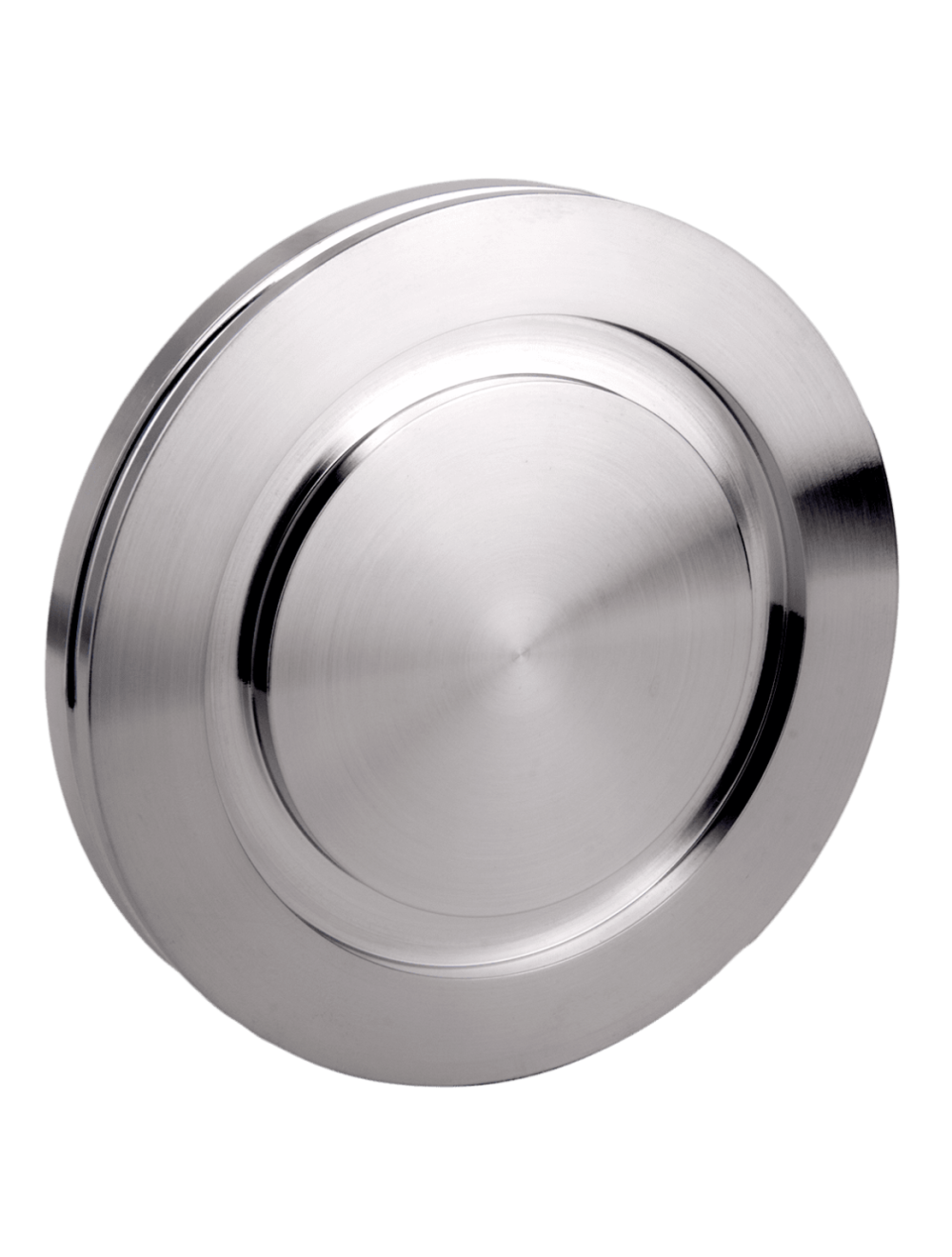

The ISO-LF (KF) Blank Flange is an ISO standard sized flanges that attaches onto a other components in the ISO family. ISO Blank flanges connect using clamps and withstand a vacuum environment of 1×10-8 Torr (High Vacuum).

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits:

Fits all ISO-LF components, Not ISO-LFB compatible
Temperature Range: -200C up to 450C
Flange Height: .47"

Sort By

Grouped product items
PART NUMBER	Flange Size	Flange OD (In)	Nom. Tube ID (In)	Min. Number of Clamps	Material	Ships Within	PRICE	ADD TO CART
LF63-000	Flange Size DN63ISO-LF Flange OD (In) 3.74 Nom. Tube ID (In) 2.50 Min. Number of Clamps 3 Material 304SS Ships Within 3-5 Days See more LF63-000	DN63ISO-LF	3.74	2.50	3	304SS	3-5 Days	$61.00	Starting at: $61.00	PRICE QTY $61.00
LF63-000-AL	Flange Size DN63ISO-LF Flange OD (In) 3.74 Nom. Tube ID (In) 2.50 Min. Number of Clamps 3 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF63-000-AL	DN63ISO-LF	3.74	2.50	3	6061-T6 Aluminum	3-5 Days	$44.00	Starting at: $44.00	PRICE QTY $44.00
LF80-000-AL	Flange Size DN80ISO-LF Flange OD (In) 4.33 Nom. Tube ID (In) 3.00 Min. Number of Clamps 4 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF80-000-AL	DN80ISO-LF	4.33	3.00	4	6061-T6 Aluminum	3-5 Days	$58.00	Starting at: $58.00	PRICE QTY $58.00
LF80-000	Flange Size DN80ISO-LF Flange OD (In) 4.33 Nom. Tube ID (In) 3.00 Min. Number of Clamps 4 Material 304SS Ships Within 3-5 Days See more LF80-000	DN80ISO-LF	4.33	3.00	4	304SS	3-5 Days	$80.00	Starting at: $80.00	PRICE QTY $80.00
LF100-000	Flange Size DN100ISO-LF Flange OD (In) 5.12 Nom. Tube ID (In) 4.00 Min. Number of Clamps 4 Material 304SS Ships Within 3-5 Days See more LF100-000	DN100ISO-LF	5.12	4.00	4	304SS	3-5 Days	$92.00	Starting at: $92.00	PRICE QTY $92.00
LF100-000-AL	Flange Size DN100ISO-LF Flange OD (In) 5.12 Nom. Tube ID (In) 4.00 Min. Number of Clamps 4 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF100-000-AL	DN100ISO-LF	5.12	4.00	4	6061-T6 Aluminum	3-5 Days	$65.00	Starting at: $65.00	PRICE QTY $65.00
LF160-000	Flange Size DN160ISO-LF Flange OD (In) 7.09 Nom. Tube ID (In) 6.00 Min. Number of Clamps 4 Material 304SS Ships Within 3-5 Days See more LF160-000	DN160ISO-LF	7.09	6.00	4	304SS	3-5 Days	$120.00	Starting at: $120.00	PRICE QTY $120.00
LF160-000-AL	Flange Size DN160ISO-LF Flange OD (In) 7.09 Nom. Tube ID (In) 6.00 Min. Number of Clamps 4 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF160-000-AL	DN160ISO-LF	7.09	6.00	4	6061-T6 Aluminum	3-5 Days	$110.00	Starting at: $110.00	PRICE QTY $110.00
LF200-000	Flange Size DN200ISO-LF Flange OD (In) 9.45 Nom. Tube ID (In) 8.00 Min. Number of Clamps 6 Material 304SS Ships Within 3-5 Days See more LF200-000	DN200ISO-LF	9.45	8.00	6	304SS	3-5 Days	$220.00	Starting at: $220.00	PRICE QTY $220.00
LF200-000-AL	Flange Size DN200ISO-LF Flange OD (In) 9.45 Nom. Tube ID (In) 8.00 Min. Number of Clamps 6 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF200-000-AL	DN200ISO-LF	9.45	8.00	6	6061-T6 Aluminum	3-5 Days	$144.00	Starting at: $144.00	PRICE QTY $144.00
LF250-000	Flange Size DN250ISO-LF Flange OD (In) 11.42 Nom. Tube ID (In) 10.00 Min. Number of Clamps 6 Material 304SS Ships Within 3-5 Days See more LF250-000	DN250ISO-LF	11.42	10.00	6	304SS	3-5 Days	$350.00	Starting at: $350.00	PRICE QTY $350.00
LF250-000-AL	Flange Size DN250ISO-LF Flange OD (In) 11.42 Nom. Tube ID (In) 10.00 Min. Number of Clamps 6 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF250-000-AL	DN250ISO-LF	11.42	10.00	6	6061-T6 Aluminum	3-5 Days	$180.00	Starting at: $180.00	PRICE QTY $180.00
LF320-000	Flange Size DN320ISO-LF Flange OD (In) 14.57 Nom. Tube ID (In) 12.75 Min. Number of Clamps 8 Material 304SS Ships Within 3-5 Days See more LF320-000	DN320ISO-LF	14.57	12.75	8	304SS	3-5 Days	$605.00	Starting at: $605.00	PRICE QTY $605.00
LF320-000-AL	Flange Size DN320ISO-LF Flange OD (In) 14.57 Nom. Tube ID (In) 12.75 Min. Number of Clamps 8 Material 6061-T6 Aluminum Ships Within 3-5 Days See more LF320-000-AL	DN320ISO-LF	14.57	12.75	8	6061-T6 Aluminum	3-5 Days	$340.00	Starting at: $340.00	PRICE QTY $340.00
