CF Tee, Reducing

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

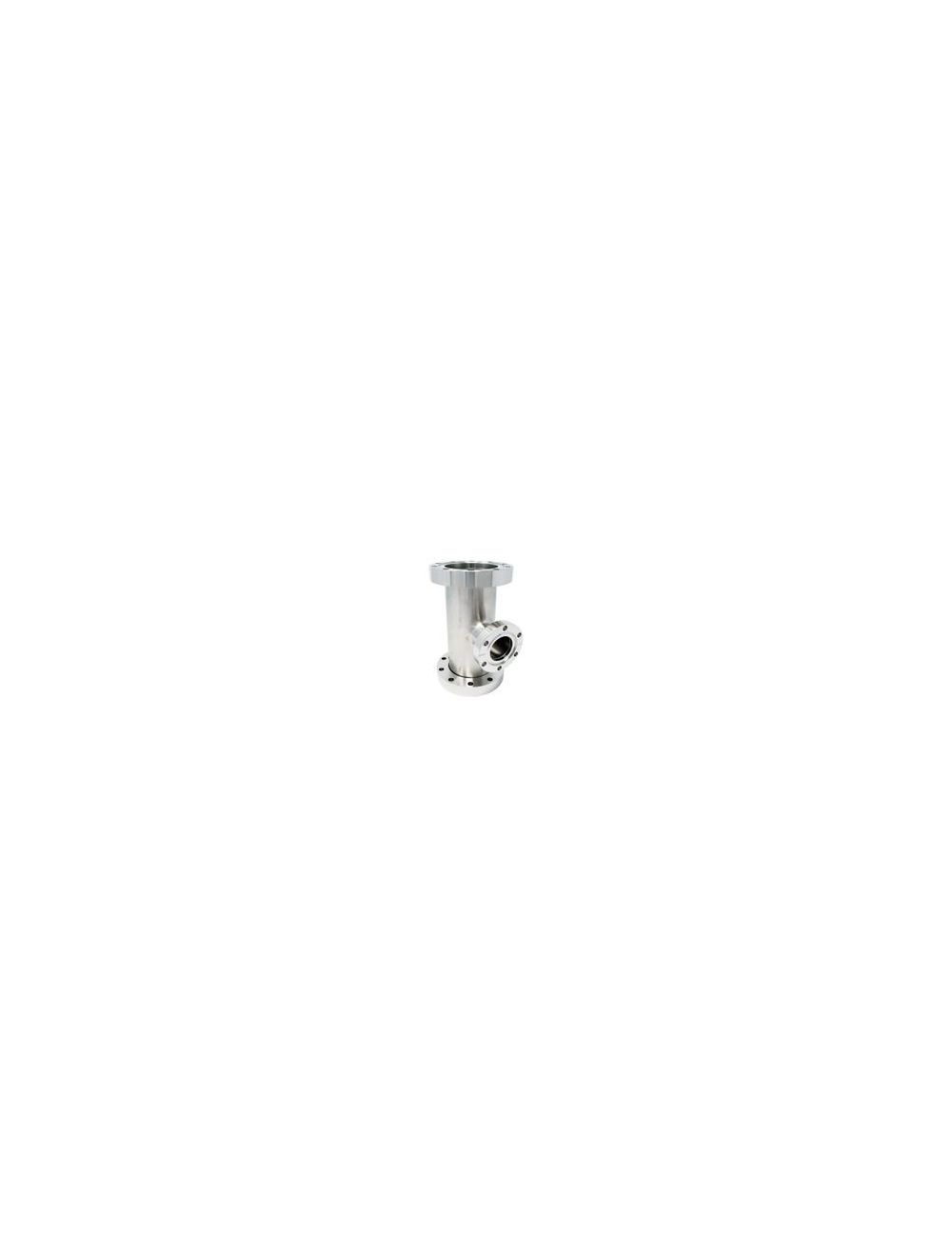

The ConFlat (CF) tees are manufactured CF flanges on all 3 ends and is designed in a T shape. Reducing tees allow you to connect different ConFlat (CF) flanges sizes in one vacuum system. These tees can withstand a High and Ultra High Vacuum environment.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

Manufactured from 304 Stainless Steel
ConFlat (CF) to ConFlat (CF) flange type
OD Polish

Sort By

Grouped product items
PART NUMBER	Flange Size (F1&2)	CF Flange 1&2 Size	Flange Size (F3)	CF Flange 3 OD (in)	Flange Tube OD (In) (F1&2)	Flange Tube OD (In) (F3)	Port Length (In) (A)	Port Length (In) (B)	Material	Ships Within	PRICE	ADD TO CART
CF275XCF133-150X075-RDT-2.46X1.87	Flange Size (F1&2) DN40CF CF Flange 1&2 Size 2.75 Flange Size (F3) DN16CF CF Flange 3 OD (in) 1.33 Flange Tube OD (In) (F1&2) 1.50 Flange Tube OD (In) (F3) 0.75 Port Length (In) (A) 2.46 Port Length (In) (B) 1.87 Material 304SS Ships Within 3-5 Days See more CF275XCF133-150X075-RDT-2.46X1.87	DN40CF	2.75	DN16CF	1.33	1.50	0.75	2.46	1.87	304SS	3-5 Days	$165.00	Starting at: $165.00	PRICE QTY $165.00
CF275XCF212-150X100-RDT-2.46X2.30	Flange Size (F1&2) DN40CF CF Flange 1&2 Size 2.75 Flange Size (F3) DN25CF CF Flange 3 OD (in) 2.12 Flange Tube OD (In) (F1&2) 1.50 Flange Tube OD (In) (F3) 1.00 Port Length (In) (A) 2.46 Port Length (In) (B) 2.29 Material 304SS Ships Within 3-5 Days See more CF275XCF212-150X100-RDT-2.46X2.30	DN40CF	2.75	DN25CF	2.12	1.50	1.00	2.46	2.29	304SS	3-5 Days	$175.00	Starting at: $175.00	PRICE QTY $175.00
CF338XCF133-200X075-RDT-3.22X2.12	Flange Size (F1&2) DN50CF CF Flange 1&2 Size 3.38 Flange Size (F3) DN16CF CF Flange 3 OD (in) 1.33 Flange Tube OD (In) (F1&2) 2.00 Flange Tube OD (In) (F3) 0.75 Port Length (In) (A) 3.22 Port Length (In) (B) 2.13 Material 304SS Ships Within 3-5 Days See more CF338XCF133-200X075-RDT-3.22X2.12	DN50CF	3.38	DN16CF	1.33	2.00	0.75	3.22	2.13	304SS	3-5 Days	$338.50	Starting at: $338.50	PRICE QTY $338.50
CF338XCF275-200X150-RDT-3.22X2.71	Flange Size (F1&2) DN50CF CF Flange 1&2 Size 3.38 Flange Size (F3) DN40CF CF Flange 3 OD (in) 2.75 Flange Tube OD (In) (F1&2) 2.00 Flange Tube OD (In) (F3) 1.50 Port Length (In) (A) 3.22 Port Length (In) (B) 2.71 Material 304SS Ships Within 3-5 Days See more CF338XCF275-200X150-RDT-3.22X2.71	DN50CF	3.38	DN40CF	2.75	2.00	1.50	3.22	2.71	304SS	3-5 Days	$400.00	Starting at: $400.00	PRICE QTY $400.00
CF450XCF275-250X150-RDT-3.38X2.96	Flange Size (F1&2) DN63CF CF Flange 1&2 Size 4.50 Flange Size (F3) DN40CF CF Flange 3 OD (in) 2.75 Flange Tube OD (In) (F1&2) 2.50 Flange Tube OD (In) (F3) 1.50 Port Length (In) (A) 3.38 Port Length (In) (B) 2.96 Material 304SS Ships Within 3-5 Days See more CF450XCF275-250X150-RDT-3.38X2.96	DN63CF	4.50	DN40CF	2.75	2.50	1.50	3.38	2.96	304SS	3-5 Days	$415.00	Starting at: $415.00	PRICE QTY $415.00
CF450XCF338-250X200-RDT-3.38X3.48	Flange Size (F1&2) DN63CF CF Flange 1&2 Size 4.50 Flange Size (F3) DN50CF CF Flange 3 OD (in) 3.38 Flange Tube OD (In) (F1&2) 2.50 Flange Tube OD (In) (F3) 2.00 Port Length (In) (A) 3.38 Port Length (In) (B) 3.48 Material 304SS Ships Within 3-5 Days See more CF450XCF338-250X200-RDT-3.38X3.48	DN63CF	4.50	DN50CF	3.38	2.50	2.00	3.38	3.48	304SS	3-5 Days	$400.00	Starting at: $400.00	PRICE QTY $400.00
CF462XCF338-300X200-RDT-3.63X3.73	Flange Size (F1&2) DN75CF CF Flange 1&2 Size 4.62 Flange Size (F3) DN50CF CF Flange 3 OD (in) 3.38 Flange Tube OD (In) (F1&2) 3.00 Flange Tube OD (In) (F3) 2.00 Port Length (In) (A) 3.63 Port Length (In) (B) 3.73 Material 304SS Ships Within 3-5 Days See more CF462XCF338-300X200-RDT-3.63X3.73	DN75CF	4.62	DN50CF	3.38	3.00	2.00	3.63	3.73	304SS	3-5 Days	$465.00	Starting at: $465.00	PRICE QTY $465.00
CF462XCF450-300X250-RDT-3.63X3.63	Flange Size (F1&2) DN75CF CF Flange 1&2 Size 4.62 Flange Size (F3) DN63CF CF Flange 3 OD (in) 4.50 Flange Tube OD (In) (F1&2) 3.00 Flange Tube OD (In) (F3) 2.50 Port Length (In) (A) 3.63 Port Length (In) (B) 3.63 Material 304SS Ships Within 3-5 Days See more CF462XCF450-300X250-RDT-3.63X3.63	DN75CF	4.62	DN63CF	4.50	3.00	2.50	3.63	3.63	304SS	3-5 Days	$485.00	Starting at: $485.00	PRICE QTY $485.00
CF600XCF275-400X150-RDT-4.32X3.71	Flange Size (F1&2) DN100CF CF Flange 1&2 Size 6.00 Flange Size (F3) DN40CF CF Flange 3 OD (in) 2.75 Flange Tube OD (In) (F1&2) 4.00 Flange Tube OD (In) (F3) 1.50 Port Length (In) (A) 4.32 Port Length (In) (B) 3.71 Material 304SS Ships Within 3-5 Days See more CF600XCF275-400X150-RDT-4.32X3.71	DN100CF	6.00	DN40CF	2.75	4.00	1.50	4.32	3.71	304SS	3-5 Days	$620.00	Starting at: $620.00	PRICE QTY $620.00
CF600XCF338-400X200-RDT-4.32X4.23	Flange Size (F1&2) DN100CF CF Flange 1&2 Size 6.00 Flange Size (F3) DN50CF CF Flange 3 OD (in) 3.38 Flange Tube OD (In) (F1&2) 4.00 Flange Tube OD (In) (F3) 2.00 Port Length (In) (A) 4.32 Port Length (In) (B) 4.23 Material 304SS Ships Within 3-5 Days See more CF600XCF338-400X200-RDT-4.32X4.23	DN100CF	6.00	DN50CF	3.38	4.00	2.00	4.32	4.23	304SS	3-5 Days	$600.00	Starting at: $600.00	PRICE QTY $600.00
CF600XCF450-400X250-RDT-4.32X4.13	Flange Size (F1&2) DN100CF CF Flange 1&2 Size 6.00 Flange Size (F3) DN63CF CF Flange 3 OD (in) 4.50 Flange Tube OD (In) (F1&2) 4.00 Flange Tube OD (In) (F3) 2.50 Port Length (In) (A) 4.32 Port Length (In) (B) 4.13 Material 304SS Ships Within 3-5 Days See more CF600XCF450-400X250-RDT-4.32X4.13	DN100CF	6.00	DN63CF	4.50	4.00	2.50	4.32	4.13	304SS	3-5 Days	$700.00	Starting at: $700.00	PRICE QTY $700.00
CF600XCF462-400X300-RDT-4.32X4.13	Flange Size (F1&2) DN100CF CF Flange 1&2 Size 6.00 Flange Size (F3) DN75CF CF Flange 3 OD (in) 4.62 Flange Tube OD (In) (F1&2) 4.00 Flange Tube OD (In) (F3) 3.00 Port Length (In) (A) 4.32 Port Length (In) (B) 4.13 Material 304SS Ships Within 3-5 Days See more CF600XCF462-400X300-RDT-4.32X4.13	DN100CF	6.00	DN75CF	4.62	4.00	3.00	4.32	4.13	304SS	3-5 Days	$675.00	Starting at: $675.00	PRICE QTY $675.00
CF675XCF600-500X400-RDT-4.82X4.71	Flange Size (F1&2) DN125CF CF Flange 1&2 Size 6.75 Flange Size (F3) DN100CF CF Flange 3 OD (in) 6.00 Flange Tube OD (In) (F1&2) 5.00 Flange Tube OD (In) (F3) 4.00 Port Length (In) (A) 4.71 Port Length (In) (B) 4.82 Material 304SS Ships Within 3-5 Days See more CF675XCF600-500X400-RDT-4.82X4.71	DN125CF	6.75	DN100CF	6.00	5.00	4.00	4.71	4.82	304SS	3-5 Days	$905.00	Starting at: $905.00	PRICE QTY $905.00
CF800XCF275-600X150-RDT-5.50X4.71	Flange Size (F1&2) DN160CF CF Flange 1&2 Size 8.00 Flange Size (F3) DN40CF CF Flange 3 OD (in) 2.75 Flange Tube OD (In) (F1&2) 6.00 Flange Tube OD (In) (F3) 1.50 Port Length (In) (A) 5.50 Port Length (In) (B) 4.71 Material 304SS Ships Within 3-5 Days See more CF800XCF275-600X150-RDT-5.50X4.71	DN160CF	8.00	DN40CF	2.75	6.00	1.50	5.50	4.71	304SS	3-5 Days	$825.00	Starting at: $825.00	PRICE QTY $825.00
CF800XCF338-600X200-RDT-5.50X5.23	Flange Size (F1&2) DN160CF CF Flange 1&2 Size 8.00 Flange Size (F3) DN50CF CF Flange 3 OD (in) 3.38 Flange Tube OD (In) (F1&2) 6.00 Flange Tube OD (In) (F3) 2.00 Port Length (In) (A) 5.50 Port Length (In) (B) 5.23 Material 304SS Ships Within 3-5 Days See more CF800XCF338-600X200-RDT-5.50X5.23	DN160CF	8.00	DN50CF	3.38	6.00	2.00	5.50	5.23	304SS	3-5 Days	$850.00	Starting at: $850.00	PRICE QTY $850.00
CF800XCF450-600X250-RDT-5.50X5.13	Flange Size (F1&2) DN160CF CF Flange 1&2 Size 8.00 Flange Size (F3) DN63CF CF Flange 3 OD (in) 4.50 Flange Tube OD (In) (F1&2) 6.00 Flange Tube OD (In) (F3) 2.50 Port Length (In) (A) 5.50 Port Length (In) (B) 5.13 Material 304SS Ships Within 3-5 Days See more CF800XCF450-600X250-RDT-5.50X5.13	DN160CF	8.00	DN63CF	4.50	6.00	2.50	5.50	5.13	304SS	3-5 Days	$885.00	Starting at: $885.00	PRICE QTY $885.00
CF800XCF600-600X250-RDT-5.50X5.32	Flange Size (F1&2) DN160CF CF Flange 1&2 Size 8.00 Flange Size (F3) DN100CF CF Flange 3 OD (in) 6.00 Flange Tube OD (In) (F1&2) 6.00 Flange Tube OD (In) (F3) 4.00 Port Length (In) (A) 5.50 Port Length (In) (B) 5.32 Material 304SS Ships Within 3-5 Days See more CF800XCF600-600X250-RDT-5.50X5.32	DN160CF	8.00	DN100CF	6.00	6.00	4.00	5.50	5.32	304SS	3-5 Days	$945.50	Starting at: $945.50	PRICE QTY $945.50
CF1000XCF800-800X600-RDT-7.50X7.50	Flange Size (F1&2) DN200CF CF Flange 1&2 Size 10.00 Flange Size (F3) DN160CF CF Flange 3 OD (in) 8.00 Flange Tube OD (In) (F1&2) 8.00 Flange Tube OD (In) (F3) 6.00 Port Length (In) (A) 7.50 Port Length (In) (B) 7.50 Material 304SS Ships Within 3-5 Days See more CF1000XCF800-800X600-RDT-7.50X7.50	DN200CF	10.00	DN160CF	8.00	8.00	6.00	7.50	7.50	304SS	3-5 Days	$1,700.00	Starting at: $1,700.00	PRICE QTY $1,700.00
