CF Reducer Nipple, Straight

Skip to the beginning of the images gallery

CF Reducer Nipple, Straight

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

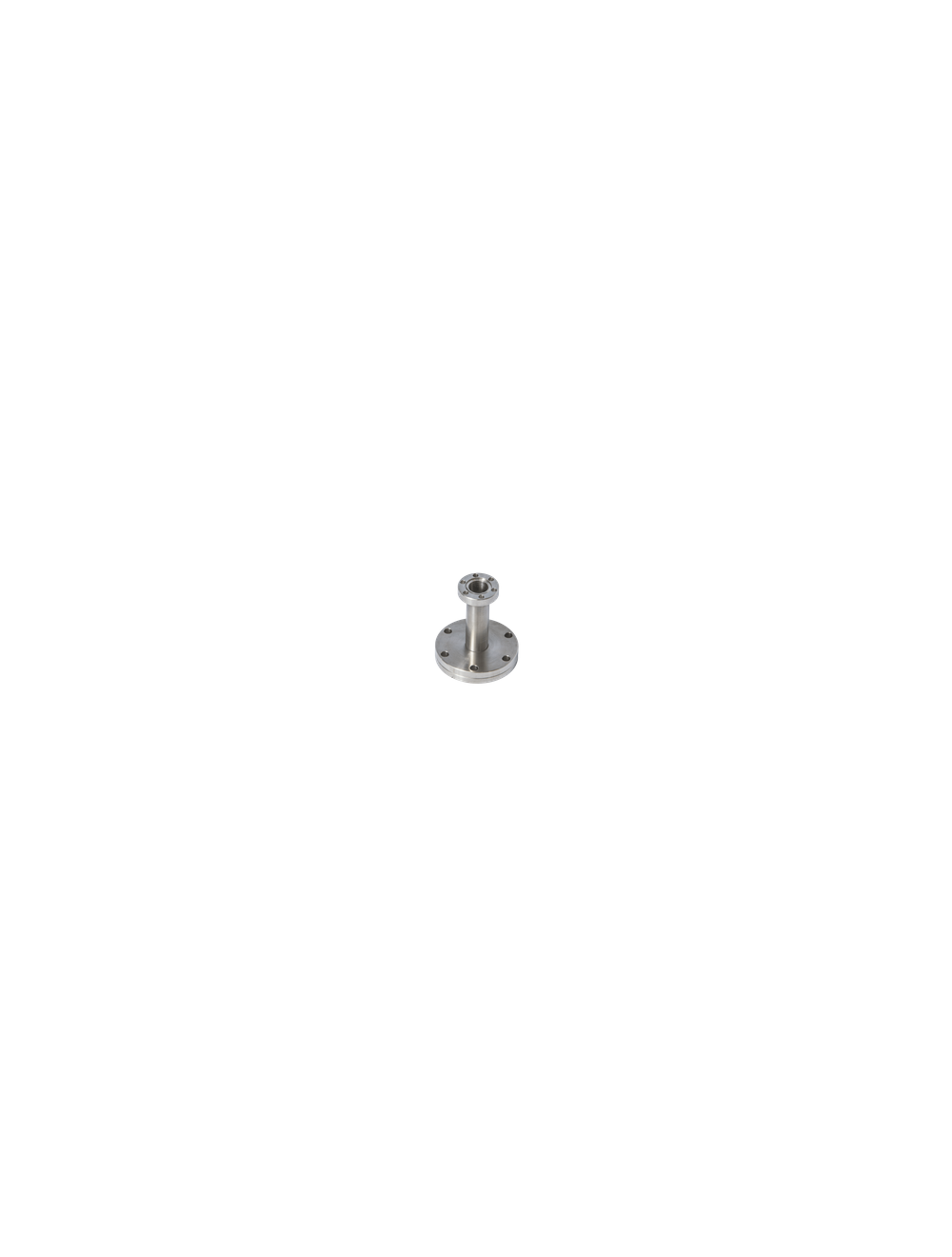

The ConFlat (CF) Straight Reducer Nipple is manufactured with different ConFlat (CF) flange sizes on each side. The smaller side of this nipple is a rotatable flange. These nipples are manufactured from 304 stainless steel and can be ordered in other materials.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

ConFlat (CF) to ConFlat (CF) Flange Nipple
304 Stainless Steel
Straight Reducer
Small Flange is Rotatable

Sort By

Grouped product items
PART NUMBER	F1 Flange Size	CF Flange 1 OD (In)	F2 Flange Size	CF Flange OD 2 (In)	Flange Tube OD (in)	Nipple Length (In)	Material	Ships Within	PRICE	ADD TO CART
CF275XCF133R-075-N-2.50	F1 Flange Size DN40CF CF Flange 1 OD (In) 2.75 F2 Flange Size DN16CF CF Flange OD 2 (In) 1.33 Flange Tube OD (in) 0.75 Nipple Length (In) 2.50 Material 304SS Ships Within 3-5 Days See more CF275XCF133R-075-N-2.50	DN40CF	2.75	DN16CF	1.33	0.75	2.50	304SS	3-5 Days	$84.70	Starting at: $84.70	PRICE QTY $84.70
CF338XCF275R-150-N-2.50	F1 Flange Size DN50CF CF Flange 1 OD (In) 3.38 F2 Flange Size DN40CF CF Flange OD 2 (In) 2.75 Flange Tube OD (in) 1.50 Nipple Length (In) 2.50 Material 304SS Ships Within 3-5 Days See more CF338XCF275R-150-N-2.50	DN50CF	3.38	DN40CF	2.75	1.50	2.50	304SS	3-5 Days	$135.00	Starting at: $135.00	PRICE QTY $135.00
CF450XCF275R-150-N-2.50	F1 Flange Size DN63CF CF Flange 1 OD (In) 4.50 F2 Flange Size DN40CF CF Flange OD 2 (In) 2.75 Flange Tube OD (in) 1.50 Nipple Length (In) 2.50 Material 304SS Ships Within 3-5 Days See more CF450XCF275R-150-N-2.50	DN63CF	4.50	DN40CF	2.75	1.50	2.50	304SS	3-5 Days	$165.00	Starting at: $165.00	PRICE QTY $165.00
CF600XCF275R-150-N-5.00	F1 Flange Size DN100CF CF Flange 1 OD (In) 6.00 F2 Flange Size DN40CF CF Flange OD 2 (In) 2.75 Flange Tube OD (in) 1.50 Nipple Length (In) 5.00 Material 304SS Ships Within 3-5 Days See more CF600XCF275R-150-N-5.00	DN100CF	6.00	DN40CF	2.75	1.50	5.00	304SS	3-5 Days	$285.00	Starting at: $285.00	PRICE QTY $285.00
CF600XCF450R-250-N-5.00	F1 Flange Size DN100CF CF Flange 1 OD (In) 6.00 F2 Flange Size DN63CF CF Flange OD 2 (In) 4.50 Flange Tube OD (in) 2.50 Nipple Length (In) 5.00 Material 304SS Ships Within 3-5 Days See more CF600XCF450R-250-N-5.00	DN100CF	6.00	DN63CF	4.50	2.50	5.00	304SS	3-5 Days	$340.00	Starting at: $340.00	PRICE QTY $340.00
CF800XCF275R-150-N-5.00	F1 Flange Size DN160CF CF Flange 1 OD (In) 8.00 F2 Flange Size DN40CF CF Flange OD 2 (In) 2.75 Flange Tube OD (in) 1.50 Nipple Length (In) 5.00 Material 304SS Ships Within 3-5 Days See more CF800XCF275R-150-N-5.00	DN160CF	8.00	DN40CF	2.75	1.50	5.00	304SS	3-5 Days	$415.00	Starting at: $415.00	PRICE QTY $415.00
CF800XCF450R-250-N-5.00	F1 Flange Size DN160CF CF Flange 1 OD (In) 8.00 F2 Flange Size DN63CF CF Flange OD 2 (In) 4.50 Flange Tube OD (in) 2.50 Nipple Length (In) 5.00 Material 304SS Ships Within 3-5 Days See more CF800XCF450R-250-N-5.00	DN160CF	8.00	DN63CF	4.50	2.50	5.00	304SS	3-5 Days	$500.00	Starting at: $500.00	PRICE QTY $500.00
CF800XCF600R-400-N-5.00	F1 Flange Size DN160CF CF Flange 1 OD (In) 8.00 F2 Flange Size DN100CF CF Flange OD 2 (In) 6.00 Flange Tube OD (in) 4.00 Nipple Length (In) 5.00 Material 304SS Ships Within 3-5 Days See more CF800XCF600R-400-N-5.00	DN160CF	8.00	DN100CF	6.00	4.00	5.00	304SS	3-5 Days	$410.00	Starting at: $410.00	PRICE QTY $410.00
CF1000XCF275R-150-N-5.00	F1 Flange Size DN200CF CF Flange 1 OD (In) 10.00 F2 Flange Size DN40CF CF Flange OD 2 (In) 2.75 Flange Tube OD (in) 1.50 Nipple Length (In) 5.00 Material 304SS Ships Within 3-5 Days See more CF1000XCF275R-150-N-5.00	DN200CF	10.00	DN40CF	2.75	1.50	5.00	304SS	3-5 Days	$635.00	Starting at: $635.00	PRICE QTY $635.00
CF1000XCF450R-250-N-5.00	F1 Flange Size DN200CF CF Flange 1 OD (In) 10.00 F2 Flange Size DN63CF CF Flange OD 2 (In) 4.50 Flange Tube OD (in) 2.50 Nipple Length (In) 5.00 Material 304SS Ships Within 3-5 Days See more CF1000XCF450R-250-N-5.00	DN200CF	10.00	DN63CF	4.50	2.50	5.00	304SS	3-5 Days	$655.00	Starting at: $655.00	PRICE QTY $655.00
CF1000XCF600R-400-N-5.00	F1 Flange Size DN200CF CF Flange 1 OD (In) 10.00 F2 Flange Size DN100CF CF Flange OD 2 (In) 6.00 Flange Tube OD (in) 4.00 Nipple Length (In) 5.00 Material 304SS Ships Within 3-5 Days See more CF1000XCF600R-400-N-5.00	DN200CF	10.00	DN100CF	6.00	4.00	5.00	304SS	3-5 Days	$730.00	Starting at: $730.00	PRICE QTY $730.00
CF1000XCF800R-600-N-5.00	F1 Flange Size DN200CF CF Flange 1 OD (In) 10.00 F2 Flange Size DN160CF CF Flange OD 2 (In) 8.00 Flange Tube OD (in) 6.00 Nipple Length (In) 5.00 Material 304SS Ships Within 3-5 Days See more CF1000XCF800R-600-N-5.00	DN200CF	10.00	DN160CF	8.00	6.00	5.00	304SS	3-5 Days	$845.00	Starting at: $845.00	PRICE QTY $845.00
CF1325XCF1000R-800-N-5.00	F1 Flange Size DN275CF CF Flange 1 OD (In) 13.25 F2 Flange Size DN200CF CF Flange OD 2 (In) 10.00 Flange Tube OD (in) 8.00 Nipple Length (In) 5.00 Material 304SS Ships Within 3-5 Days See more CF1325XCF1000R-800-N-5.00	DN275CF	13.25	DN200CF	10.00	8.00	5.00	304SS	3-5 Days	$1,175.00	Starting at: $1,175.00	PRICE QTY $1,175.00
CF1400XCF1200R-1000-N-5.00	F1 Flange Size DN300CF CF Flange 1 OD (In) 14.00 F2 Flange Size DN250CF CF Flange OD 2 (In) 12.00 Flange Tube OD (in) 10.00 Nipple Length (In) 5.00 Material 304SS Ships Within 3-5 Days See more CF1400XCF1200R-1000-N-5.00	DN300CF	14.00	DN250CF	12.00	10.00	5.00	304SS	3-5 Days	$1,450.00	Starting at: $1,450.00	PRICE QTY $1,450.00
