CF Nipple

Skip to the beginning of the images gallery

CF Nipple

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

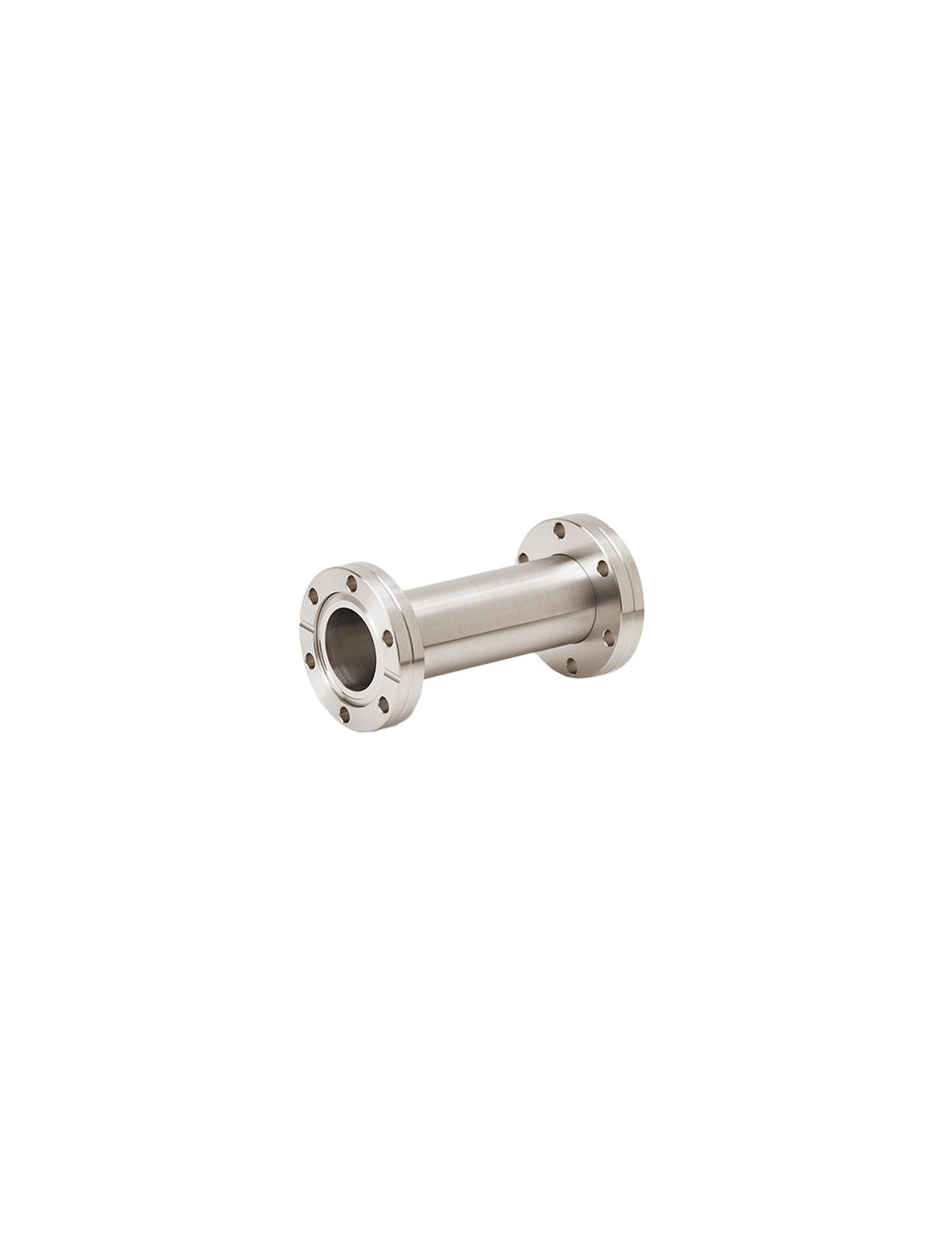

ConFlat (CF) Nipples are a one-piece design with two identical flanges on each end. Nipples are deisgned to attached other vacuum components in the ConFlat family. Manufactured from 304 stainless steel, they can withstand a vacuum environment of 1×10-13

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

Manufactured from 304 Stainless Steel
Vacuum Environment: Ultra High Vacuum 1×10^-13
Temperature environment: -200°C up to 450°C

Sort By

Grouped product items
PART NUMBER	Flange Size	CF Flange OD (In)	Tube ID (In)	Nipple Length (In)	Material	Ships Within	PRICE	ADD TO CART
CF133-075-N-3.00	Flange Size DN16CF CF Flange OD (In) 1.33 Tube ID (In) 0.75 Nipple Length (In) 3.00 Material 304SS Ships Within 3-5 Days See more CF133-075-N-3.00	DN16CF	1.33	0.75	3.00	304SS	3-5 Days	$73.00	Starting at: $73.00	PRICE QTY $7,300.00
CF212-100-N-4.10	Flange Size DN25CF CF Flange OD (In) 2.12 Tube ID (In) 1.00 Nipple Length (In) 4.10 Material 304SS Ships Within 3-5 Days See more CF212-100-N-4.10	DN25CF	2.12	1.00	4.10	304SS	3-5 Days	$85.00	Starting at: $85.00	PRICE QTY $8,500.00
CF275-150-N-4.93	Flange Size DN40CF CF Flange OD (In) 2.75 Tube ID (In) 1.50 Nipple Length (In) 4.93 Material 304SS Ships Within 3-5 Days See more CF275-150-N-4.93	DN40CF	2.75	1.50	4.93	304SS	3-5 Days	$90.00	Starting at: $90.00	PRICE QTY $9,000.00
CF338-200-N-6.43	Flange Size DN50CF CF Flange OD (In) 3.38 Tube ID (In) 2.00 Nipple Length (In) 6.43 Material 304SS Ships Within 3-5 Days See more CF338-200-N-6.43	DN50CF	3.38	2.00	6.43	304SS	3-5 Days	$181.00	Starting at: $181.00	PRICE QTY $18,100.00
CF450-250-N-6.76	Flange Size DN63CF CF Flange OD (In) 4.50 Tube ID (In) 2.50 Nipple Length (In) 6.76 Material 304SS Ships Within 3-5 Days See more CF450-250-N-6.76	DN63CF	4.50	2.50	6.76	304SS	3-5 Days	$275.00	Starting at: $275.00	PRICE QTY $27,500.00
CF462-300-N-7.06	Flange Size DN75CF CF Flange OD (In) 4.62 Tube ID (In) 3.00 Nipple Length (In) 7.06 Material 304SS Ships Within 3-5 Days See more CF462-300-N-7.06	DN75CF	4.62	3.00	7.06	304SS	3-5 Days	$295.00	Starting at: $295.00	PRICE QTY $29,500.00
CF450-250-N-8.25	Flange Size DN63CF CF Flange OD (In) 4.50 Tube ID (In) 2.50 Nipple Length (In) 8.25 Material 304SS Ships Within 3-5 Days See more CF450-250-N-8.25	DN63CF	4.50	2.50	8.25	304SS	3-5 Days	$290.00	Starting at: $290.00	PRICE QTY $29,000.00
CF600-400-N-8.64	Flange Size DN100CF CF Flange OD (In) 6.00 Tube ID (In) 4.00 Nipple Length (In) 8.64 Material 304SS Ships Within 3-5 Days See more CF600-400-N-8.64	DN100CF	6.00	4.00	8.64	304SS	3-5 Days	$300.00	Starting at: $300.00	PRICE QTY $30,000.00
CF600-400-N-10.62	Flange Size DN100CF CF Flange OD (In) 6.00 Tube ID (In) 4.00 Nipple Length (In) 10.62 Material 304SS Ships Within 3-5 Days See more CF600-400-N-10.62	DN100CF	6.00	4.00	10.62	304SS	3-5 Days	$310.00	Starting at: $310.00	PRICE QTY $31,000.00
CF800-600-N-11.00	Flange Size DN160CF CF Flange OD (In) 8.00 Tube ID (In) 6.00 Nipple Length (In) 11.00 Material 304SS Ships Within 3-5 Days See more CF800-600-N-11.00	DN160CF	8.00	6.00	11.00	304SS	3-5 Days	$595.00	Starting at: $595.00	PRICE QTY $59,500.00
CF800-600-N-13.12	Flange Size DN160CF CF Flange OD (In) 8.00 Tube ID (In) 6.00 Nipple Length (In) 13.12 Material 304SS Ships Within 3-5 Days See more CF800-600-N-13.12	DN160CF	8.00	6.00	13.12	304SS	3-5 Days	$575.00	Starting at: $575.00	PRICE QTY $57,500.00
CF1000-800-N-16.00	Flange Size DN200CF CF Flange OD (In) 10.00 Tube ID (In) 8.00 Nipple Length (In) 16.00 Material 304SS Ships Within 3-5 Days See more CF1000-800-N-16.00	DN200CF	10.00	8.00	16.00	304SS	3-5 Days	$925.00	Starting at: $925.00	PRICE QTY $92,500.00
CF1325-1000-N-20.00	Flange Size DN275CF CF Flange OD (In) 13.25 Tube ID (In) 10.00 Nipple Length (In) 20.00 Material 304SS Ships Within 3-5 Days See more CF1325-1000-N-20.00	DN275CF	13.25	10.00	20.00	304SS	3-5 Days	$1,800.00	Starting at: $1,800.00	PRICE QTY $180,000.00
