CF Fixed & Rotatable Half Nipple

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

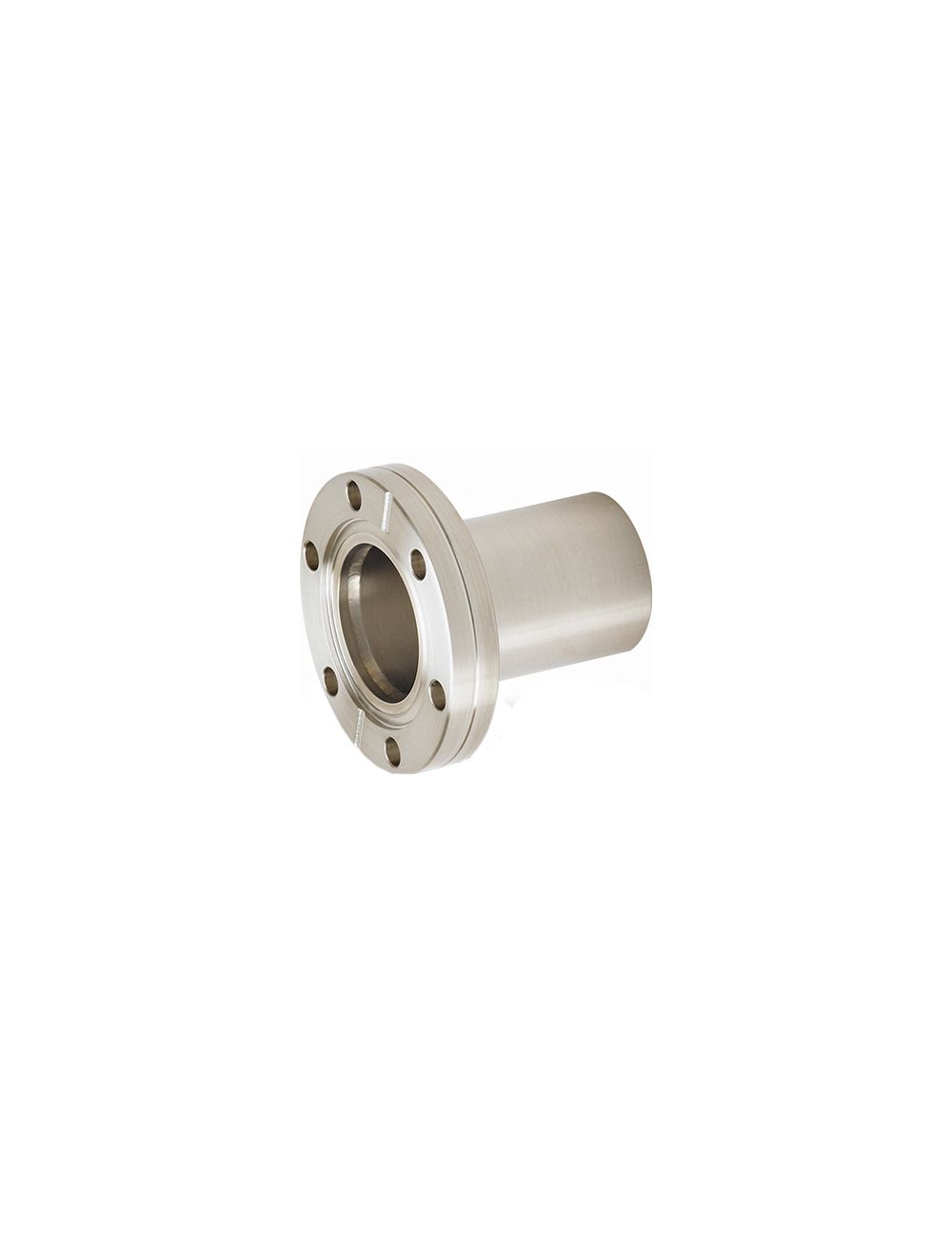

ConFlat (CF) Fixed & Rotatable Half Nipples are a one-piece design with a flange on end end and raw tube on the other. Half Nipples required some form of welding on one end. Nipples are deisgned to attached other vacuum components in the ConFlat family. Manufactured from 304 stainless steel, they can withstand a vacuum environment of 1×10-13

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

Manufactured from 304 Stainless Steel
Vacuum Environment: Ultra High Vacuum 1×10^-13
Temperature environment: -200°C up to 450°C

Sort By

Grouped product items
PART NUMBER	Flange Size	CF Flange OD (In)	Tube ID (In)	Nipple Length (In)	Flange Style	Bolt Hole Style	Material	Ships Within	PRICE	ADD TO CART
CF133-075-HN-1.50	Flange Size DN16CF CF Flange OD (In) 1.33 Tube ID (In) 0.75 Nipple Length (In) 1.50 Flange Style Fixed Bolt Hole Style Clearance Material 304SS Ships Within 3-5 Days See more CF133-075-HN-1.50	DN16CF	1.33	0.75	1.50	Fixed	Clearance	304SS	3-5 Days	$50.00	Starting at: $50.00	PRICE QTY $50.00
CF133R-075-HN-1.50	Flange Size DN16CF CF Flange OD (In) 1.33 Tube ID (In) 0.75 Nipple Length (In) 1.50 Flange Style Rotatable Bolt Hole Style Clearance Material 304SS Ships Within 3-5 Days See more CF133R-075-HN-1.50	DN16CF	1.33	0.75	1.50	Rotatable	Clearance	304SS	3-5 Days	$58.00	Starting at: $58.00	PRICE QTY $58.00
CF133T-075-HN-1.50	Flange Size DN16CF CF Flange OD (In) 1.33 Tube ID (In) 0.75 Nipple Length (In) 1.50 Flange Style Fixed Bolt Hole Style Tapped Material 304SS Ships Within 3-5 Days See more CF133T-075-HN-1.50	DN16CF	1.33	0.75	1.50	Fixed	Tapped	304SS	3-5 Days	$95.00	Starting at: $95.00	PRICE QTY $95.00
CF133RT-075-HN-1.50	Flange Size DN16CF CF Flange OD (In) 1.33 Tube ID (In) 0.75 Nipple Length (In) 1.50 Flange Style Rotatable Bolt Hole Style Tapped Material 304SS Ships Within 3-5 Days See more CF133RT-075-HN-1.50	DN16CF	1.33	0.75	1.50	Rotatable	Tapped	304SS	3-5 Days	$65.00	Starting at: $65.00	PRICE QTY $65.00
CF212-100-HN-2.05	Flange Size DN25CF CF Flange OD (In) 2.12 Tube ID (In) 1.00 Nipple Length (In) 2.05 Flange Style Fixed Bolt Hole Style Clearance Material 304SS Ships Within 3-5 Days See more CF212-100-HN-2.05	DN25CF	2.12	1.00	2.05	Fixed	Clearance	304SS	3-5 Days	$77.50	Starting at: $77.50	PRICE QTY $77.50
CF212T-100-HN-2.05	Flange Size DN25CF CF Flange OD (In) 2.12 Tube ID (In) 1.00 Nipple Length (In) 2.05 Flange Style Fixed Bolt Hole Style Tapped Material 304SS Ships Within 3-5 Days See more CF212T-100-HN-2.05	DN25CF	2.12	1.00	2.05	Fixed	Tapped	304SS	3-5 Days	$85.00	Starting at: $85.00	PRICE QTY $85.00
CF212R-100-HN-2.05	Flange Size DN25CF CF Flange OD (In) 2.12 Tube ID (In) 1.00 Nipple Length (In) 2.05 Flange Style Rotatable Bolt Hole Style Clearance Material 304SS Ships Within 3-5 Days See more CF212R-100-HN-2.05	DN25CF	2.12	1.00	2.05	Rotatable	Clearance	304SS	3-5 Days	$75.00	Starting at: $75.00	PRICE QTY $75.00
CF212RT-100-HN-2.05	Flange Size DN25CF CF Flange OD (In) 2.12 Tube ID (In) 1.00 Nipple Length (In) 2.05 Flange Style Rotatable Bolt Hole Style Tapped Material 304SS Ships Within 3-5 Days See more CF212RT-100-HN-2.05	DN25CF	2.12	1.00	2.05	Rotatable	Tapped	304SS	3-5 Days	$89.50	Starting at: $89.50	PRICE QTY $89.50
CF275-150-HN-2.46	Flange Size DN40CF CF Flange OD (In) 2.75 Tube ID (In) 1.50 Nipple Length (In) 2.46 Flange Style Fixed Bolt Hole Style Clearance Material 304SS Ships Within 3-5 Days See more CF275-150-HN-2.46	DN40CF	2.75	1.50	2.46	Fixed	Clearance	304SS	3-5 Days	$55.50	Starting at: $55.50	PRICE QTY $55.50
CF275R-150-HN-2.46	Flange Size DN40CF CF Flange OD (In) 2.75 Tube ID (In) 1.50 Nipple Length (In) 2.46 Flange Style Rotatable Bolt Hole Style Clearance Material 304SS Ships Within 3-5 Days See more CF275R-150-HN-2.46	DN40CF	2.75	1.50	2.46	Rotatable	Clearance	304SS	3-5 Days	$65.00	Starting at: $65.00	PRICE QTY $65.00
CF275T-150-HN-2.46	Flange Size DN40CF CF Flange OD (In) 2.75 Tube ID (In) 1.50 Nipple Length (In) 2.46 Flange Style Fixed Bolt Hole Style Tapped Material 304SS Ships Within 3-5 Days See more CF275T-150-HN-2.46	DN40CF	2.75	1.50	2.46	Fixed	Tapped	304SS	3-5 Days	$67.50	Starting at: $67.50	PRICE QTY $67.50
CF275RT-150-HN-2.46	Flange Size DN40CF CF Flange OD (In) 2.75 Tube ID (In) 1.50 Nipple Length (In) 2.46 Flange Style Rotatable Bolt Hole Style Tapped Material 304SS Ships Within 3-5 Days See more CF275RT-150-HN-2.46	DN40CF	2.75	1.50	2.46	Rotatable	Tapped	304SS	3-5 Days	$60.00	Starting at: $60.00	PRICE QTY $60.00
CF338-200-HN-3.21	Flange Size DN50CF CF Flange OD (In) 3.38 Tube ID (In) 2.00 Nipple Length (In) 3.21 Flange Style Fixed Bolt Hole Style Clearance Material 304SS Ships Within 3-5 Days See more CF338-200-HN-3.21	DN50CF	3.38	2.00	3.21	Fixed	Clearance	304SS	3-5 Days	$87.75	Starting at: $87.75	PRICE QTY $87.75
CF338T-200-HN-3.21	Flange Size DN50CF CF Flange OD (In) 3.38 Tube ID (In) 2.00 Nipple Length (In) 3.21 Flange Style Fixed Bolt Hole Style Tapped Material 304SS Ships Within 3-5 Days See more CF338T-200-HN-3.21	DN50CF	3.38	2.00	3.21	Fixed	Tapped	304SS	3-5 Days	$100.00	Starting at: $100.00	PRICE QTY $100.00
CF338R-200-HN-3.21	Flange Size DN50CF CF Flange OD (In) 3.38 Tube ID (In) 2.00 Nipple Length (In) 3.21 Flange Style Rotatable Bolt Hole Style Clearance Material 304SS Ships Within 3-5 Days See more CF338R-200-HN-3.21	DN50CF	3.38	2.00	3.21	Rotatable	Clearance	304SS	3-5 Days	$110.00	Starting at: $110.00	PRICE QTY $110.00
CF338RT-200-HN-3.21	Flange Size DN50CF CF Flange OD (In) 3.38 Tube ID (In) 2.00 Nipple Length (In) 3.21 Flange Style Rotatable Bolt Hole Style Tapped Material 304SS Ships Within 3-5 Days See more CF338RT-200-HN-3.21	DN50CF	3.38	2.00	3.21	Rotatable	Tapped	304SS	3-5 Days	$115.00	Starting at: $115.00	PRICE QTY $115.00
CF450-250-HN-3.38	Flange Size DN63CF CF Flange OD (In) 4.50 Tube ID (In) 2.50 Nipple Length (In) 3.38 Flange Style Fixed Bolt Hole Style Clearance Material 304SS Ships Within 3-5 Days See more CF450-250-HN-3.38	DN63CF	4.50	2.50	3.38	Fixed	Clearance	304SS	3-5 Days	$145.00	Starting at: $145.00	PRICE QTY $145.00
CF450T-250-HN-3.38	Flange Size DN63CF CF Flange OD (In) 4.50 Tube ID (In) 2.50 Nipple Length (In) 3.38 Flange Style Fixed Bolt Hole Style Tapped Material 304SS Ships Within 3-5 Days See more CF450T-250-HN-3.38	DN63CF	4.50	2.50	3.38	Fixed	Tapped	304SS	3-5 Days	$195.00	Starting at: $195.00	PRICE QTY $195.00
CF450R-250-HN-3.38	Flange Size DN63CF CF Flange OD (In) 4.50 Tube ID (In) 2.50 Nipple Length (In) 3.38 Flange Style Rotatable Bolt Hole Style Clearance Material 304SS Ships Within 3-5 Days See more CF450R-250-HN-3.38	DN63CF	4.50	2.50	3.38	Rotatable	Clearance	304SS	3-5 Days	$165.00	Starting at: $165.00	PRICE QTY $165.00
CF450RT-250-HN-3.38	Flange Size DN63CF CF Flange OD (In) 4.50 Tube ID (In) 2.50 Nipple Length (In) 3.38 Flange Style Rotatable Bolt Hole Style Tapped Material 304SS Ships Within 3-5 Days See more CF450RT-250-HN-3.38	DN63CF	4.50	2.50	3.38	Rotatable	Tapped	304SS	3-5 Days	$200.00	Starting at: $200.00	PRICE QTY $200.00
