CF 4-Way Cross

Skip to the beginning of the images gallery

CF 4-Way Cross

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

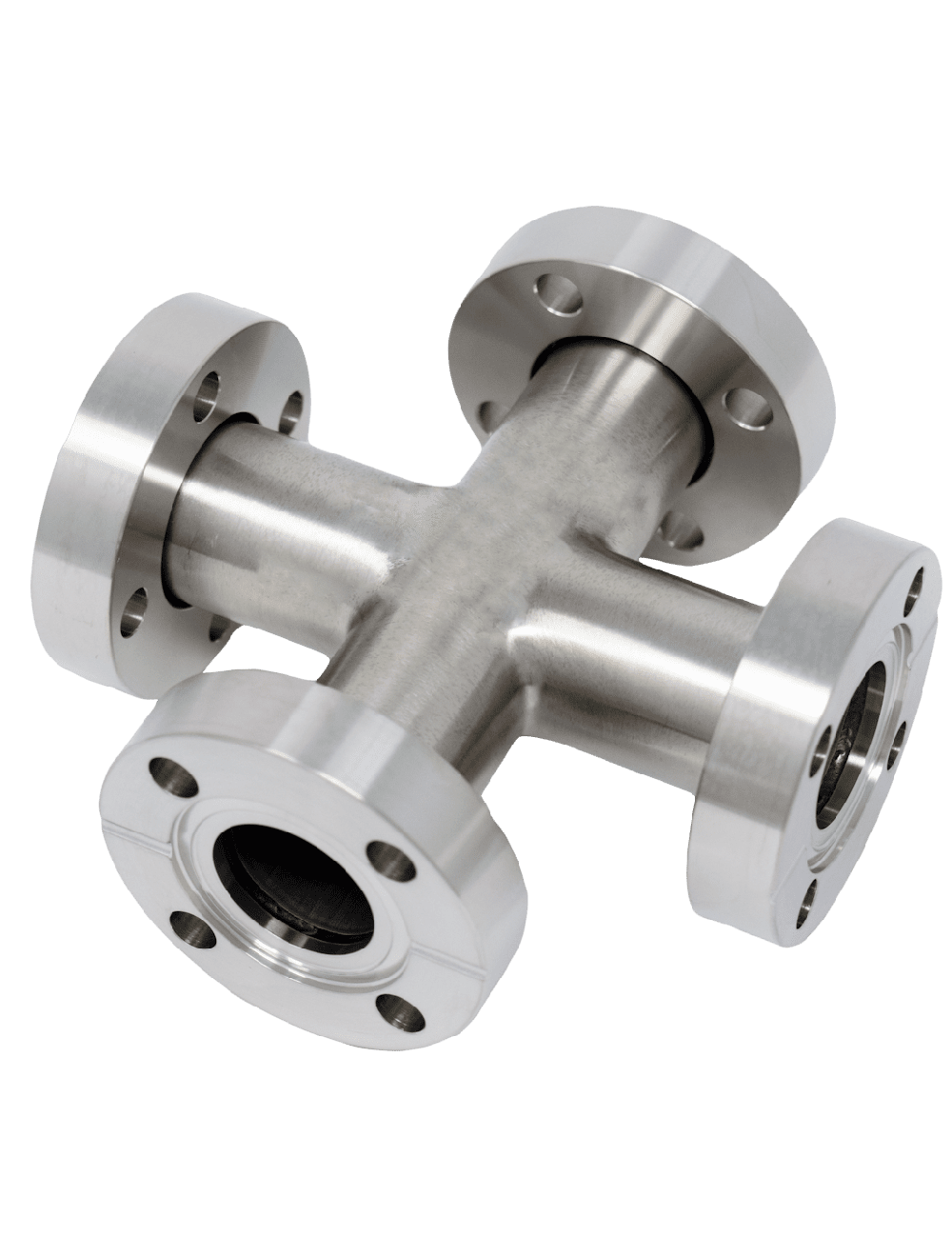

The ConFlat (CF) 4-Way Cross are an X design with three outlets and one inlet. All 4-Way crosses come with two fixed and two rotatable flanges. Our crosses are manufactured of 304 stainless steel.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

Manufactured from 304 Stainless Steel
Made with two rotatable & two fixed flanges
Vacuum Environment: Ultra High Vacuum (1x10-9 torr)

Sort By

Grouped product items
PART NUMBER	Flange Size	CF Flange OD (In)	Flange Tube OD (In)	Port Length (In)	Material	Ships Within	PRICE	ADD TO CART
CF133-075-4X-1.50	Flange Size DN16CF CF Flange OD (In) 1.33 Flange Tube OD (In) 0.75 Port Length (In) 1.50 Material 304SS Ships Within 3 Days See more CF133-075-4X-1.50	DN16CF	1.33	0.75	1.50	304SS	3 Days	$150.00	Starting at: $150.00	PRICE QTY $150.00
CF212-100-4X-2.05	Flange Size DN25CF CF Flange OD (In) 2.12 Flange Tube OD (In) 1.00 Port Length (In) 2.05 Material 304SS Ships Within 3 Days See more CF212-100-4X-2.05	DN25CF	2.12	1.00	2.05	304SS	3 Days	$215.00	Starting at: $215.00	PRICE QTY $215.00
CF275-150-4X-2.46	Flange Size DN40CF CF Flange OD (In) 2.75 Flange Tube OD (In) 1.50 Port Length (In) 2.46 Material 304SS Ships Within 3 Days See more CF275-150-4X-2.46	DN40CF	2.75	1.50	2.46	304SS	3 Days	$175.00	Starting at: $175.00	PRICE QTY $175.00
CF338-200-4X-3.22	Flange Size DN50CF CF Flange OD (In) 3.38 Flange Tube OD (In) 2.00 Port Length (In) 3.22 Material 304SS Ships Within 3 Days See more CF338-200-4X-3.22	DN50CF	3.38	2.00	3.22	304SS	3 Days	$410.00	Starting at: $410.00	PRICE QTY $410.00
CF450-250-4X-3.38	Flange Size DN63CF CF Flange OD (In) 4.50 Flange Tube OD (In) 2.50 Port Length (In) 3.38 Material 304SS Ships Within 3 Days See more CF450-250-4X-3.38	DN63CF	4.50	2.50	3.38	304SS	3 Days	$535.00	Starting at: $535.00	PRICE QTY $535.00
CF450-250-4X-4.12	Flange Size DN63CF CF Flange OD (In) 4.50 Flange Tube OD (In) 2.50 Port Length (In) 4.12 Material 304SS Ships Within 3 Days See more CF450-250-4X-4.12	DN63CF	4.50	2.50	4.12	304SS	3 Days	$710.00	Starting at: $710.00	PRICE QTY $710.00
CF462-300-4X-3.63	Flange Size DN75CF CF Flange OD (In) 4.62 Flange Tube OD (In) 3.00 Port Length (In) 3.63 Material 304SS Ships Within 3 Days See more CF462-300-4X-3.63	DN75CF	4.62	3.00	3.63	304SS	3 Days	$785.00	Starting at: $785.00	PRICE QTY $785.00
CF600-400-4X-4.32	Flange Size DN100CF CF Flange OD (In) 6.00 Flange Tube OD (In) 4.00 Port Length (In) 4.32 Material 304SS Ships Within 3 Days See more CF600-400-4X-4.32	DN100CF	6.00	4.00	4.32	304SS	3 Days	$815.00	Starting at: $815.00	PRICE QTY $815.00
CF600-400-4X-5.31	Flange Size DN100CF CF Flange OD (In) 6.00 Flange Tube OD (In) 4.00 Port Length (In) 5.31 Material 304SS Ships Within 3 Days See more CF600-400-4X-5.31	DN100CF	6.00	4.00	5.31	304SS	3 Days	$815.00	Starting at: $815.00	PRICE QTY $815.00
CF675-500-4X-4.71	Flange Size DN125CF CF Flange OD (In) 6.75 Flange Tube OD (In) 5.00 Port Length (In) 4.71 Material 304SS Ships Within 3 Days See more CF675-500-4X-4.71	DN125CF	6.75	5.00	4.71	304SS	3 Days	$1,550.00	Starting at: $1,550.00	PRICE QTY $1,550.00
CF800-600-4X-5.50	Flange Size DN160CF CF Flange OD (In) 8.00 Flange Tube OD (In) 6.00 Port Length (In) 5.50 Material 304SS Ships Within 3 Days See more CF800-600-4X-5.50	DN160CF	8.00	6.00	5.50	304SS	3 Days	$1,650.00	Starting at: $1,650.00	PRICE QTY $1,650.00
CF800-600-4X-6.56	Flange Size DN160CF CF Flange OD (In) 8.00 Flange Tube OD (In) 6.00 Port Length (In) 6.56 Material 304SS Ships Within 3 Days See more CF800-600-4X-6.56	DN160CF	8.00	6.00	6.56	304SS	3 Days	$1,575.00	Starting at: $1,575.00	PRICE QTY $1,575.00
CF1000-800-4X-7.50	Flange Size DN200CF CF Flange OD (In) 10.00 Flange Tube OD (In) 8.00 Port Length (In) 7.50 Material 304SS Ships Within 3 Days See more CF1000-800-4X-7.50	DN200CF	10.00	8.00	7.50	304SS	3 Days	$2,350.00	Starting at: $2,350.00	PRICE QTY $2,350.00
