ASA Fixed Flanges - Grooved

Skip to the beginning of the images gallery

ASA Fixed Flanges - Grooved

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

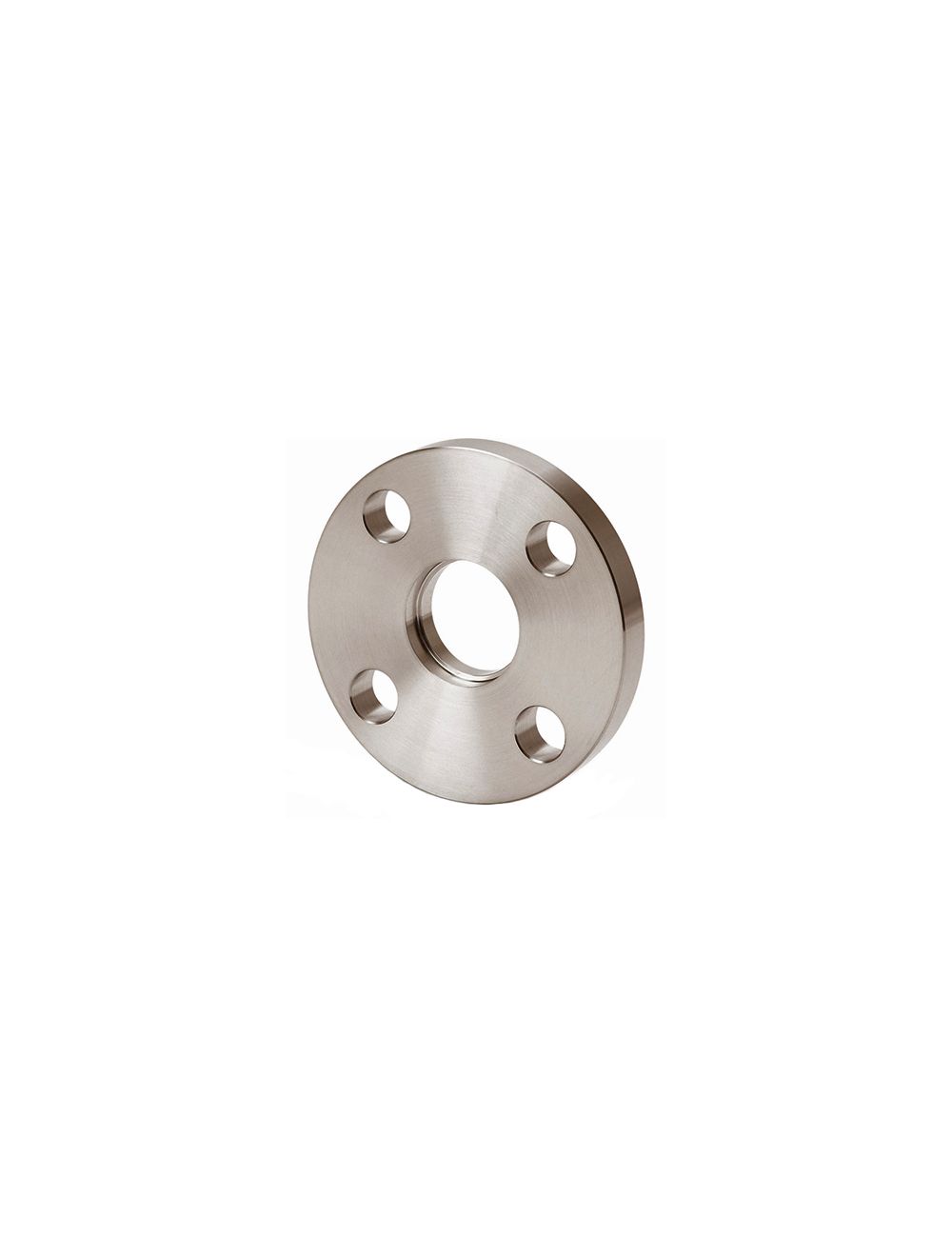

An ASA Fixed Flange - Grooved is a one-piece design that has a comes in both bored and blank and come with a o-ring groove. All ASA flange styles have: 1 smooth flange, and 1 grooved flange. ASA Flanges are manufactured from 304 stainless steel and can withstand a vacuum environment of 1x10-7 torr.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

Manufactured from 304 stainless steel
Flange OD range 4.25" to 16"
Standard O-Ring Compound: Viton FKM

Sort By

Grouped product items
PART NUMBER	Flange Size	Flange OD (in)	Bore (in)	Tube ID (in)	Flange Height (in)	Setback (in)	Bolt Hole Diameter (in)	Number of Bolt Holes	Bolt Hole Circle Diameter (in)	Material	Ships Within	PRICE	ADD TO CART
ASA100G-100	Flange Size ASA-1 Flange OD (in) 4.25 Bore (in) 0.875 Tube ID (in) 1.1 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 3.13 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA100G-100	ASA-1	4.25	0.875	1.1	0.50	0.25	3.13	4	0.625	304SS	3-5 Days	$119.00	Starting at: $119.00	PRICE QTY $119.00
ASA100G-150	Flange Size ASA-1 Flange OD (in) 4.25 Bore (in) 1.375 Tube ID (in) 1.51 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 3.13 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA100G-150	ASA-1	4.25	1.375	1.51	0.50	0.25	3.13	4	0.625	304SS	3-5 Days	$119.00	Starting at: $119.00	PRICE QTY $119.00
ASA100G-000	Flange Size ASA-1 Flange OD (in) 4.25 Bore (in) Blank Tube ID (in) Blank Flange Height (in) 0.50 Setback (in) - Bolt Hole Diameter (in) 3.13 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA100G-000	ASA-1	4.25	Blank	Blank	0.50	-	3.13	4	0.625	304SS	3-5 Days	$112.00	Starting at: $112.00	PRICE QTY $112.00
ASA150G-150	Flange Size ASA-1.5 Flange OD (in) 5.00 Bore (in) 1.375 Tube ID (in) 1.51 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 3.88 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA150G-150	ASA-1.5	5.00	1.375	1.51	0.50	0.25	3.88	4	0.625	304SS	3-5 Days	$162.00	Starting at: $162.00	PRICE QTY $162.00
ASA150G-200	Flange Size ASA-1.5 Flange OD (in) 5.00 Bore (in) 1.875 Tube ID (in) 2.1 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 3.88 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA150G-200	ASA-1.5	5.00	1.875	2.1	0.50	0.25	3.88	4	0.625	304SS	3-5 Days	$162.00	Starting at: $162.00	PRICE QTY $162.00
ASA150G-250	Flange Size ASA-1.5 Flange OD (in) 5.00 Bore (in) 2.375 Tube ID (in) 2.51 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 3.88 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA150G-250	ASA-1.5	5.00	2.375	2.51	0.50	0.25	3.88	4	0.625	304SS	3-5 Days	$162.00	Starting at: $162.00	PRICE QTY $162.00
ASA150G-000	Flange Size ASA-1.5 Flange OD (in) 5.00 Bore (in) Blank Tube ID (in) Blank Flange Height (in) 0.50 Setback (in) - Bolt Hole Diameter (in) 3.88 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA150G-000	ASA-1.5	5.00	Blank	Blank	0.50	-	3.88	4	0.625	304SS	3-5 Days	$143.00	Starting at: $143.00	PRICE QTY $143.00
ASA200G-200	Flange Size ASA-2 Flange OD (in) 6.00 Bore (in) 1.875 Tube ID (in) 2.1 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 4.75 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA200G-200	ASA-2	6.00	1.875	2.1	0.50	0.25	4.75	4	0.75	304SS	3-5 Days	$181.00	Starting at: $181.00	PRICE QTY $181.00
ASA200G-250	Flange Size ASA-2 Flange OD (in) 6.00 Bore (in) 2.375 Tube ID (in) 2.51 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 4.75 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA200G-250	ASA-2	6.00	2.375	2.51	0.50	0.25	4.75	4	0.75	304SS	3-5 Days	$181.00	Starting at: $181.00	PRICE QTY $181.00
ASA200G-000	Flange Size ASA-2 Flange OD (in) 6.00 Bore (in) Blank Tube ID (in) Blank Flange Height (in) 0.50 Setback (in) - Bolt Hole Diameter (in) 4.75 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA200G-000	ASA-2	6.00	Blank	Blank	0.50	-	4.75	4	0.75	304SS	3-5 Days	$168.00	Starting at: $168.00	PRICE QTY $168.00
ASA200G-300	Flange Size ASA-2 Flange OD (in) 6.00 Bore (in) 2.938 Tube ID (in) 3.1 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 4.75 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA200G-300	ASA-2	6.00	2.938	3.1	0.50	0.25	4.75	4	0.75	304SS	3-5 Days	$194.00	Starting at: $194.00	PRICE QTY $194.00
ASA200G-350	Flange Size ASA-2 Flange OD (in) 6.00 Bore (in) 3.438 Tube ID (in) 3.51 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 4.75 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA200G-350	ASA-2	6.00	3.438	3.51	0.50	0.25	4.75	4	0.75	304SS	3-5 Days	$181.00	Starting at: $181.00	PRICE QTY $181.00
ASA300G-300	Flange Size ASA-3 Flange OD (in) 7.50 Bore (in) 2.938 Tube ID (in) 3.1 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 6.00 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA300G-300	ASA-3	7.50	2.938	3.1	0.50	0.25	6.00	4	0.75	304SS	3-5 Days	$214.00	Starting at: $214.00	PRICE QTY $214.00
ASA300G-350	Flange Size ASA-3 Flange OD (in) 7.50 Bore (in) 3.438 Tube ID (in) 3.51 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 6.00 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA300G-350	ASA-3	7.50	3.438	3.51	0.50	0.25	6.00	4	0.75	304SS	3-5 Days	$214.00	Starting at: $214.00	PRICE QTY $214.00
ASA300G-400	Flange Size ASA-3 Flange OD (in) 7.50 Bore (in) 3.91 Tube ID (in) 4.1 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 6.00 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA300G-400	ASA-3	7.50	3.91	4.1	0.50	0.25	6.00	4	0.75	304SS	3-5 Days	$214.00	Starting at: $214.00	PRICE QTY $214.00
ASA300G-000	Flange Size ASA-3 Flange OD (in) 7.50 Bore (in) Blank Tube ID (in) Blank Flange Height (in) 0.50 Setback (in) - Bolt Hole Diameter (in) 6.00 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA300G-000	ASA-3	7.50	Blank	Blank	0.50	-	6.00	4	0.75	304SS	3-5 Days	$196.00	Starting at: $196.00	PRICE QTY $196.00
ASA400G-400	Flange Size ASA-4 Flange OD (in) 9.00 Bore (in) 3.91 Tube ID (in) 4.1 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 7.50 Number of Bolt Holes 8 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA400G-400	ASA-4	9.00	3.91	4.1	0.50	0.25	7.50	8	0.75	304SS	3-5 Days	$231.00	Starting at: $231.00	PRICE QTY $231.00
ASA400G-600	Flange Size ASA-4 Flange OD (in) 9.00 Bore (in) 5.875 Tube ID (in) 6.2 Flange Height (in) 0.50 Setback (in) 0.25 Bolt Hole Diameter (in) 7.50 Number of Bolt Holes 8 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA400G-600	ASA-4	9.00	5.875	6.2	0.50	0.25	7.50	8	0.75	304SS	3-5 Days	$243.00	Starting at: $243.00	PRICE QTY $243.00
ASA400G-000	Flange Size ASA-4 Flange OD (in) 9.00 Bore (in) Blank Tube ID (in) Blank Flange Height (in) 0.50 Setback (in) - Bolt Hole Diameter (in) 7.50 Number of Bolt Holes 8 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA400G-000	ASA-4	9.00	Blank	Blank	0.50	-	7.50	8	0.75	304SS	3-5 Days	$231.00	Starting at: $231.00	PRICE QTY $231.00
ASA600G-000	Flange Size ASA-6 Flange OD (in) 11.00 Bore (in) Blank Tube ID (in) Blank Flange Height (in) 0.75 Setback (in) - Bolt Hole Diameter (in) 9.50 Number of Bolt Holes 8 Bolt Hole Circle Diameter (in) 0.812 Material 304SS Ships Within 3-5 Days See more ASA600G-000	ASA-6	11.00	Blank	Blank	0.75	-	9.50	8	0.812	304SS	3-5 Days	$364.00	Starting at: $364.00	PRICE QTY $364.00
