ASA Nipple - Fixed Flanges

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

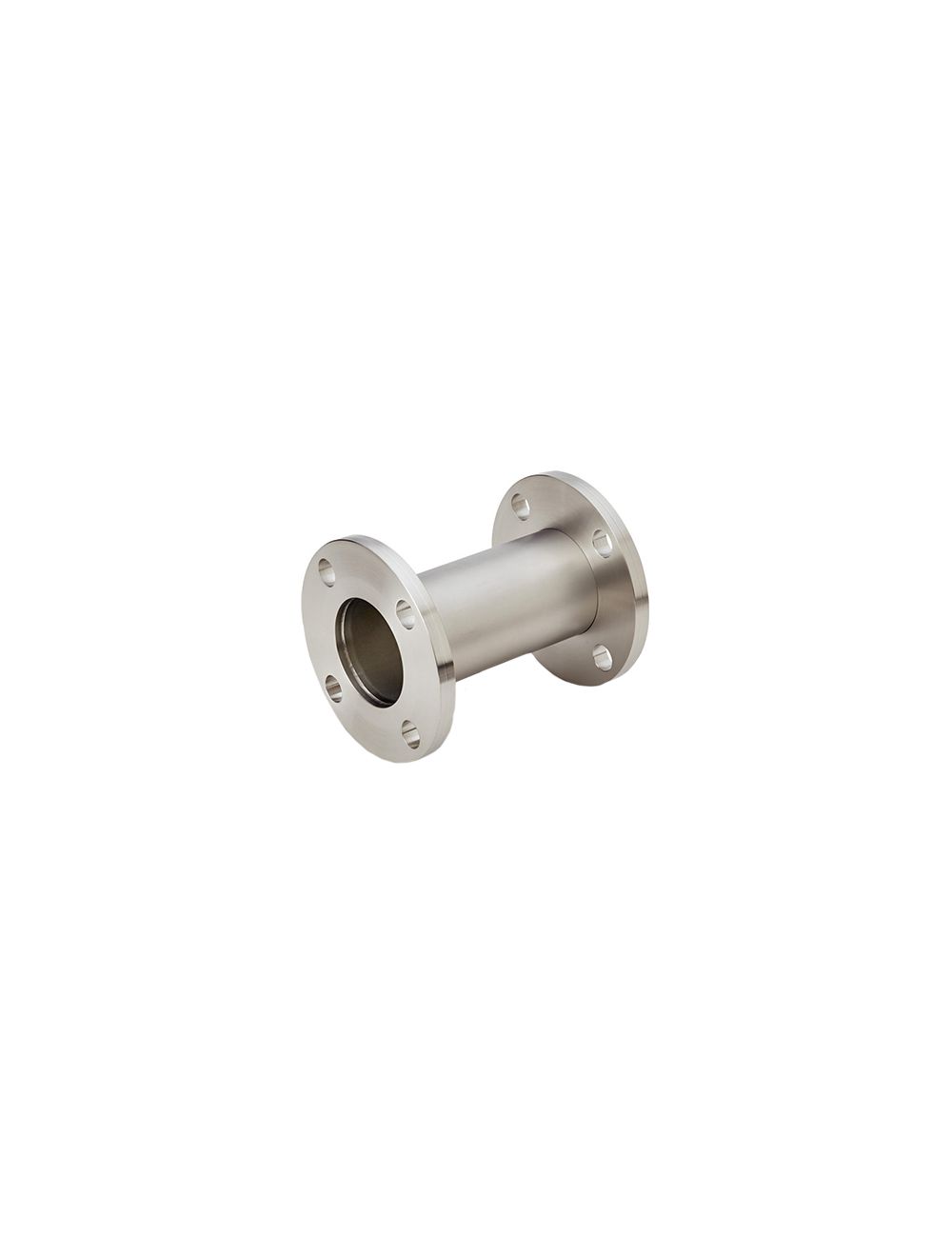

The ASA Nipple - Fixed Flange is designed to connect between a wide variety of ASA flange systems. These flanges are fixed and have a set bolt hole orientation. The ASA nipples are manufactured of 304 stainless steel and can withstand a vacuum environment of 1x10-7 torr.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits
- Manufactured from 304 stainless steel
- Standard O-Ring Compound: Viton FKM

Sort By

Grouped product items
PART NUMBER	Flange Size	Flange Tube OD (In)	Nipple Length (In)	Material	Ships Within	PRICE	ADD TO CART
ASA100XASA100-100-N-6.50	Flange Size ASA-1 Flange Tube OD (In) 1.00 Nipple Length (In) 6.50 Material 304SS Ships Within 3-5 Days See more ASA100XASA100-100-N-6.50	ASA-1	1.00	6.50	304SS	3-5 Days	$298.00	Starting at: $298.00	PRICE QTY $298.00
ASA100XASA100-150-N-6.50	Flange Size ASA-1 Flange Tube OD (In) 1.50 Nipple Length (In) 6.50 Material 304SS Ships Within 3-5 Days See more ASA100XASA100-150-N-6.50	ASA-1	1.50	6.50	304SS	3-5 Days	$298.00	Starting at: $298.00	PRICE QTY $298.00
ASA150XASA150-150-N-6.50	Flange Size ASA-1.5 Flange Tube OD (In) 1.50 Nipple Length (In) 6.50 Material 304SS Ships Within 3-5 Days See more ASA150XASA150-150-N-6.50	ASA-1.5	1.50	6.50	304SS	3-5 Days	$318.00	Starting at: $318.00	PRICE QTY $318.00
ASA150XASA150-200-N-6.50	Flange Size ASA-1.5 Flange Tube OD (In) 2.00 Nipple Length (In) 6.50 Material 304SS Ships Within 3-5 Days See more ASA150XASA150-200-N-6.50	ASA-1.5	2.00	6.50	304SS	3-5 Days	$318.00	Starting at: $318.00	PRICE QTY $318.00
ASA150XASA150-250-N-6.50	Flange Size ASA-1.5 Flange Tube OD (In) 2.50 Nipple Length (In) 6.50 Material 304SS Ships Within 3-5 Days See more ASA150XASA150-250-N-6.50	ASA-1.5	2.50	6.50	304SS	3-5 Days	$318.00	Starting at: $318.00	PRICE QTY $318.00
ASA200XASA200-200-N-7.00	Flange Size ASA-2 Flange Tube OD (In) 2.00 Nipple Length (In) 7.00 Material 304SS Ships Within 3-5 Days See more ASA200XASA200-200-N-7.00	ASA-2	2.00	7.00	304SS	3-5 Days	$363.00	Starting at: $363.00	PRICE QTY $363.00
ASA200XASA200-250-N-7.00	Flange Size ASA-2 Flange Tube OD (In) 2.50 Nipple Length (In) 7.00 Material 304SS Ships Within 3-5 Days See more ASA200XASA200-250-N-7.00	ASA-2	2.50	7.00	304SS	3-5 Days	$363.00	Starting at: $363.00	PRICE QTY $363.00
ASA200XASA200-300-N-7.00	Flange Size ASA-2 Flange Tube OD (In) 3.00 Nipple Length (In) 7.00 Material 304SS Ships Within 3-5 Days See more ASA200XASA200-300-N-7.00	ASA-2	3.00	7.00	304SS	3-5 Days	$363.00	Starting at: $363.00	PRICE QTY $363.00
ASA100XASA100-150-N-8.00	Flange Size ASA-1 Flange Tube OD (In) 1.50 Nipple Length (In) 8.00 Material 304SS Ships Within 3-5 Days See more ASA100XASA100-150-N-8.00	ASA-1	1.50	8.00	304SS	3-5 Days	$311.00	Starting at: $311.00	PRICE QTY $311.00
ASA150XASA150-250-N-8.00	Flange Size ASA-1.5 Flange Tube OD (In) 2.50 Nipple Length (In) 8.00 Material 304SS Ships Within 3-5 Days See more ASA150XASA150-250-N-8.00	ASA-1.5	2.50	8.00	304SS	3-5 Days	$324.00	Starting at: $324.00	PRICE QTY $324.00
ASA300XASA300-300-N-8.26	Flange Size ASA-3 Flange Tube OD (In) 3.00 Nipple Length (In) 8.26 Material 304SS Ships Within 3-5 Days See more ASA300XASA300-300-N-8.26	ASA-3	3.00	8.26	304SS	3-5 Days	$399.00	Starting at: $399.00	PRICE QTY $399.00
ASA200XASA200-300-N-8.50	Flange Size ASA-2 Flange Tube OD (In) 3.00 Nipple Length (In) 8.50 Material 304SS Ships Within 3-5 Days See more ASA200XASA200-300-N-8.50	ASA-2	3.00	8.50	304SS	3-5 Days	$369.00	Starting at: $369.00	PRICE QTY $369.00
ASA300XASA300-400-N-8.26	Flange Size ASA-3 Flange Tube OD (In) 4.00 Nipple Length (In) 8.26 Material 304SS Ships Within 3-5 Days See more ASA300XASA300-400-N-8.26	ASA-3	4.00	8.26	304SS	3-5 Days	$399.00	Starting at: $399.00	PRICE QTY $399.00
ASA400XASA400-400-N-8.26	Flange Size ASA-4 Flange Tube OD (In) 4.00 Nipple Length (In) 8.26 Material 304SS Ships Within 3-5 Days See more ASA400XASA400-400-N-8.26	ASA-4	4.00	8.26	304SS	3-5 Days	$416.00	Starting at: $416.00	PRICE QTY $416.00
ASA300XASA300-300-N-9.75	Flange Size ASA-3 Flange Tube OD (In) 4.00 Nipple Length (In) 9.75 Material 304SS Ships Within 3-5 Days See more ASA300XASA300-300-N-9.75	ASA-3	4.00	9.75	304SS	3-5 Days	$399.00	Starting at: $399.00	PRICE QTY $399.00
ASA300XASA300-400-N-10.24	Flange Size ASA-3 Flange Tube OD (In) 4.00 Nipple Length (In) 10.24 Material 304SS Ships Within 3-5 Days See more ASA300XASA300-400-N-10.24	ASA-3	4.00	10.24	304SS	3-5 Days	$411.00	Starting at: $411.00	PRICE QTY $411.00
ASA400XASA400-400-N-10.24	Flange Size ASA-4 Flange Tube OD (In) 6.00 Nipple Length (In) 10.24 Material 304SS Ships Within 3-5 Days See more ASA400XASA400-400-N-10.24	ASA-4	6.00	10.24	304SS	3-5 Days	$422.00	Starting at: $422.00	PRICE QTY $422.00
ASA400XASA400-600-N-10.50	Flange Size ASA-4 Flange Tube OD (In) 6.00 Nipple Length (In) 10.50 Material 304SS Ships Within 3-5 Days See more ASA400XASA400-600-N-10.50	ASA-4	6.00	10.50	304SS	3-5 Days	$434.00	Starting at: $434.00	PRICE QTY $434.00
ASA600XASA600-600-N-10.76	Flange Size ASA-6 Flange Tube OD (In) 6.00 Nipple Length (In) 10.76 Material 304SS Ships Within 3-5 Days See more ASA600XASA600-600-N-10.76	ASA-6	6.00	10.76	304SS	3-5 Days	$722.00	Starting at: $722.00	PRICE QTY $722.00
ASA400XASA400-600-N-12.62	Flange Size ASA-4 Flange Tube OD (In) 6.00 Nipple Length (In) 12.62 Material 304SS Ships Within 3-5 Days See more ASA400XASA400-600-N-12.62	ASA-4	6.00	12.62	304SS	3-5 Days	$439.00	Starting at: $439.00	PRICE QTY $439.00
