ASA Half Nipple - Fixed Flange

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

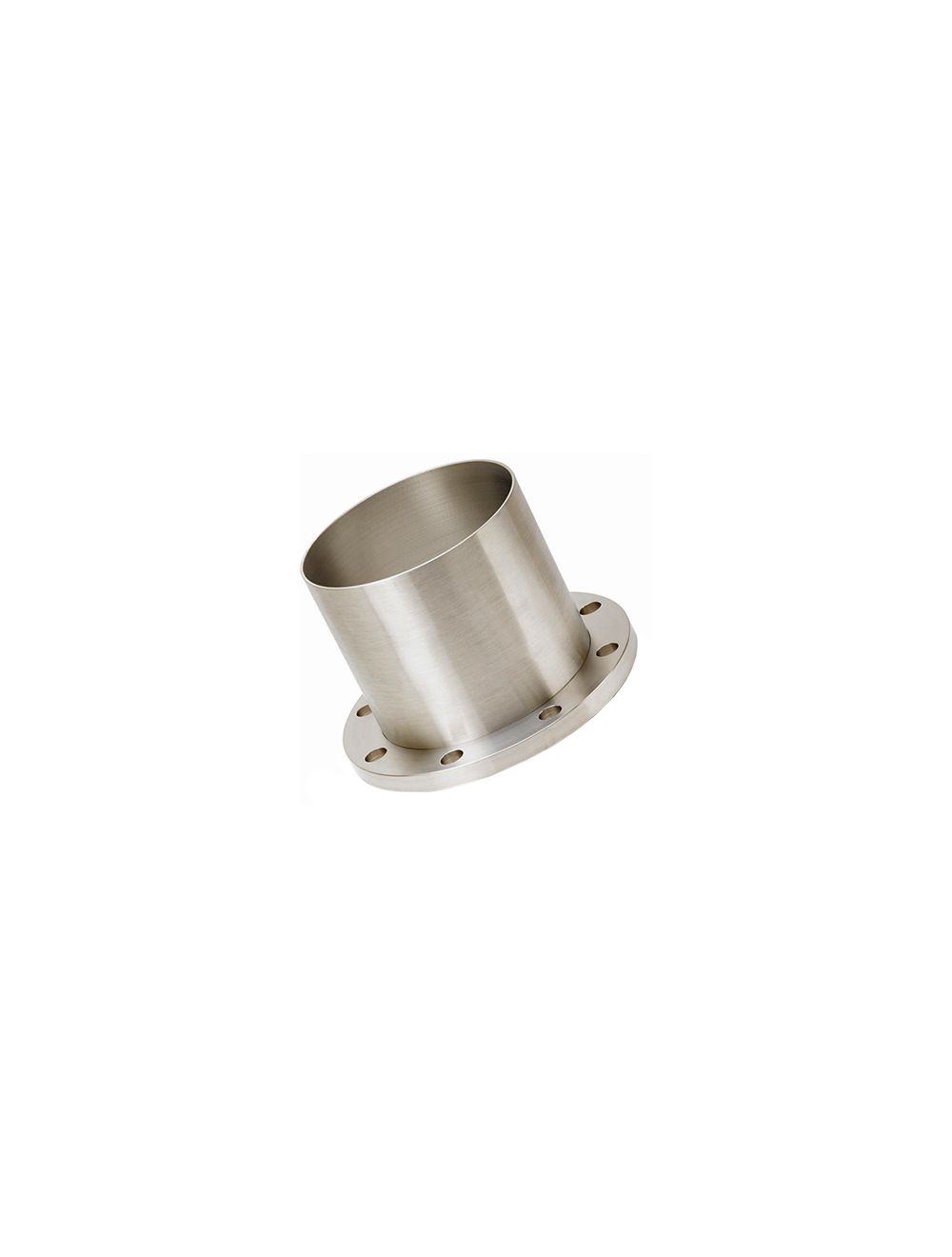

The ASA Half Nipple - Fixed Flange is designed to connect between a wide variety of ASA flange systems. This flange is fixed and have a set bolt hole orientation. The ASA nipples are manufactured of 304 stainless steel and can withstand a vacuum environment of 1x10-7 torr.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits
- Manufactured from 304 stainless steel
- Standard O-Ring Compound: Viton FKM

Sort By

Grouped product items
PART NUMBER	Flange Size	Flange Tube OD (in)	Wall Thickness (In)	Nipple Length (in)	Material	Ships Within	PRICE	ADD TO CART
ASA100-100-HN-3.25	Flange Size ASA-1 Flange Tube OD (in) 1.00 Wall Thickness (In) 0.065 Nipple Length (in) 3.25 Material 304SS Ships Within 3-5 Days See more ASA100-100-HN-3.25	ASA-1	1.00	0.065	3.25	304SS	3-5 Days	$143.00	Starting at: $143.00	PRICE QTY $143.00
ASA100-150-HN-3.25	Flange Size ASA-1 Flange Tube OD (in) 1.50 Wall Thickness (In) 0.065 Nipple Length (in) 3.25 Material 304SS Ships Within 3-5 Days See more ASA100-150-HN-3.25	ASA-1	1.50	0.065	3.25	304SS	3-5 Days	$143.00	Starting at: $143.00	PRICE QTY $143.00
ASA150-150-HN-3.25	Flange Size ASA-1.5 Flange Tube OD (in) 1.50 Wall Thickness (In) 0.065 Nipple Length (in) 3.25 Material 304SS Ships Within 3-5 Days See more ASA150-150-HN-3.25	ASA-1.5	1.50	0.065	3.25	304SS	3-5 Days	$175.00	Starting at: $175.00	PRICE QTY $175.00
ASA150-200-HN-3.25	Flange Size ASA-1.5 Flange Tube OD (in) 2.00 Wall Thickness (In) 0.065 Nipple Length (in) 3.25 Material 304SS Ships Within 3-5 Days See more ASA150-200-HN-3.25	ASA-1.5	2.00	0.065	3.25	304SS	3-5 Days	$175.00	Starting at: $175.00	PRICE QTY $175.00
ASA150-250-HN-3.25	Flange Size ASA-1.5 Flange Tube OD (in) 2.50 Wall Thickness (In) 0.065 Nipple Length (in) 3.25 Material 304SS Ships Within 3-5 Days See more ASA150-250-HN-3.25	ASA-1.5	2.50	0.065	3.25	304SS	3-5 Days	$175.00	Starting at: $175.00	PRICE QTY $175.00
ASA200-200-HN-3.50	Flange Size ASA-2 Flange Tube OD (in) 2.00 Wall Thickness (In) 0.065 Nipple Length (in) 3.50 Material 304SS Ships Within 3-5 Days See more ASA200-200-HN-3.50	ASA-2	2.00	0.065	3.50	304SS	3-5 Days	$194.00	Starting at: $194.00	PRICE QTY $194.00
ASA200-250-HN-3.50	Flange Size ASA-2 Flange Tube OD (in) 2.50 Wall Thickness (In) 0.065 Nipple Length (in) 3.50 Material 304SS Ships Within 3-5 Days See more ASA200-250-HN-3.50	ASA-2	2.50	0.065	3.50	304SS	3-5 Days	$194.00	Starting at: $194.00	PRICE QTY $194.00
ASA200-300-HN-3.50	Flange Size ASA-2 Flange Tube OD (in) 3.00 Wall Thickness (In) 0.065 Nipple Length (in) 3.50 Material 304SS Ships Within 3-5 Days See more ASA200-300-HN-3.50	ASA-2	3.00	0.065	3.50	304SS	3-5 Days	$194.00	Starting at: $194.00	PRICE QTY $194.00
ASA300-300-HN-4.13	Flange Size ASA-3 Flange Tube OD (in) 3.00 Wall Thickness (In) 0.065 Nipple Length (in) 4.13 Material 304SS Ships Within 3-5 Days See more ASA300-300-HN-4.13	ASA-3	3.00	0.065	4.13	304SS	3-5 Days	$219.00	Starting at: $219.00	PRICE QTY $219.00
ASA300-400-HN-4.13	Flange Size ASA-3 Flange Tube OD (in) 4.00 Wall Thickness (In) 0.083 Nipple Length (in) 4.13 Material 304SS Ships Within 3-5 Days See more ASA300-400-HN-4.13	ASA-3	4.00	0.083	4.13	304SS	3-5 Days	$219.00	Starting at: $219.00	PRICE QTY $219.00
ASA400-400-HN-4.13	Flange Size ASA-4 Flange Tube OD (in) 4.00 Wall Thickness (In) 0.083 Nipple Length (in) 4.13 Material 304SS Ships Within 3-5 Days See more ASA400-400-HN-4.13	ASA-4	4.00	0.083	4.13	304SS	3-5 Days	$237.00	Starting at: $237.00	PRICE QTY $237.00
ASA400-600-HN-5.25	Flange Size ASA-4 Flange Tube OD (in) 6.00 Wall Thickness (In) 0.083 Nipple Length (in) 5.25 Material 304SS Ships Within 3-5 Days See more ASA400-600-HN-5.25	ASA-4	6.00	0.083	5.25	304SS	3-5 Days	$254.00	Starting at: $254.00	PRICE QTY $254.00
ASA600-600-HN-5.38	Flange Size ASA-6 Flange Tube OD (in) 6.00 Wall Thickness (In) 0.083 Nipple Length (in) 5.38 Material 304SS Ships Within 3-5 Days See more ASA600-600-HN-5.38	ASA-6	6.00	0.083	5.38	304SS	3-5 Days	$364.00	Starting at: $364.00	PRICE QTY $364.00
ASA600-800-HN-7.38	Flange Size ASA-6 Flange Tube OD (in) 8.00 Wall Thickness (In) 0.120 Nipple Length (in) 7.38 Material 304SS Ships Within 3-5 Days See more ASA600-800-HN-7.38	ASA-6	8.00	0.120	7.38	304SS	3-5 Days	$399.00	Starting at: $399.00	PRICE QTY $399.00
ASA800-800-HN-7.75	Flange Size ASA-8 Flange Tube OD (in) 8.00 Wall Thickness (In) 0.120 Nipple Length (in) 7.75 Material 304SS Ships Within 3-5 Days See more ASA800-800-HN-7.75	ASA-8	8.00	0.120	7.75	304SS	3-5 Days	$462.00	Starting at: $462.00	PRICE QTY $462.00
ASA800-1000-HN-9.88	Flange Size ASA-8 Flange Tube OD (in) 10.00 Wall Thickness (In) 0.120 Nipple Length (in) 9.88 Material 304SS Ships Within 3-5 Days See more ASA800-1000-HN-9.88	ASA-8	10.00	0.120	9.88	304SS	3-5 Days	$503.00	Starting at: $503.00	PRICE QTY $503.00
