ASA Fixed Flanges - Flat

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

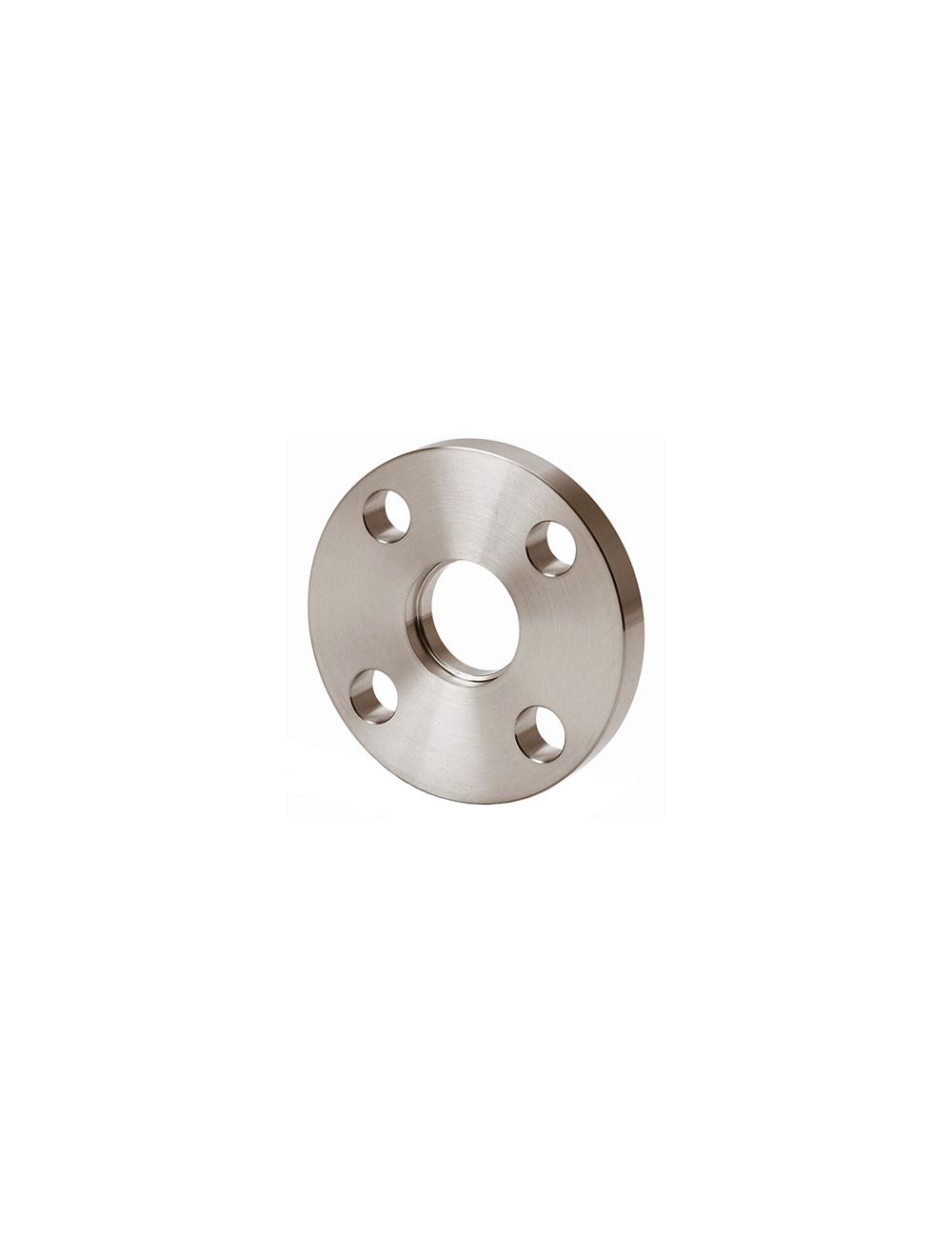

An ASA Fixed Flange is a one-piece design that has a comes in both bored and blank and come with a set bolt hole orientation. All ASA flange styles have: 1 smooth flange, and 1 grooved flange. ASA Flanges are manufactured from 304 stainless steel and can withstand a vacuum environment of 1x10-7 torr.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

Manufactured from 304 stainless steel
Flange OD range 4.25" to 16"

Sort By

Grouped product items
PART NUMBER	Flange Size	Flange OD (in)	Bore (In)	Tube ID (in)	Flange Height (in)	Bolt Hole Diameter (in)	Number of Bolt Holes	Bolt Hole Circle Diameter (in)	Material	Ships Within	PRICE	ADD TO CART
ASA100-100	Flange Size ASA-1 Flange OD (in) 4.25 Bore (In) 0.875 Tube ID (in) 1.01 Flange Height (in) 0.50 Bolt Hole Diameter (in) 3.13 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA100-100	ASA-1	4.25	0.875	1.01	0.50	3.13	4	0.625	304SS	3-5 Days	$90.00	Starting at: $90.00	PRICE QTY $90.00
ASA100-150	Flange Size ASA-1 Flange OD (in) 4.25 Bore (In) 1.375 Tube ID (in) 1.51 Flange Height (in) 0.50 Bolt Hole Diameter (in) 3.13 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA100-150	ASA-1	4.25	1.375	1.51	0.50	3.13	4	0.625	304SS	3-5 Days	$90.00	Starting at: $90.00	PRICE QTY $90.00
ASA100-000	Flange Size ASA-1 Flange OD (in) 4.25 Bore (In) Blank Tube ID (in) Blank Flange Height (in) 0.50 Bolt Hole Diameter (in) 3.13 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA100-000	ASA-1	4.25	Blank	Blank	0.50	3.13	4	0.625	304SS	3-5 Days	$83.00	Starting at: $83.00	PRICE QTY $83.00
ASA150-150	Flange Size ASA-1.5 Flange OD (in) 5.00 Bore (In) 1.375 Tube ID (in) 1.51 Flange Height (in) 0.50 Bolt Hole Diameter (in) 3.88 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA150-150	ASA-1.5	5.00	1.375	1.51	0.50	3.88	4	0.625	304SS	3-5 Days	$127.00	Starting at: $127.00	PRICE QTY $127.00
ASA150-200	Flange Size ASA-1.5 Flange OD (in) 5.00 Bore (In) 1.875 Tube ID (in) 2.01 Flange Height (in) 0.50 Bolt Hole Diameter (in) 3.88 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA150-200	ASA-1.5	5.00	1.875	2.01	0.50	3.88	4	0.625	304SS	3-5 Days	$127.00	Starting at: $127.00	PRICE QTY $127.00
ASA150-250	Flange Size ASA-1.5 Flange OD (in) 5.00 Bore (In) 2.375 Tube ID (in) 2.51 Flange Height (in) 0.50 Bolt Hole Diameter (in) 3.88 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA150-250	ASA-1.5	5.00	2.375	2.51	0.50	3.88	4	0.625	304SS	3-5 Days	$127.00	Starting at: $127.00	PRICE QTY $127.00
ASA150-000	Flange Size ASA-1.5 Flange OD (in) 5.00 Bore (In) Blank Tube ID (in) Blank Flange Height (in) 0.50 Bolt Hole Diameter (in) 3.88 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.625 Material 304SS Ships Within 3-5 Days See more ASA150-000	ASA-1.5	5.00	Blank	Blank	0.50	3.88	4	0.625	304SS	3-5 Days	$112.00	Starting at: $112.00	PRICE QTY $112.00
ASA200-200	Flange Size ASA-2 Flange OD (in) 6.00 Bore (In) 1.875 Tube ID (in) 2.01 Flange Height (in) 0.50 Bolt Hole Diameter (in) 4.75 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA200-200	ASA-2	6.00	1.875	2.01	0.50	4.75	4	0.75	304SS	3-5 Days	$149.00	Starting at: $149.00	PRICE QTY $149.00
ASA200-250	Flange Size ASA-2 Flange OD (in) 6.00 Bore (In) 2.375 Tube ID (in) 2.51 Flange Height (in) 0.50 Bolt Hole Diameter (in) 4.75 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA200-250	ASA-2	6.00	2.375	2.51	0.50	4.75	4	0.75	304SS	3-5 Days	$149.00	Starting at: $149.00	PRICE QTY $149.00
ASA200-000	Flange Size ASA-2 Flange OD (in) 6.00 Bore (In) Blank Tube ID (in) Blank Flange Height (in) 0.50 Bolt Hole Diameter (in) 4.75 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA200-000	ASA-2	6.00	Blank	Blank	0.50	4.75	4	0.75	304SS	3-5 Days	$136.00	Starting at: $136.00	PRICE QTY $136.00
ASA200-300	Flange Size ASA-2 Flange OD (in) 6.00 Bore (In) 2.938 Tube ID (in) 3.01 Flange Height (in) 0.50 Bolt Hole Diameter (in) 4.75 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA200-300	ASA-2	6.00	2.938	3.01	0.50	4.75	4	0.75	304SS	3-5 Days	$149.00	Starting at: $149.00	PRICE QTY $149.00
ASA200-350	Flange Size ASA-2 Flange OD (in) 6.00 Bore (In) 3.438 Tube ID (in) 3.51 Flange Height (in) 0.50 Bolt Hole Diameter (in) 4.75 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA200-350	ASA-2	6.00	3.438	3.51	0.50	4.75	4	0.75	304SS	3-5 Days	$149.00	Starting at: $149.00	PRICE QTY $149.00
ASA300-300	Flange Size ASA-3 Flange OD (in) 7.50 Bore (In) 2.938 Tube ID (in) 3.01 Flange Height (in) 0.50 Bolt Hole Diameter (in) 6.00 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA300-300	ASA-3	7.50	2.938	3.01	0.50	6.00	4	0.75	304SS	3-5 Days	$168.00	Starting at: $168.00	PRICE QTY $168.00
ASA300-350	Flange Size ASA-3 Flange OD (in) 7.50 Bore (In) 3.438 Tube ID (in) 3.51 Flange Height (in) 0.50 Bolt Hole Diameter (in) 6.00 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA300-350	ASA-3	7.50	3.438	3.51	0.50	6.00	4	0.75	304SS	3-5 Days	$168.00	Starting at: $168.00	PRICE QTY $168.00
ASA300-400	Flange Size ASA-3 Flange OD (in) 7.50 Bore (In) 3.91 Tube ID (in) 4.01 Flange Height (in) 0.50 Bolt Hole Diameter (in) 6.00 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA300-400	ASA-3	7.50	3.91	4.01	0.50	6.00	4	0.75	304SS	3-5 Days	$168.00	Starting at: $168.00	PRICE QTY $168.00
ASA300-000	Flange Size ASA-3 Flange OD (in) 7.50 Bore (In) Blank Tube ID (in) Blank Flange Height (in) 0.50 Bolt Hole Diameter (in) 6.00 Number of Bolt Holes 4 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA300-000	ASA-3	7.50	Blank	Blank	0.50	6.00	4	0.75	304SS	3-5 Days	$150.00	Starting at: $150.00	PRICE QTY $150.00
ASA400-400	Flange Size ASA-4 Flange OD (in) 9.00 Bore (In) 3.91 Tube ID (in) 4.02 Flange Height (in) 0.50 Bolt Hole Diameter (in) 7.50 Number of Bolt Holes 8 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA400-400	ASA-4	9.00	3.91	4.02	0.50	7.50	8	0.75	304SS	3-5 Days	$196.00	Starting at: $196.00	PRICE QTY $196.00
ASA400-600	Flange Size ASA-4 Flange OD (in) 9.00 Bore (In) 5.875 Tube ID (in) 6.02 Flange Height (in) 0.50 Bolt Hole Diameter (in) 7.50 Number of Bolt Holes 8 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA400-600	ASA-4	9.00	5.875	6.02	0.50	7.50	8	0.75	304SS	3-5 Days	$196.00	Starting at: $196.00	PRICE QTY $196.00
ASA400-000	Flange Size ASA-4 Flange OD (in) 9.00 Bore (In) Blank Tube ID (in) Blank Flange Height (in) 0.50 Bolt Hole Diameter (in) 7.50 Number of Bolt Holes 8 Bolt Hole Circle Diameter (in) 0.75 Material 304SS Ships Within 3-5 Days See more ASA400-000	ASA-4	9.00	Blank	Blank	0.50	7.50	8	0.75	304SS	3-5 Days	$185.00	Starting at: $185.00	PRICE QTY $185.00
ASA600-000	Flange Size ASA-6 Flange OD (in) 11.00 Bore (In) Blank Tube ID (in) Blank Flange Height (in) 0.75 Bolt Hole Diameter (in) 9.50 Number of Bolt Holes 8 Bolt Hole Circle Diameter (in) 0.812 Material 304SS Ships Within 3-5 Days See more ASA600-000	ASA-6	11.00	Blank	Blank	0.75	9.50	8	0.812	304SS	3-5 Days	$295.00	Starting at: $295.00	PRICE QTY $295.00
