ASA 45 Elbow - Rotatable Flanges

Skip to the beginning of the images gallery

ASA 45 Elbow - Rotatable Flanges

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

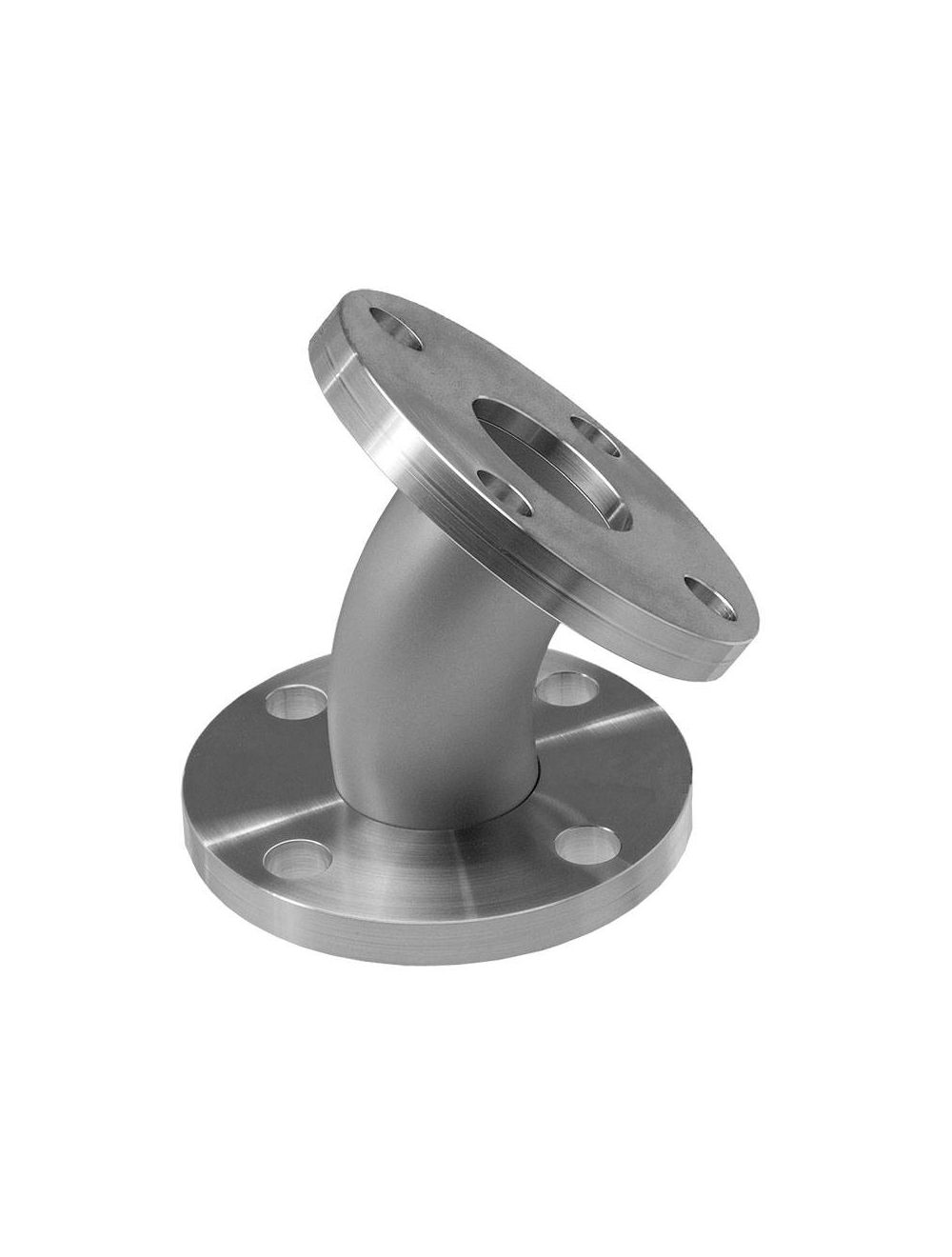

45° radius elbow are manufactured with a flange on each end of a curved section of tubing. The 45° radius elbow come with rotatable flanges which have a two piece design allowing for bolt hole rotation to assist bolt hole alignment when mating the two flanges. These elbows are made of 304 stainless steel.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

Made of 304 Stainless Steel
Radius elbow design
One fixed and one rotatable flange per fitting
O-ring groove available

Sort By

Grouped product items
PART NUMBER	Flange Size	Flange Tube OD (In)	Port Length (In)	Material	Ships Within	PRICE	ADD TO CART
ASA100-150-E45-1.78	Flange Size ASA-1 Flange Tube OD (In) 1.50 Port Length (In) 1.78 Material 304SS Ships Within 3-5 Days See more ASA100-150-E45-1.78	ASA-1	1.50	1.78	304SS	3-5 Days	$395.00	Starting at: $395.00	PRICE QTY $395.00
ASA150-200-E45-2.09	Flange Size ASA-1.5 Flange Tube OD (In) 2.00 Port Length (In) 2.09 Material 304SS Ships Within 3-5 Days See more ASA150-200-E45-2.09	ASA-1.5	2.00	2.09	304SS	3-5 Days	$434.00	Starting at: $434.00	PRICE QTY $434.00
ASA200-300-E45-3.93	Flange Size ASA-2 Flange Tube OD (In) 3.00 Port Length (In) 3.93 Material 304SS Ships Within 3-5 Days See more ASA200-300-E45-3.93	ASA-2	3.00	3.93	304SS	3-5 Days	$525.00	Starting at: $525.00	PRICE QTY $525.00
ASA300-400-E45-5.02	Flange Size ASA-3 Flange Tube OD (In) 4.00 Port Length (In) 5.03 Material 304SS Ships Within 3-5 Days See more ASA300-400-E45-5.02	ASA-3	4.00	5.03	304SS	3-5 Days	$572.00	Starting at: $572.00	PRICE QTY $572.00
ASA400-400-E45-5.02	Flange Size ASA-4 Flange Tube OD (In) 4.00 Port Length (In) 5.03 Material 304SS Ships Within 3-5 Days See more ASA400-400-E45-5.02	ASA-4	4.00	5.03	304SS	3-5 Days	$601.00	Starting at: $601.00	PRICE QTY $601.00
