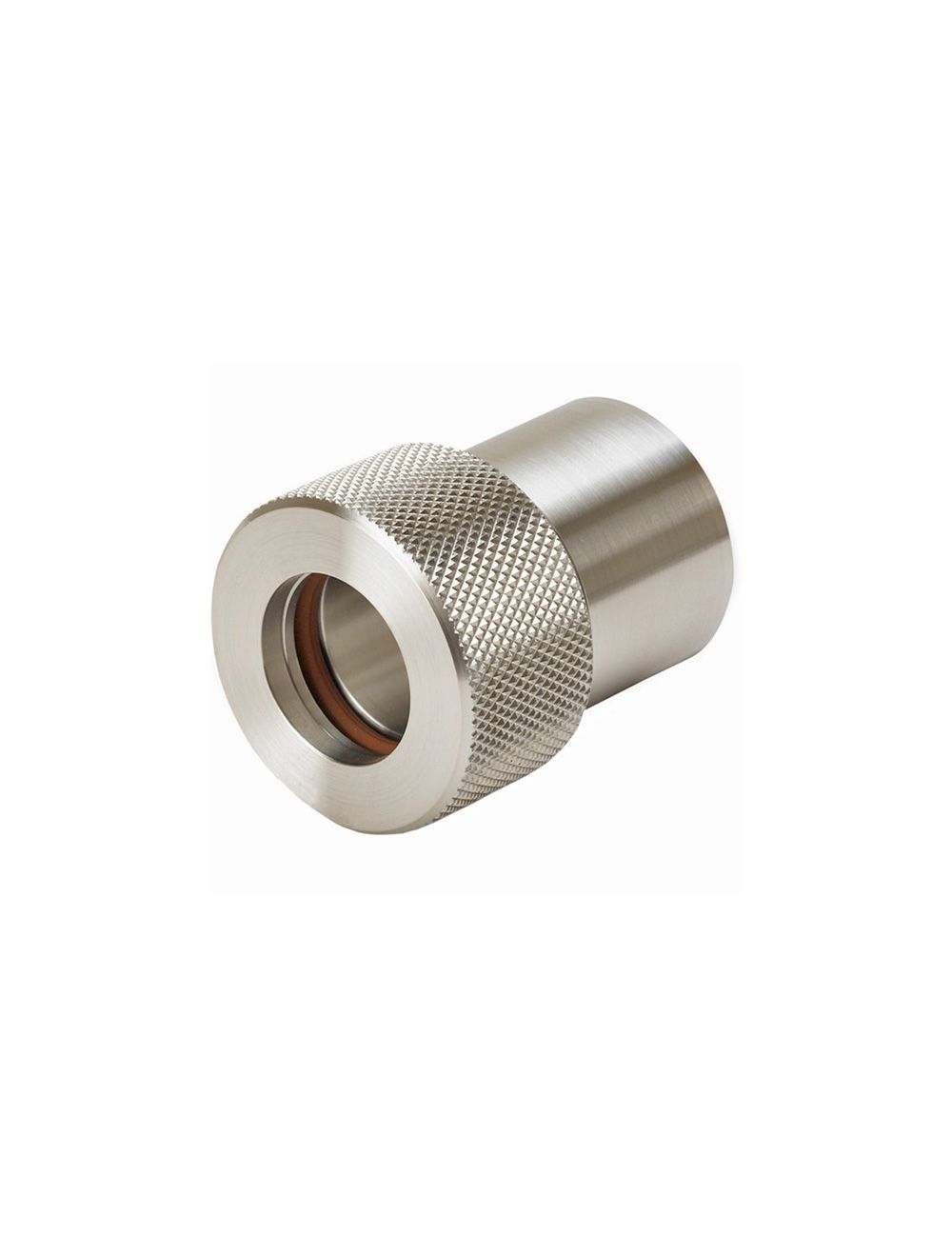

Thin Wall Disconnect Assemblies (Couplings)

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

Thin Wall Quick Disconnects are specifically designed for cases where the body needs to undergo welding or brazing to connect to the vacuum system, particularly if the body is made of brass. These Quick Disconnects employ Buna-N® or Viton® seals. For the construction of Thin Wall Quick Disconnects, the body, plug, and retaining ring are crafted from 304 Stainless Steel, while the nut is manufactured using 303 Stainless Steel.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

Vacuum Environment: 1×10^-8 Torr
Material: 304 stainless steel
O-Ring Material: NBR Standard, FKM Available

Sort By

Grouped product items
PART NUMBER	Quick Disconnect Tube OD (in)	Nut OD (in)	Quick Disconnect Height (in)	Nut Height (in)	Wall Thickness (in)	Accepts Tube OD (in)	Material	Ships Within	PRICE	ADD TO CART
18-QDTN-1.32	Quick Disconnect Tube OD (in) 0.38 Nut OD (in) 0.63 Quick Disconnect Height (in) 1.32 Nut Height (in) 0.63 Wall Thickness (in) 0.865 Accepts Tube OD (in) 0.187 Material 304SS Ships Within 3 Days See more 18-QDTN-1.32	0.38	0.63	1.32	0.63	0.865	0.187	304SS	3 Days	$44.00	Starting at: $44.00	PRICE QTY $44.00
25-QDTN-1.32	Quick Disconnect Tube OD (in) 0.38 Nut OD (in) 0.62 Quick Disconnect Height (in) 1.32 Nut Height (in) 0.63 Wall Thickness (in) 0.118 Accepts Tube OD (in) 0.250 Material 304SS Ships Within 3 Days See more 25-QDTN-1.32	0.38	0.62	1.32	0.63	0.118	0.250	304SS	3 Days	$44.00	Starting at: $44.00	PRICE QTY $44.00
31-QDTN-1.32	Quick Disconnect Tube OD (in) 0.50 Nut OD (in) 0.88 Quick Disconnect Height (in) 1.32 Nut Height (in) 0.63 Wall Thickness (in) 0.086 Accepts Tube OD (in) 0.312 Material 304SS Ships Within 3 Days See more 31-QDTN-1.32	0.50	0.88	1.32	0.63	0.086	0.312	304SS	3 Days	$46.00	Starting at: $46.00	PRICE QTY $46.00
38-QDTN-1.32	Quick Disconnect Tube OD (in) 0.50 Nut OD (in) 0.88 Quick Disconnect Height (in) 1.32 Nut Height (in) 0.63 Wall Thickness (in) 0.055 Accepts Tube OD (in) 0.375 Material 304SS Ships Within 3 Days See more 38-QDTN-1.32	0.50	0.88	1.32	0.63	0.055	0.375	304SS	3 Days	$46.00	Starting at: $46.00	PRICE QTY $46.00
50-QDTN-1.32	Quick Disconnect Tube OD (in) 0.63 Nut OD (in) 0.88 Quick Disconnect Height (in) 1.32 Nut Height (in) 0.63 Wall Thickness (in) 0.055 Accepts Tube OD (in) 0.500 Material 304SS Ships Within 3 Days See more 50-QDTN-1.32	0.63	0.88	1.32	0.63	0.055	0.500	304SS	3 Days	$48.00	Starting at: $48.00	PRICE QTY $48.00
62-QDTN-1.51	Quick Disconnect Tube OD (in) 0.75 Nut OD (in) 1.19 Quick Disconnect Height (in) 1.51 Nut Height (in) 0.75 Wall Thickness (in) 0.055 Accepts Tube OD (in) 0.625 Material 304SS Ships Within 3 Days See more 62-QDTN-1.51	0.75	1.19	1.51	0.75	0.055	0.625	304SS	3 Days	$52.00	Starting at: $52.00	PRICE QTY $52.00
75-QDTN-1.63	Quick Disconnect Tube OD (in) 0.88 Nut OD (in) 1.38 Quick Disconnect Height (in) 1.63 Nut Height (in) 0.75 Wall Thickness (in) 0.055 Accepts Tube OD (in) 0.750 Material 304SS Ships Within 3 Days See more 75-QDTN-1.63	0.88	1.38	1.63	0.75	0.055	0.750	304SS	3 Days	$63.00	Starting at: $63.00	PRICE QTY $63.00
87-QDTN-1.63	Quick Disconnect Tube OD (in) 1.00 Nut OD (in) 1.37 Quick Disconnect Height (in) 1.63 Nut Height (in) 0.75 Wall Thickness (in) 0.055 Accepts Tube OD (in) 0.880 Material 304SS Ships Within 3 Days See more 87-QDTN-1.63	1.00	1.37	1.63	0.75	0.055	0.880	304SS	3 Days	$63.00	Starting at: $63.00	PRICE QTY $63.00
100-QDTN-1.88	Quick Disconnect Tube OD (in) 1.13 Nut OD (in) 1.63 Quick Disconnect Height (in) 1.88 Nut Height (in) 0.75 Wall Thickness (in) 0.055 Accepts Tube OD (in) 1.000 Material 304SS Ships Within 3 Days See more 100-QDTN-1.88	1.13	1.63	1.88	0.75	0.055	1.000	304SS	3 Days	$76.00	Starting at: $76.00	PRICE QTY $76.00
112-QDTN-1.88	Quick Disconnect Tube OD (in) 1.25 Nut OD (in) 1.88 Quick Disconnect Height (in) 1.88 Nut Height (in) 0.75 Wall Thickness (in) 0.055 Accepts Tube OD (in) 1.125 Material 304SS Ships Within 3 Days See more 112-QDTN-1.88	1.25	1.88	1.88	0.75	0.055	1.125	304SS	3 Days	$81.00	Starting at: $81.00	PRICE QTY $81.00
125-QDTN-2.00	Quick Disconnect Tube OD (in) 1.50 Nut OD (in) 1.88 Quick Disconnect Height (in) 2.01 Nut Height (in) 0.75 Wall Thickness (in) 0.118 Accepts Tube OD (in) 1.250 Material 304SS Ships Within 3 Days See more 125-QDTN-2.00	1.50	1.88	2.01	0.75	0.118	1.250	304SS	3 Days	$99.00	Starting at: $99.00	PRICE QTY $99.00
138-QDTN-2.13	Quick Disconnect Tube OD (in) 1.63 Nut OD (in) 2.00 Quick Disconnect Height (in) 2.13 Nut Height (in) 0.88 Wall Thickness (in) 0.118 Accepts Tube OD (in) 1.375 Material 304SS Ships Within 3 Days See more 138-QDTN-2.13	1.63	2.00	2.13	0.88	0.118	1.375	304SS	3 Days	$145.00	Starting at: $145.00	PRICE QTY $145.00
150-QDTN-2.25	Quick Disconnect Tube OD (in) 1.75 Nut OD (in) 2.25 Quick Disconnect Height (in) 2.25 Nut Height (in) 0.88 Wall Thickness (in) 0.118 Accepts Tube OD (in) 1.500 Material 304SS Ships Within 3 Days See more 150-QDTN-2.25	1.75	2.25	2.25	0.88	0.118	1.500	304SS	3 Days	$152.00	Starting at: $152.00	PRICE QTY $152.00
162-QDTN-2.25	Quick Disconnect Tube OD (in) 1.88 Nut OD (in) 2.38 Quick Disconnect Height (in) 2.25 Nut Height (in) 0.88 Wall Thickness (in) 0.118 Accepts Tube OD (in) 1.625 Material 304SS Ships Within 3 Days See more 162-QDTN-2.25	1.88	2.38	2.25	0.88	0.118	1.625	304SS	3 Days	$171.00	Starting at: $171.00	PRICE QTY $171.00
200-QDTN-2.30	Quick Disconnect Tube OD (in) 2.25 Nut OD (in) 2.75 Quick Disconnect Height (in) 2.26 Nut Height (in) 0.88 Wall Thickness (in) 0.242 Accepts Tube OD (in) 2.000 Material 304SS Ships Within 3 Days See more 200-QDTN-2.30	2.25	2.75	2.26	0.88	0.242	2.000	304SS	3 Days	$184.00	Starting at: $184.00	PRICE QTY $184.00
