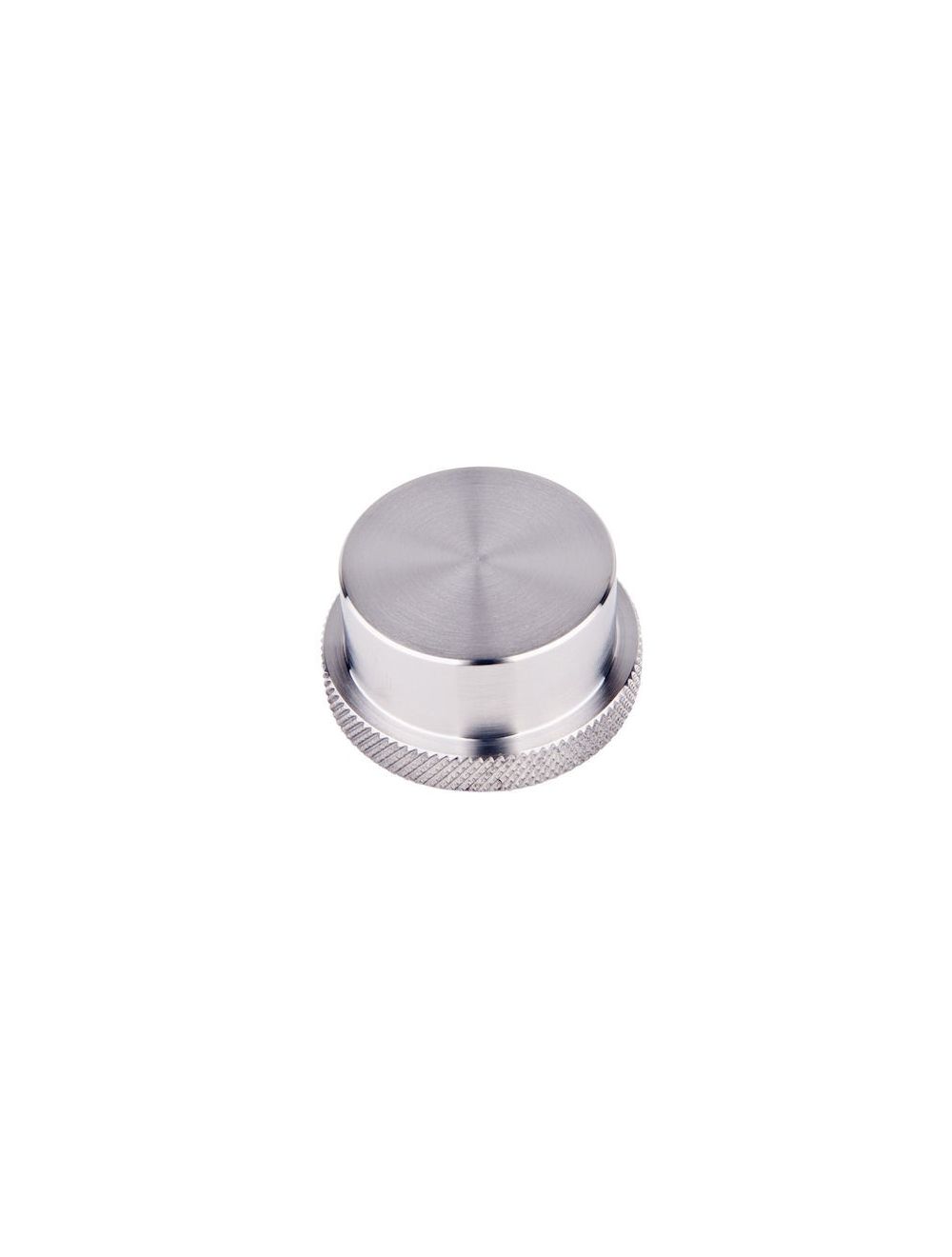

Thick Wall Blank Plugs

Skip to the beginning of the images gallery

Thick Wall Blank Plugs

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

Thick Wall Quick Disconnects find application when the body needs to be soldered to the vacuum system. Couplings facilitate the connection of a single (glass or metal) tube to the vacuum system, while unions are employed to join two (glass or metal) tubes together. Buna-N® or Viton® seals are utilized in Quick Disconnects. The Thick Wall Quick Disconnects are constructed with 304 Stainless Steel for the body, plug, and retaining ring, while the nut is made from 303 Stainless Steel.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

Vacuum Environment: 1×10^-8 Torr
Material: 304 stainless steel

Sort By

Grouped product items
PART NUMBER	Plug OD (in)	Nut Height (in)	Accepts Tube OD (in)	Nut Height (in)	Material	Ships Within	PRICE	ADD TO CART
06-QDBP-0.75	Plug OD (in) 0.375 Nut Height (in) 0.25 Accepts Tube OD (in) 0.063 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 06-QDBP-0.75	0.375	0.25	0.063	0.75	304SS	3 Days	$19.00	Starting at: $19.00	PRICE QTY $19.00
12-QDBP-0.75	Plug OD (in) 0.375 Nut Height (in) 0.25 Accepts Tube OD (in) 0.125 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 12-QDBP-0.75	0.375	0.25	0.125	0.75	304SS	3 Days	$21.79	Starting at: $21.79	PRICE QTY $21.79
100-QDBP-0.75	Plug OD (in) 1.25 Nut Height (in) 0.25 Accepts Tube OD (in) 1.000 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 100-QDBP-0.75	1.25	0.25	1.000	0.75	304SS	3 Days	$38.60	Starting at: $38.60	PRICE QTY $38.60
112-QDBP-0.75	Plug OD (in) 1.375 Nut Height (in) 0.25 Accepts Tube OD (in) 1.125 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 112-QDBP-0.75	1.375	0.25	1.125	0.75	304SS	3 Days	$31.00	Starting at: $31.00	PRICE QTY $31.00
125-QDBP-0.75	Plug OD (in) 1.5 Nut Height (in) 0.25 Accepts Tube OD (in) 1.250 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 125-QDBP-0.75	1.5	0.25	1.250	0.75	304SS	3 Days	$31.00	Starting at: $31.00	PRICE QTY $31.00
138-QDBP-0.75	Plug OD (in) 1.625 Nut Height (in) 0.25 Accepts Tube OD (in) 1.375 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 138-QDBP-0.75	1.625	0.25	1.375	0.75	304SS	3 Days	$31.00	Starting at: $31.00	PRICE QTY $31.00
150-QDBP-0.75	Plug OD (in) 1.75 Nut Height (in) 0.25 Accepts Tube OD (in) 1.500 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 150-QDBP-0.75	1.75	0.25	1.500	0.75	304SS	3 Days	$44.00	Starting at: $44.00	PRICE QTY $44.00
162-QDBP-0.75	Plug OD (in) 1.875 Nut Height (in) 0.25 Accepts Tube OD (in) 1.625 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 162-QDBP-0.75	1.875	0.25	1.625	0.75	304SS	3 Days	$44.00	Starting at: $44.00	PRICE QTY $44.00
18-QDBP-0.75	Plug OD (in) 0.375 Nut Height (in) 0.25 Accepts Tube OD (in) 0.188 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 18-QDBP-0.75	0.375	0.25	0.188	0.75	304SS	3 Days	$19.00	Starting at: $19.00	PRICE QTY $19.00
25-QDBP-0.75	Plug OD (in) 0.5 Nut Height (in) 0.25 Accepts Tube OD (in) 0.250 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 25-QDBP-0.75	0.5	0.25	0.250	0.75	304SS	3 Days	$19.00	Starting at: $19.00	PRICE QTY $19.00
31-QDBP-0.75	Plug OD (in) 0.625 Nut Height (in) 0.25 Accepts Tube OD (in) 0.313 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 31-QDBP-0.75	0.625	0.25	0.313	0.75	304SS	3 Days	$21.79	Starting at: $21.79	PRICE QTY $21.79
38-QDBP-0.75	Plug OD (in) 0.625 Nut Height (in) 0.25 Accepts Tube OD (in) 0.375 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 38-QDBP-0.75	0.625	0.25	0.375	0.75	304SS	3 Days	$21.79	Starting at: $21.79	PRICE QTY $21.79
50-QDBP-0.75	Plug OD (in) 0.75 Nut Height (in) 0.25 Accepts Tube OD (in) 0.500 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 50-QDBP-0.75	0.75	0.25	0.500	0.75	304SS	3 Days	$21.79	Starting at: $21.79	PRICE QTY $21.79
62-QDBP-0.75	Plug OD (in) 0.875 Nut Height (in) 0.25 Accepts Tube OD (in) 0.625 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 62-QDBP-0.75	0.875	0.25	0.625	0.75	304SS	3 Days	$24.00	Starting at: $24.00	PRICE QTY $24.00
75-QDBP-0.75	Plug OD (in) 1 Nut Height (in) 0.25 Accepts Tube OD (in) 0.750 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 75-QDBP-0.75	1	0.25	0.750	0.75	304SS	3 Days	$32.00	Starting at: $32.00	PRICE QTY $32.00
87-QDBP-0.75	Plug OD (in) 1.125 Nut Height (in) 0.25 Accepts Tube OD (in) 0.875 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 87-QDBP-0.75	1.125	0.25	0.875	0.75	304SS	3 Days	$24.00	Starting at: $24.00	PRICE QTY $24.00
200-QDBP-0.75	Plug OD (in) 2.25 Nut Height (in) 0.25 Accepts Tube OD (in) 2.000 Nut Height (in) 0.75 Material 304SS Ships Within 3 Days See more 200-QDBP-0.75	2.25	0.25	2.000	0.75	304SS	3 Days	$47.00	Starting at: $47.00	PRICE QTY $47.00
