ConFlat (CF) Copper Gaskets

Skip to the beginning of the images gallery

ConFlat (CF) Copper Gaskets

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

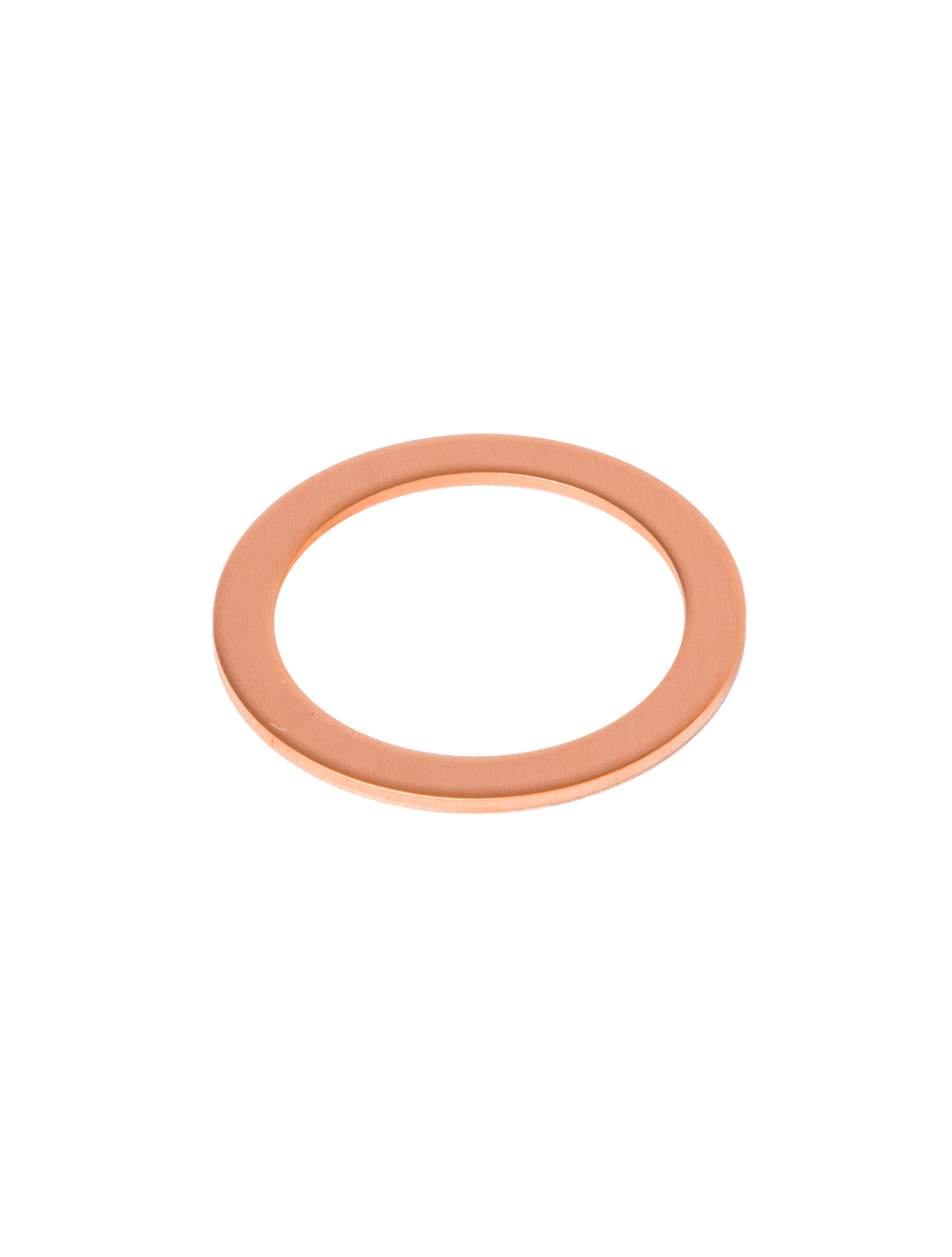

The copper gasket is captured between mating CF flanges. Copper gaskets are made from high-purity, oxygen free 1/4 hard copper which is de-burred, chemically treated and individually packaged to avoid oxidation. If you are operating at a pressure below 10-8 torr, o-ring sealed compression ports limit the system pressure because of leakage and permeation.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

Gaskets systems are oxygen free electronic grade (OFE)
Single-use seal
Temp Range: -200°C up to 450°C

Sort By

Grouped product items
PART NUMBER	Flange Size	Pack Quantity	Flange OD (In)	Inner Diameter (In)	Outer Diameter (In)	Ships Within	PRICE	ADD TO CART
CF133-GA-CO	Flange Size DN16CF Pack Quantity 10 Flange OD (In) 1.33 Inner Diameter (In) 0.640 Outer Diameter (In) 0.835 Ships Within 3-5 Days See more CF133-GA-CO	DN16CF	10	1.33	0.640	0.835	3-5 Days	$22.00	Starting at: $22.00	PRICE QTY $22.00
CF212-GA-CO	Flange Size DN25CF Pack Quantity 10 Flange OD (In) 2.12 Inner Diameter (In) 1.010 Outer Diameter (In) 1.290 Ships Within 3-5 Days See more CF212-GA-CO	DN25CF	10	2.12	1.010	1.290	3-5 Days	$25.00	Starting at: $25.00	PRICE QTY $25.00
CF275-175-GA-CO	Flange Size DN40CF Pack Quantity 10 Flange OD (In) 2.75 Inner Diameter (In) 1.530 Outer Diameter (In) 1.895 Ships Within 3-5 Days See more CF275-175-GA-CO	DN40CF	10	2.75	1.530	1.895	3-5 Days	$32.00	Starting at: $32.00	PRICE QTY $32.00
CF275-GA-CO	Flange Size DN40CF Pack Quantity 10 Flange OD (In) 2.75 Inner Diameter (In) 1.450 Outer Diameter (In) 1.895 Ships Within 3-5 Days See more CF275-GA-CO	DN40CF	10	2.75	1.450	1.895	3-5 Days	$28.00	Starting at: $28.00	PRICE QTY $28.00
CF275-GA-CO-SD	Flange Size DN40CF Pack Quantity 10 Flange OD (In) 2.75 Inner Diameter (In) 0.000 Outer Diameter (In) 1.895 Ships Within 3-5 Days See more CF275-GA-CO-SD	DN40CF	10	2.75	0.000	1.895	3-5 Days	$35.00	Starting at: $35.00	PRICE QTY $35.00
CF338-GA-CO	Flange Size DN50CF Pack Quantity 10 Flange OD (In) 3.38 Inner Diameter (In) 2.010 Outer Diameter (In) 2.420 Ships Within 3-5 Days See more CF338-GA-CO	DN50CF	10	3.38	2.010	2.420	3-5 Days	$37.00	Starting at: $37.00	PRICE QTY $37.00
CF450-GA-CO	Flange Size DN63CF Pack Quantity 10 Flange OD (In) 4.50 Inner Diameter (In) 2.505 Outer Diameter (In) 3.240 Ships Within 3-5 Days See more CF450-GA-CO	DN63CF	10	4.50	2.505	3.240	3-5 Days	$57.00	Starting at: $57.00	PRICE QTY $57.00
CF462-GA-CO	Flange Size DN75CF Pack Quantity 10 Flange OD (In) 4.62 Inner Diameter (In) 3.010 Outer Diameter (In) 3.600 Ships Within 3-5 Days See more CF462-GA-CO	DN75CF	10	4.62	3.010	3.600	3-5 Days	$60.00	Starting at: $60.00	PRICE QTY $60.00
CF600-GA-CO	Flange Size DN100CF Pack Quantity 10 Flange OD (In) 6.00 Inner Diameter (In) 4.010 Outer Diameter (In) 4.740 Ships Within 3-5 Days See more CF600-GA-CO	DN100CF	10	6.00	4.010	4.740	3-5 Days	$74.50	Starting at: $74.50	PRICE QTY $74.50
CF675-GA-CO	Flange Size DN125CF Pack Quantity 10 Flange OD (In) 6.75 Inner Diameter (In) 5.000 Outer Diameter (In) 5.560 Ships Within 3-5 Days See more CF675-GA-CO	DN125CF	10	6.75	5.000	5.560	3-5 Days	$79.00	Starting at: $79.00	PRICE QTY $79.00
CF800-GA-CO	Flange Size DN160CF Pack Quantity 10 Flange OD (In) 8.00 Inner Diameter (In) 6.010 Outer Diameter (In) 6.740 Ships Within 3-5 Days See more CF800-GA-CO	DN160CF	10	8.00	6.010	6.740	3-5 Days	$88.65	Starting at: $88.65	PRICE QTY $88.65
CF1000-GA-CO	Flange Size DN200CF Pack Quantity 10 Flange OD (In) 10.00 Inner Diameter (In) 8.010 Outer Diameter (In) 8.740 Ships Within 3-5 Days See more CF1000-GA-CO	DN200CF	10	10.00	8.010	8.740	3-5 Days	$104.00	Starting at: $104.00	PRICE QTY $104.00
CF1200-GA-CO	Flange Size DN250CF Pack Quantity 1 Flange OD (In) 12.00 Inner Diameter (In) 10.000 Outer Diameter (In) 10.740 Ships Within 3-5 Days See more CF1200-GA-CO	DN250CF	1	12.00	10.000	10.740	3-5 Days	$65.00	Starting at: $65.00	PRICE QTY $65.00
CF1325-GA-CO	Flange Size DN275CF Pack Quantity 1 Flange OD (In) 13.25 Inner Diameter (In) 10.890 Outer Diameter (In) 11.575 Ships Within 3-5 Days See more CF1325-GA-CO	DN275CF	1	13.25	10.890	11.575	3-5 Days	$57.00	Starting at: $57.00	PRICE QTY $57.00
CF1400-GA-CO	Flange Size DN300CF Pack Quantity 1 Flange OD (In) 14.00 Inner Diameter (In) 11.800 Outer Diameter (In) 12.310 Ships Within 3-5 Days See more CF1400-GA-CO	DN300CF	1	14.00	11.800	12.310	3-5 Days	$65.00	Starting at: $65.00	PRICE QTY $65.00
CF1650-GA-CO	Flange Size DN350CF Pack Quantity 1 Flange OD (In) 16.50 Inner Diameter (In) 14.135 Outer Diameter (In) 14.810 Ships Within 3-5 Days See more CF1650-GA-CO	DN350CF	1	16.50	14.135	14.810	3-5 Days	$75.00	Starting at: $75.00	PRICE QTY $75.00
