Gencoa GRS-C
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.

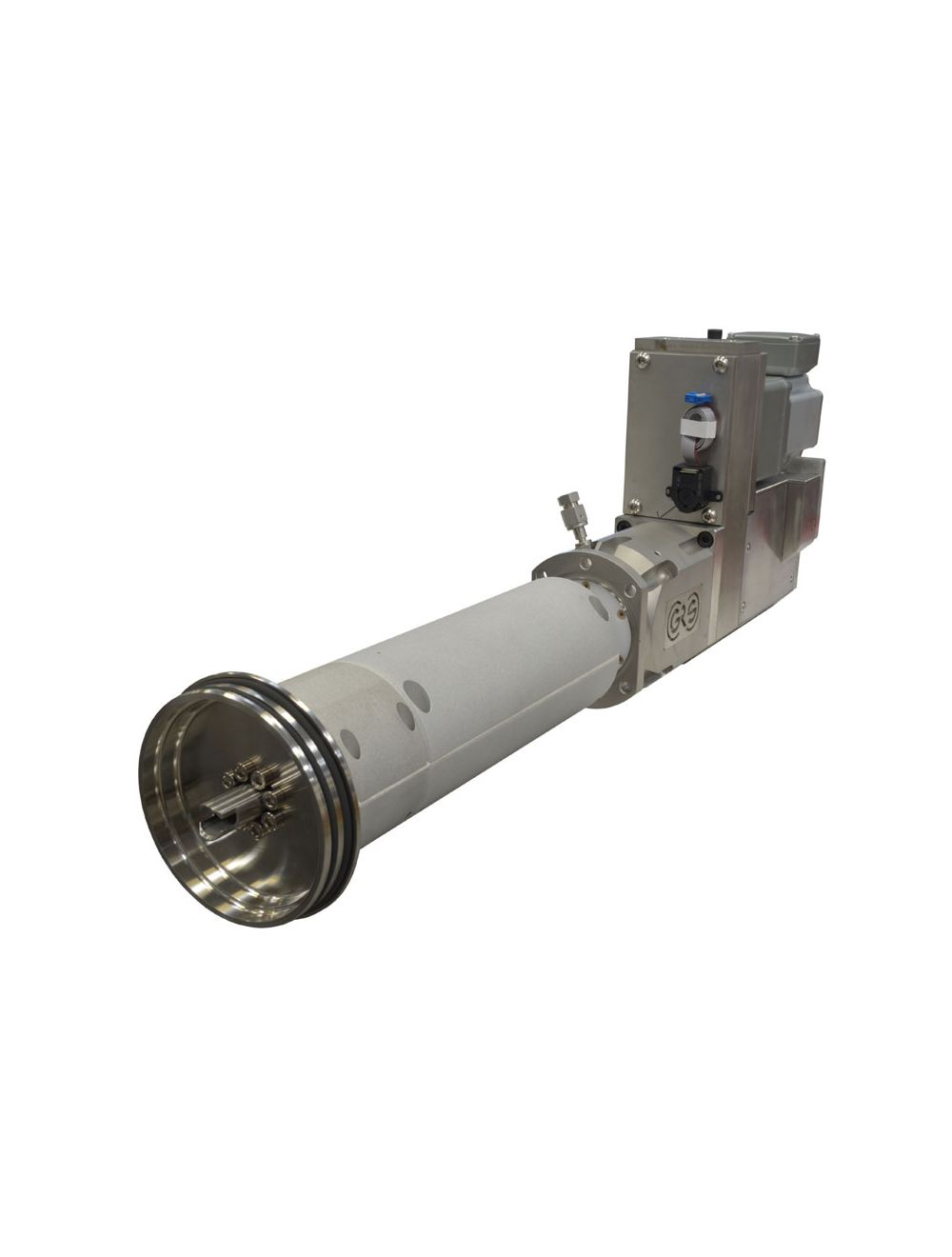

The Gencoa GRS-C is a cantilever-mounted rotatable magnetron by Gencoa which combines high load bearing and power delivery. The GRS-C is for horizontal drum type web coating machines with the end-block located outside the chamber side wall, and the target rotating within the chamber
PERFORMANCE & SPECIFICATIONS
- Benefits
- Target lengths of up to 1.2m as a horizontal cantilever, and up to 2.4m with outbound support
- Port mounted externally to chamber
- Accommodation of Ø90mm, Ø100mm, Ø125mm & Ø152-165mm targets
- 3/4" ID water connections for high flow
- DC motor drive with RS-485 interface and possible PLC integration
- High current Harting connection
- Manual or motorised array positioning for multiple substrate location or target cleaning
- Operational speed up to 15RPM
- Technical Sheets
