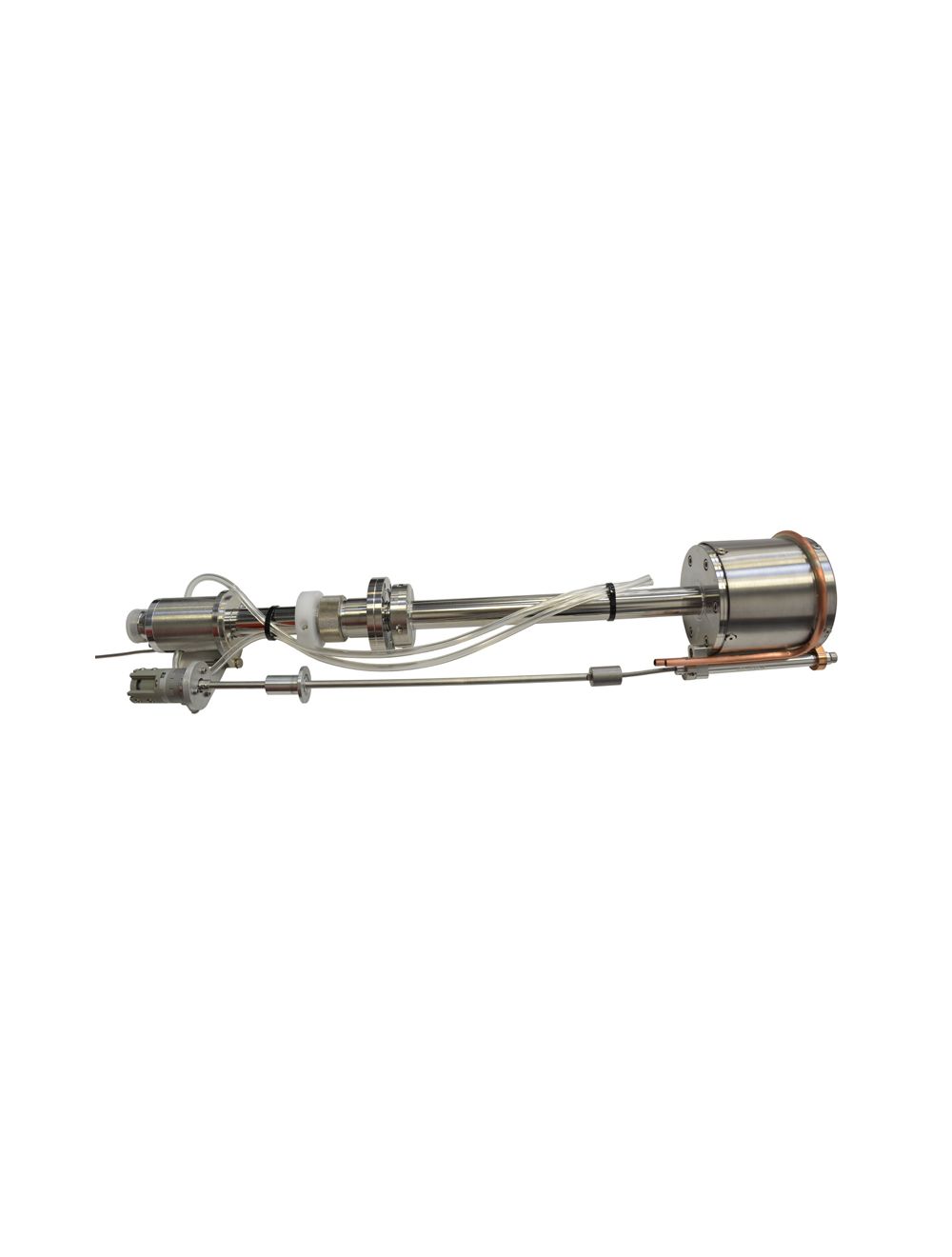

Gencoa 3G Circular
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.
The 3G circular range of HV sources from Gencoa caters for applications from R&D to small scale production. With minimal use of polymer and newly-developed magnetics, the sources can perform in the 10-6 Torr range, delivering improvements to the deposition rate, reduced arcing, fewer impurities and a higher density coating. The sources can be fitted with a choice of magnetic and mechanical options, leading to performance benefits appropriate for differing applications, and are built to reliably work with DC, RF, pulsed DC and HiPIMS power supplies. High yield (HY) magnetics can be fitted to target diameters of 4” and above for sputtering of precious metals, delivering target usage of 40%
PERFORMANCE & SPECIFICATIONS
- Benefits
- Low pressure sputtering (10-6 to 10-2 torr)
- ± 45º tilt angle adjustment (1° accuracy)
- Standard target sizes
- High yield (HY) magnetics available for 4" and 5" target diameters, delivering >40% target usage
- Internal gas injection as standard
- Rear utility box as standard for RF and HIPIMS
- Easy target change and choice of target thickness (1-6mm)
- High strength magnetics for sputtering of magnetic material
- Indirect or direct target cooling (pre-configured)
