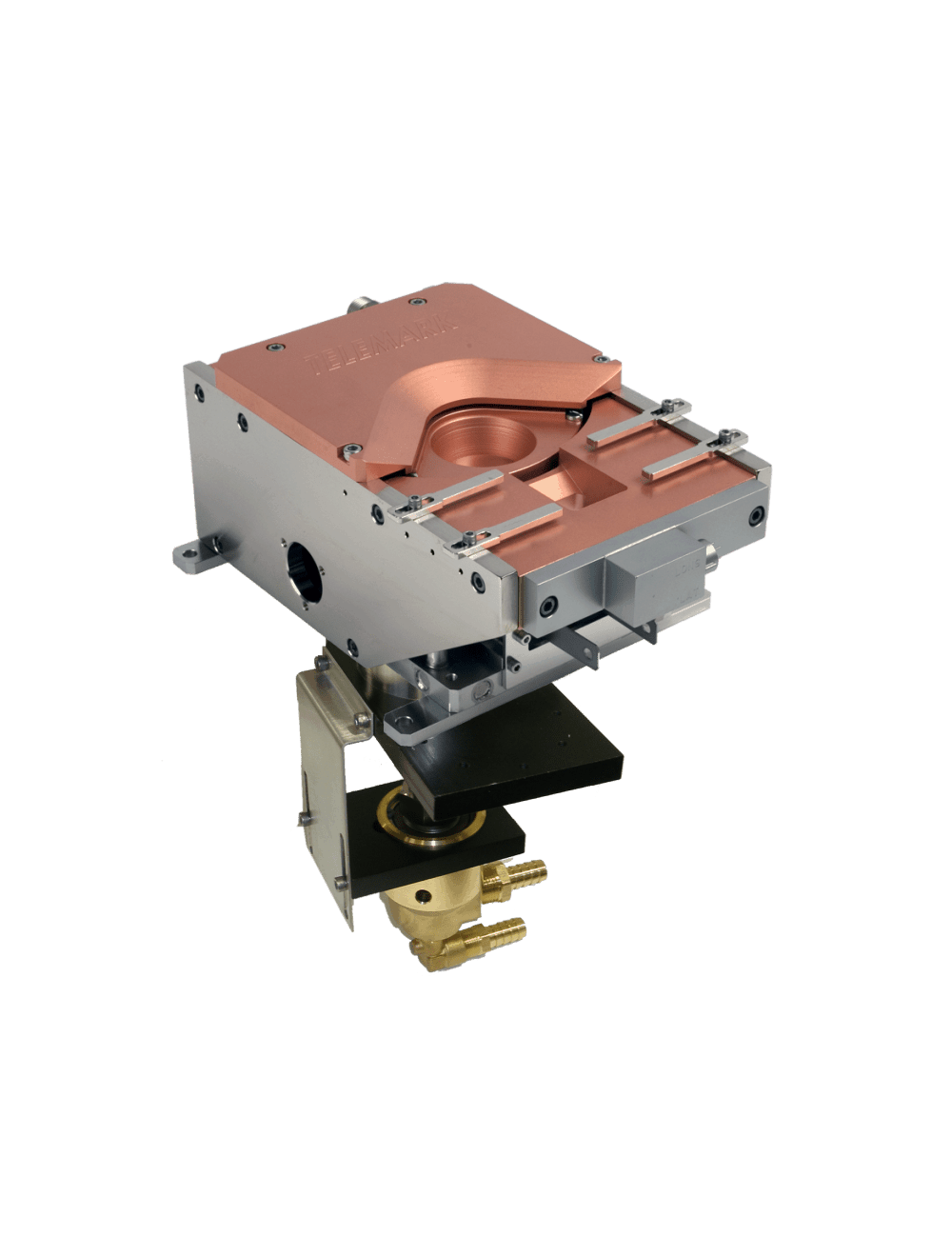

Telemark 299 Near UHV Multi-Pocket Source
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.
The 299 model near UHV (10-9 torr) e beam sources (e-gun) are supplied with magnetic fluid feedthrough rotation assemblies. These sources utilize 270⁰ beam deflection. Installation kits, source shutters and pocket indexers can be supplied.
PERFORMANCE & SPECIFICATIONS
- Benefits
- E-Beam Deflection: 270°
- Power Rating: 10 kW*
- High Voltage Range: -6 kV to -10 kV
- Lateral Coil Resistance: 3.0 ohms
- Long. Coil Resistance: 9.6 ohms
- Water Requirements: 3 gpm(min.)@ 60°F
- Technical Sheets
| PART NUMBER | Number of Pocket Crucibles | Crucible Diameter (in) | Crucible Depth (in) | Ships Within | REQUEST FOR QUOTE |
|---|
