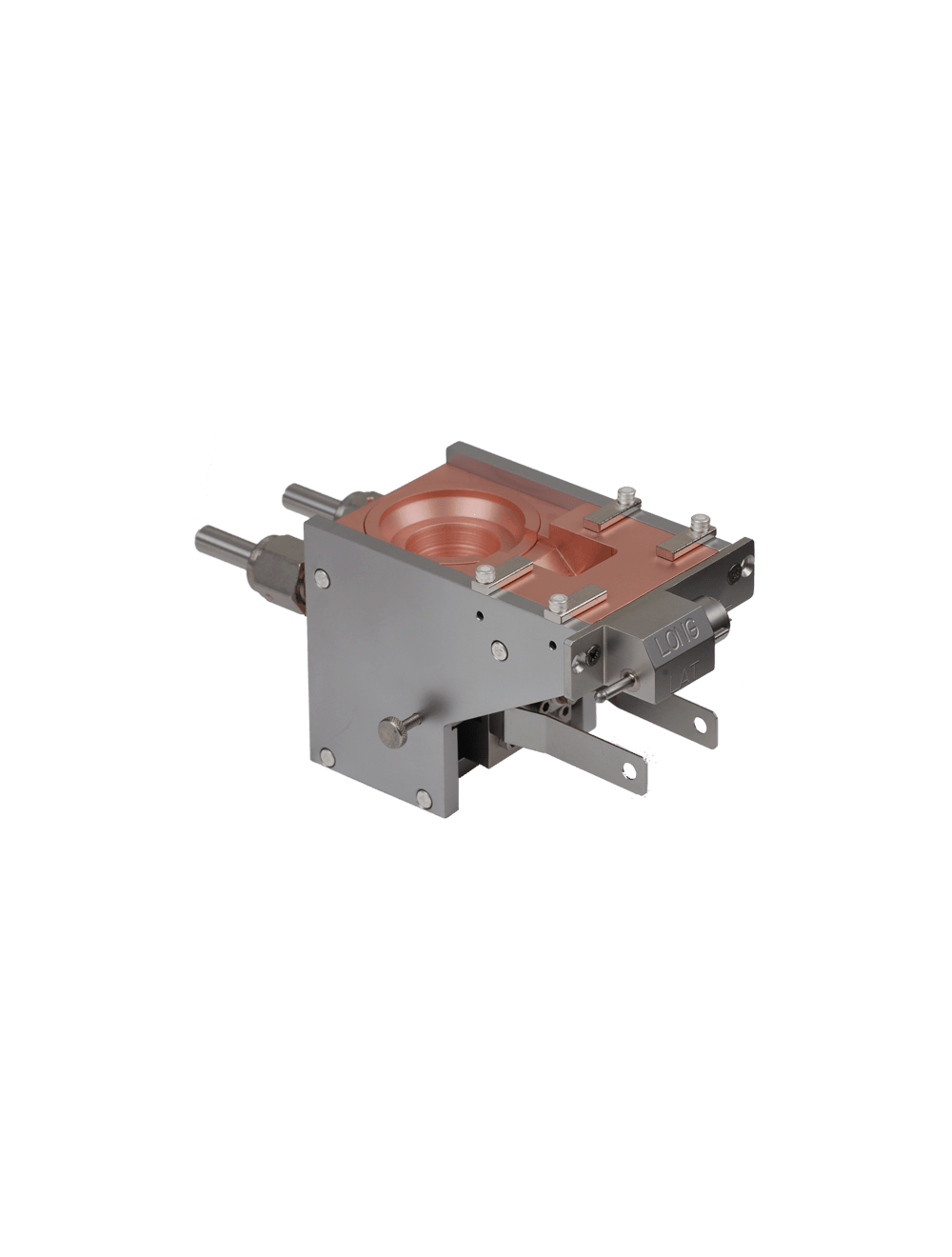

Telemark 211 Single Pocket Source

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

The single pocket e-beam sources range from 1.5cc to 160cc. These single pocket source offerings include High Vacuum (10-7 torr) and Ultra High Vacuum (10-11 torr) models. Installation kits and source shutters can be supplied.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

E-Beam Deflection: 270°
Power Rating: 6 kW*
High Voltage Range: -6 kV to -10 kV
Lateral Coil Resistance: 7.5 ohms
Long. Coil Resistance: 9.5 ohms
Water Requirements: 2 gpm(min.)@ 60°F

Technical Sheets
- 211 SINGLE POCKET SOURCE

Sort By

Grouped product items
PART NUMBER	Crucible Diameter (in)	Crucible Depth (in)	Ships Within	REQUEST FOR QUOTE
211-9905-2	Crucible Diameter (in) 0.70 Crucible Depth (in) 0.40 Ships Within 4-6 Weeks See more 211-9905-2	0.70	0.40	4-6 Weeks
211-9904-2	Crucible Diameter (in) 0.89 Crucible Depth (in) 0.58 Ships Within 4-6 Weeks See more 211-9904-2	0.89	0.58	4-6 Weeks
211-9907-2	Crucible Diameter (in) 1.13 Crucible Depth (in) 0.50 Ships Within 4-6 Weeks See more 211-9907-2	1.13	0.50	4-6 Weeks
211-9915-2	Crucible Diameter (in) 1.49 Crucible Depth (in) 0.67 Ships Within 4-6 Weeks See more 211-9915-2	1.49	0.67	4-6 Weeks
