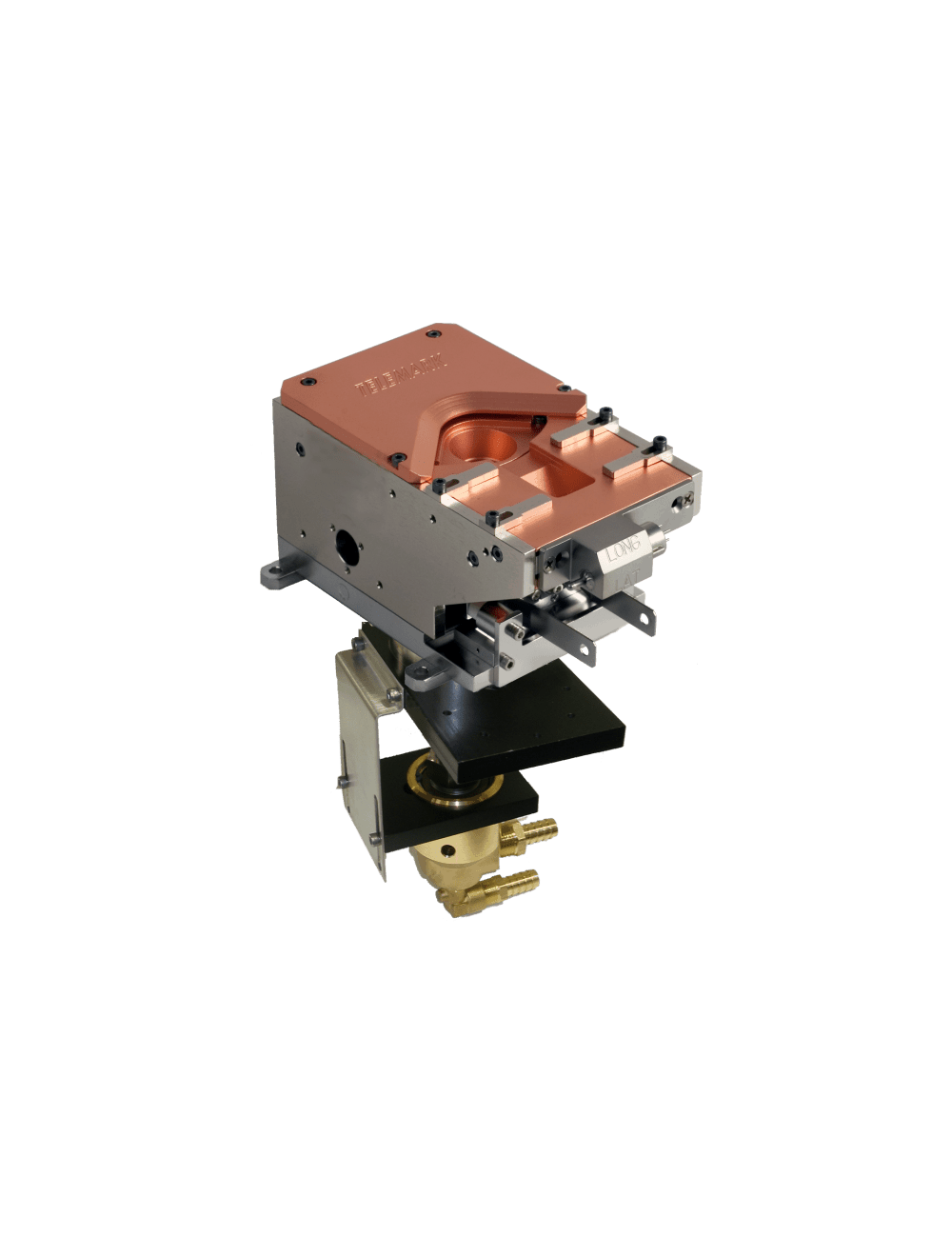

Telemark 246 R&D Multi-Pocket Source

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

The R&D multi-pocket electron beam sources come in sizes of 2cc, 4cc and 7cc. Vacuum compatibility of 10-7 torr and utilizing 270⁰ beam deflection, the sources are state-of-the-art in small E-beam technology. Installation kits, source shutters and pocket indexers can be supplied.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Benefits

E-Beam Deflection: 270°
Power Rating: 6 kW*
High Voltage Range: -6 kV to -10 kV
Lateral Coil Resistance: 7.5 ohms
Long. Coil Resistance: 9.5 ohms
Water Requirements: 2 gpm(min.)@ 60°F

Technical Sheets
- 246 R&D MULTI-POCKET SOURCE

Sort By

Grouped product items
PART NUMBER	Number of Pocket Crucibles	Crucible Diameter (in)	Crucible Depth (in)	Feedthrough Diameter (in)	Ships Within	REQUEST FOR QUOTE
246-9964-2	Number of Pocket Crucibles 4 Crucible Diameter (in) 0.89 Crucible Depth (in) 0.58 Feedthrough Diameter (in) 1.25 Ships Within 4-6 Weeks See more 246-9964-2	4	0.89	0.58	1.25	4-6 Weeks
246-9966-1	Number of Pocket Crucibles 6 Crucible Diameter (in) 0.89 Crucible Depth (in) 0.58 Feedthrough Diameter (in) 1.00 Ships Within 4-6 Weeks See more 246-9966-1	6	0.89	0.58	1.00	4-6 Weeks
246-9966-2	Number of Pocket Crucibles 6 Crucible Diameter (in) 0.89 Crucible Depth (in) 0.58 Feedthrough Diameter (in) 1.25 Ships Within 4-6 Weeks See more 246-9966-2	6	0.89	0.58	1.25	4-6 Weeks
246-9906-1	Number of Pocket Crucibles 6 Crucible Diameter (in) 1.13 Crucible Depth (in) 0.50 Feedthrough Diameter (in) 1.00 Ships Within 4-6 Weeks See more 246-9906-1	6	1.13	0.50	1.00	4-6 Weeks
246-9964-1	Number of Pocket Crucibles 4 Crucible Diameter (in) 0.89 Crucible Depth (in) 0.58 Feedthrough Diameter (in) 1.00 Ships Within 4-6 Weeks See more 246-9964-1	4	0.89	0.58	1.00	4-6 Weeks
246-9906-2	Number of Pocket Crucibles 6 Crucible Diameter (in) 1.13 Crucible Depth (in) 0.50 Feedthrough Diameter (in) 1.25 Ships Within 4-6 Weeks See more 246-9906-2	6	1.13	0.50	1.25	4-6 Weeks
246-9928-1	Number of Pocket Crucibles 4 Crucible Diameter (in) 1.13 Crucible Depth (in) 0.50 Feedthrough Diameter (in) 1.00 Ships Within 4-6 Weeks See more 246-9928-1	4	1.13	0.50	1.00	4-6 Weeks
246-9928-2	Number of Pocket Crucibles 4 Crucible Diameter (in) 1.13 Crucible Depth (in) 0.50 Feedthrough Diameter (in) 1.25 Ships Within 4-6 Weeks See more 246-9928-2	4	1.13	0.50	1.25	4-6 Weeks
246-9916-1	Number of Pocket Crucibles Trough Crucible Diameter (in) 2.03 Crucible Depth (in) 1.02 Feedthrough Diameter (in) 1.00 Ships Within 4-6 Weeks See more 246-9916-1	Trough	2.03	1.02	1.00	4-6 Weeks
246-9916-2	Number of Pocket Crucibles Trough Crucible Diameter (in) 2.03 Crucible Depth (in) 1.02 Feedthrough Diameter (in) 1.25 Ships Within 4-6 Weeks See more 246-9916-2	Trough	2.03	1.02	1.25	4-6 Weeks
