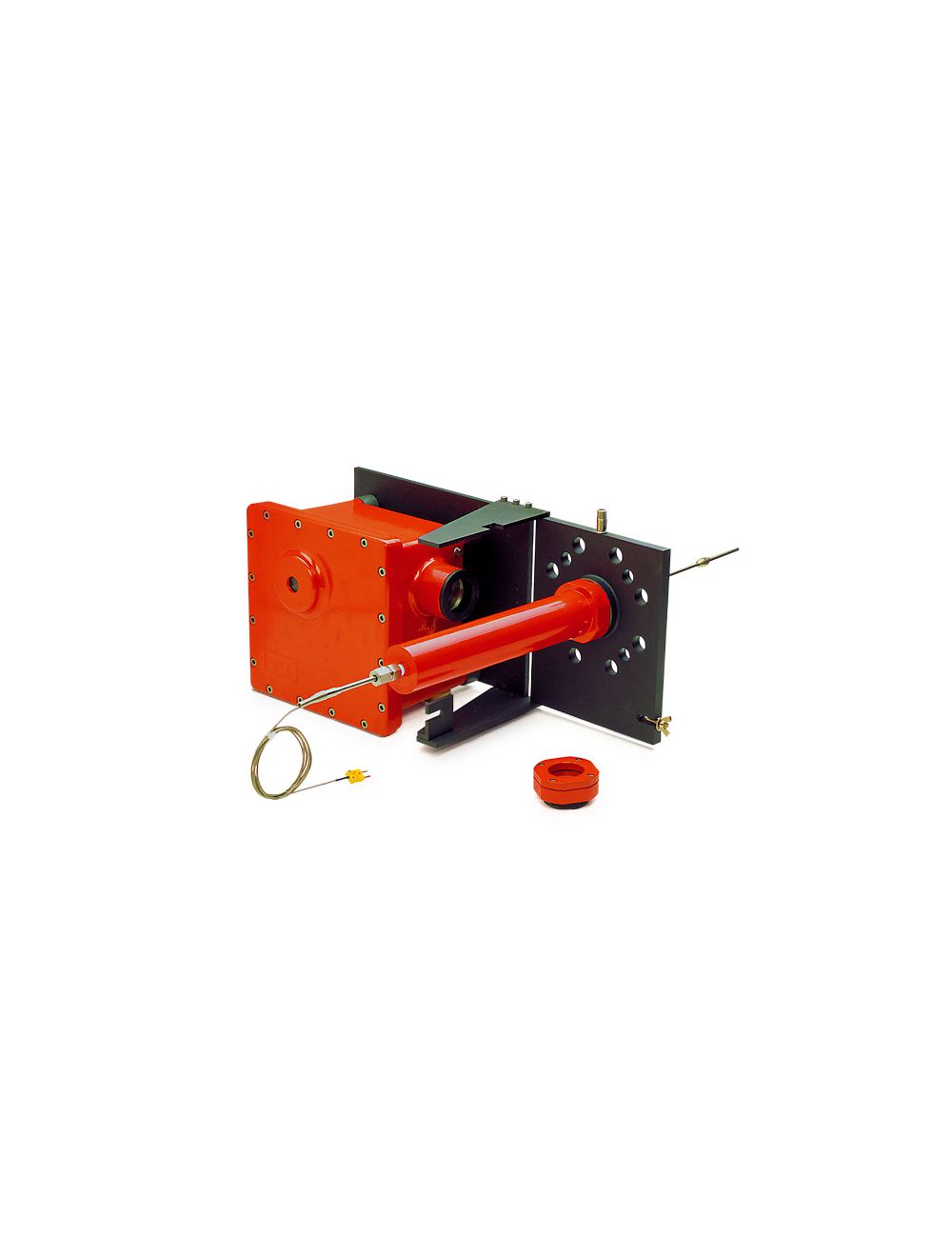

Advanced Energy E²T Pulsar 4
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.
The Advanced Energy E2T PulsarTM 4 is a single channel model for gas or refractory measurement and the E2T Pulsar 4 Advanced is designed to measure two wavelengths for continuous and instantaneous measurement of Refractory temperature and gas temperature simultaneously. The innovative Advanced Energy Smart FMA Flame Measurement Algorithm allows for accurate real-time flame transparency compensation and correction. Applying the flame transparency calculation with FMA removes the flame transparency errors due to the gas (flame) temperature.
PERFORMANCE & SPECIFICATIONS
- Benefits
- Prevent damage to the furnace refractory with high temperature alarms
- Install a single system with two independent infrared filtered detectors for gas (flame) and refractory measurements
- Quickly react to control the furnace process temperatures with instant readings
- Use smart FMA to remove flame transparency errors that typical pyrometers experience (Advanced version only)
- Features
- Explosion-proof certification II 2G EX d llB +H2 T4, IECEx, ATEX, FM (US and CDN) plus additional regional certifications
- Integrated power supply, capable of operating with 24VDC/120/230VAC
- Flexible power options (24VDC/120/230VAC)
- RS485 interface and HART protocol (Advanced version only)
- Technical Sheets
