Advanced Energy Impac IN 140/5 Series
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.

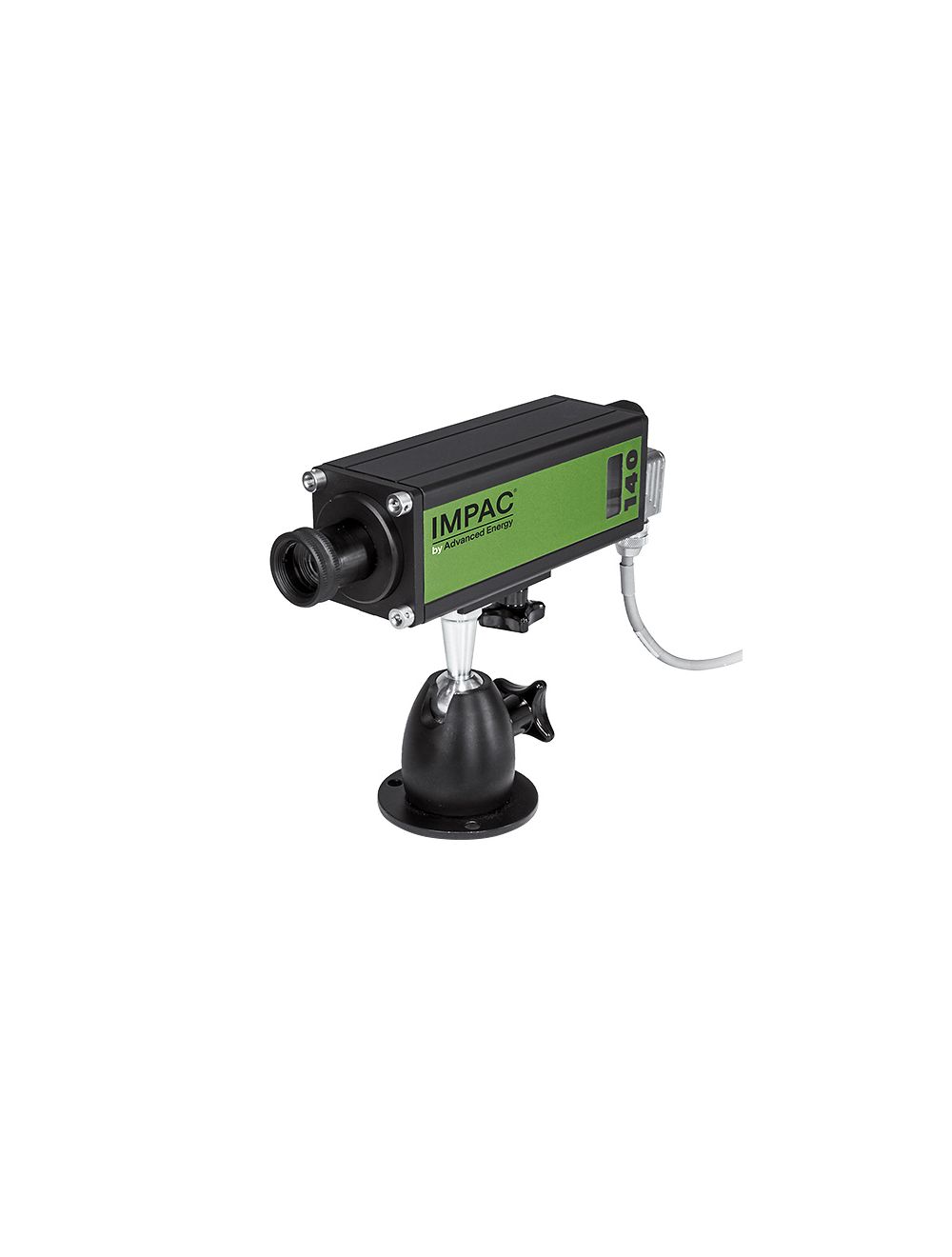

The Impac® IN 140/5 digital pyrometers are ideal for non-contact temperature measurement of glass and quartz-glass surfaces between 250 and 2500°C. The IN 140/5 series showcases very short response time and extremely small spot sizes. It has two model variations. The IN 140/5-L is equipped with a better field-of-view (optics 2-NL) and the high-speed IN 140/5-H has a short response time of only 10 ms.
PERFORMANCE & SPECIFICATIONS
- Benefits
- Accurately measure fast-moving, small objects
- Exactly align with laser targeting light or thru-lens finder
- Use focusable optics to match application requirements
- View temperature measurements via built-in display or PC
- Adjust pyrometer parameters on the instrument or PC using InfraWin Software
- Features
- Thru-lens view finder or laser targeting light
- Built-in digital display
- Interface RS232/RS485 switchable
- Very short response time, minimum ms
- Extremely small spot sizes, minimum 0.9 mm
- Technical Sheets
