Watlow Silicone Rubber Heaters

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

Request A Quote

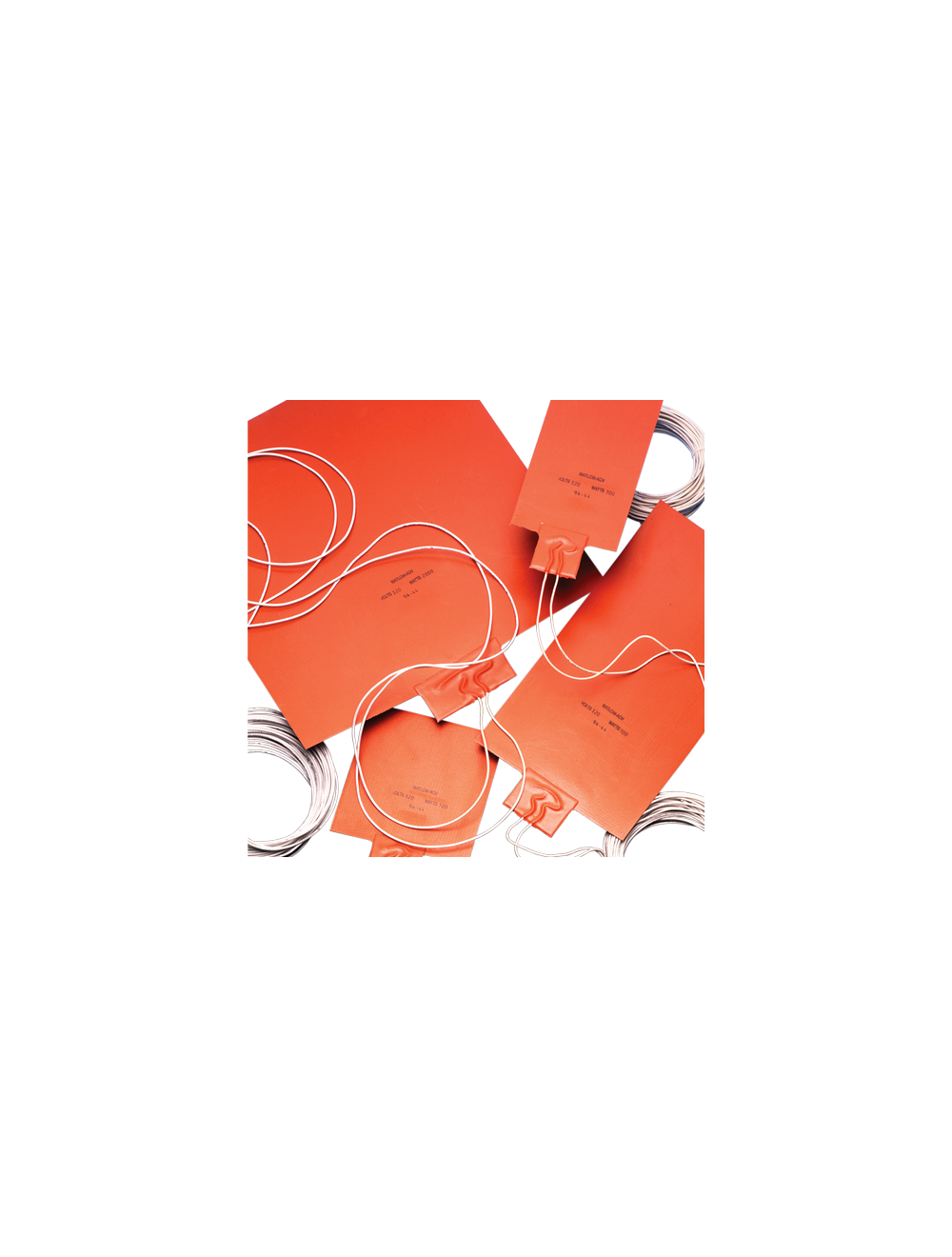

Watlow silicone rubber heaters are rugged, yet thin, lightweight and flexible. Use of these heaters is limited only by the imagination. Heat can be put where it is needed. These silicone heaters improve heat transfer, speed warm ups, and decrease wattage requirements. Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Because very little material separates the element from the part, heat transfer is rapid and efficient. The silicone rubber heaters are constructed with a wire-wound element or an etched foil element. The heater construction creates a very thin heater allowing it to fit applications where space is limited.

PERFORMANCE & SPECIFICATIONS

  • Features and Benefits
    • Designed to the exact shape and size needed
    • More than 80 designs available
    • Constructed with wire-wound or etched-foil elements
    • Moisture and chemical resistant silicone rubber material
  • Performance
    • Operating temperatures up to 500°F (260°C)
    • Watt densities up to 80 W/in2 (12.5 W/cm2), dependent upon application temperature
    • Wire-wound element thickness — 0.055 in. (1.4 mm)
    • Etched-foil element — 0.022 in. (0.56 mm)
  • Typical Applications
    • Semiconductor processing equipment
    • Curing of plastic laminates
