Watlow FINBAR™ Single- Ended Heaters
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.

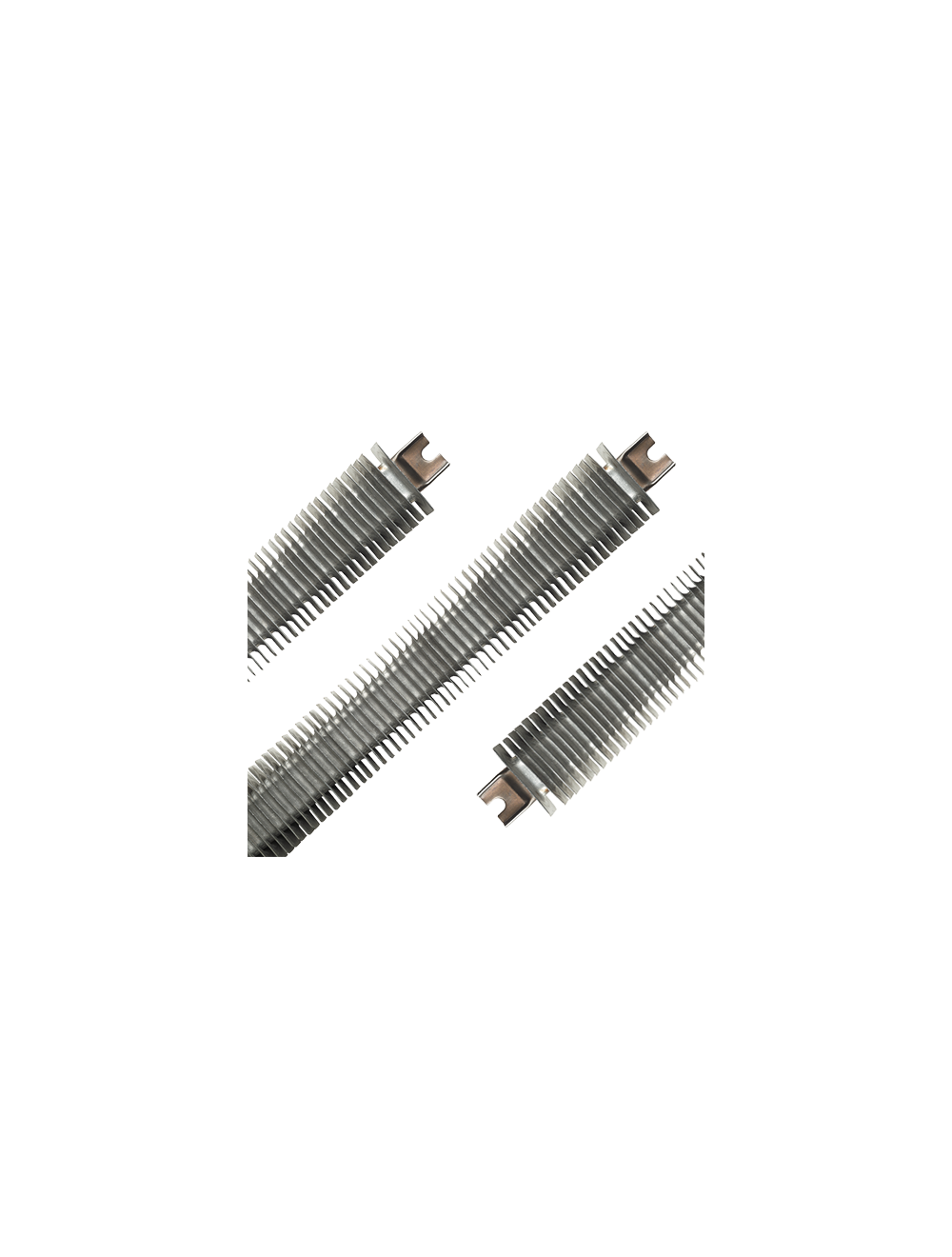

Composed of aluminized steel fins press-fitted to a one-inch single-ended FIREBAR element, the FINBAR finned tubular heater is designed to improve heat transfer to the air and permits putting more power in tighter spaces—like forced air ducts, dryers, ovens and load bank resistors. Heat transfer, lower sheath temperature and element life are all maximized by the FINBAR heater's finned construction. Installation is simplified by terminations exiting at one end and mounting accommodations on both ends.
PERFORMANCE & SPECIFICATIONS
- Performance
- Aluminized steel sheath temperatures up to 1100°F (595°C)
- Watt densities up to 33 W/in2 (5.1 W/cm2)
- UL® approved up to 240VAC (File No. E52951)
- CSA approved up to 600VAC (File No. LR7392)
- Features and Benefits
- Nickel-chromium element wire is centered in the heater for uniform heating
- Aluminized steel sheath
- Welded post terminals
- Typical Applications
- Enclosure heating
- Load bank resistors
- Shrink tunnels
- Air heating
