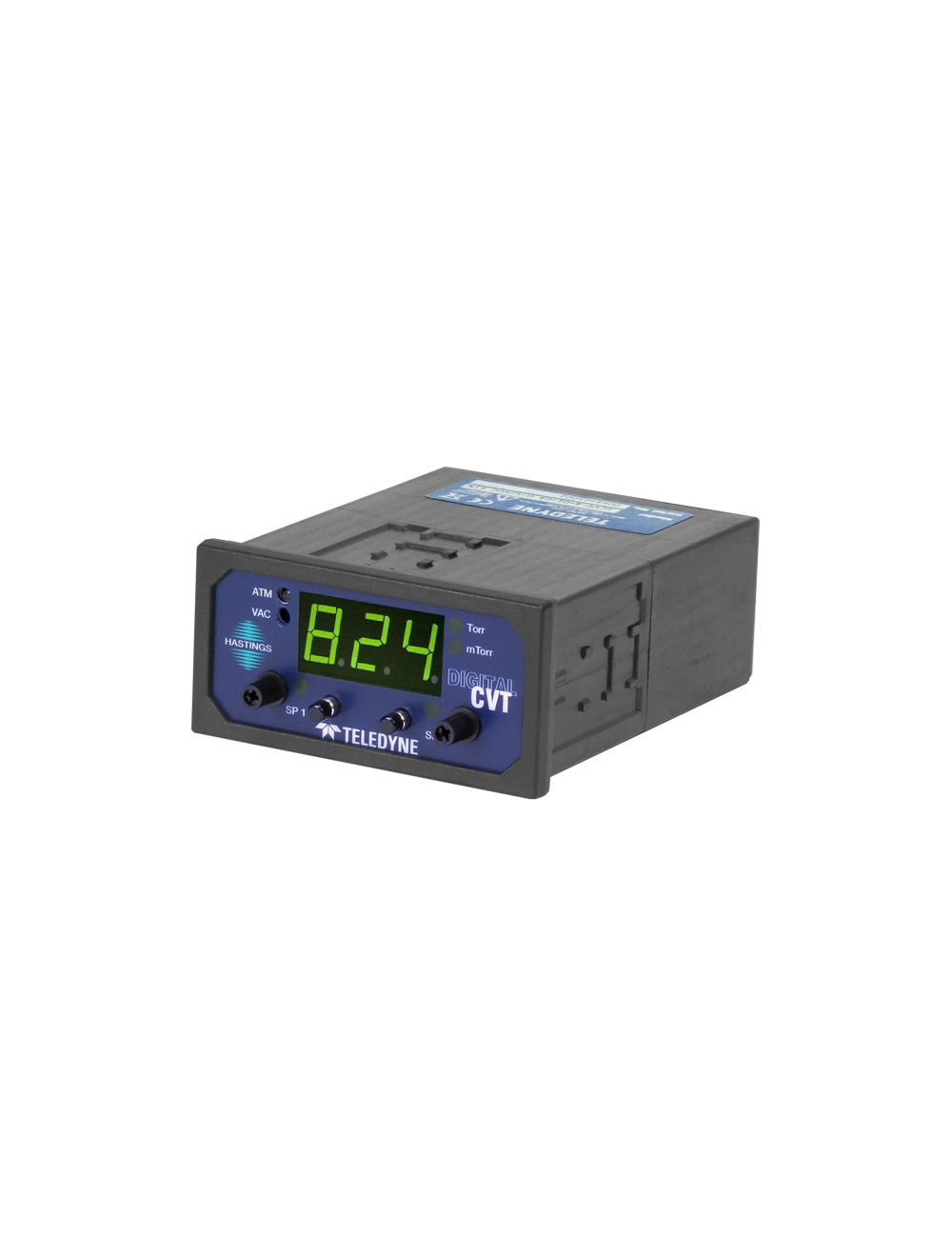

Teledyne Hastings DVCT-5
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.
The Teledyne Hastings DCVT-5 includes several enhanced features which makes it an attractive solution for many vacuum control automation applications. The DCVT-5 can provide linear analog output (voltage or current) for integration of vacuum measurement with a PLC or other data acquisition system. In addition, the DCVT-5 provides RS232 communication for direct connection of the instrument to a computer. The DCVT-5 also includes two independent user selectable set point relays for process control. The control relays are durable 10 Amp single pole double throw which can be wired in a normally open or normally closed configuration.
PERFORMANCE & SPECIFICATIONS
- Range
- 0.1 - 100 mTorr (max)
- Digital Accuracy
- 20% of reading + 0.2 mTorr (max)
- Operating Temperature
- -20 to 70C
- Analog Output Accuracy
- 20% of reading + 0.4 mTorr (max)
