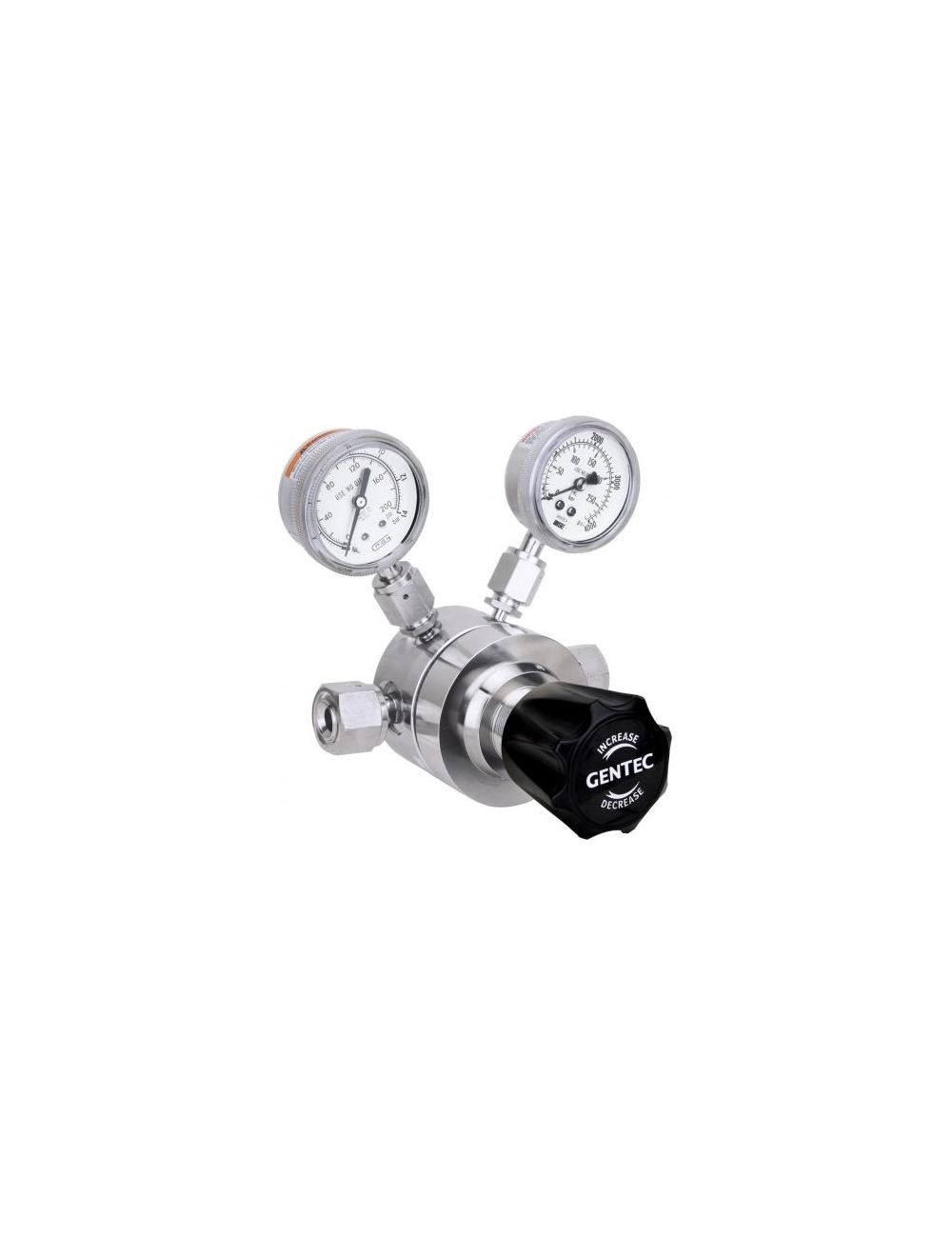

U23SL Series Ultra High Purity Regulator
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.
The U23SL Series Stainless Steel Regulator is an ideal purge regulator for low pressure and high purity systems. It also works great with heavy duty gas flow applications. Our metal-to-metal diaphragm to body seal is designed to minimize leakage and to provide excellent accuracy and longevity.
PERFORMANCE & SPECIFICATIONS
- Benefits
- Max Inlet Pressure: 500 psig (35 bar for B Port), 3000 psig (206 bar for A and G Port)
- Max Outlet Pressure: 250 psig
- Safety Test Pressure: 1.5 x Max inlet pressure
- Temperature Range: -40˚F~165˚F (-40˚C~ 74˚C)
- Inboard Leakage: 2 x 10-8 atm cc/sec He
- Outboard Leakage: 2 x 10-9 atm cc/sec He
- Leakage Across Seat: 4 x 10-8 atm cc/sec He
- Max Cv: 1.8
- Weight: 3.8 lb
