U21SL Series Ultra High Purity Regulator
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.

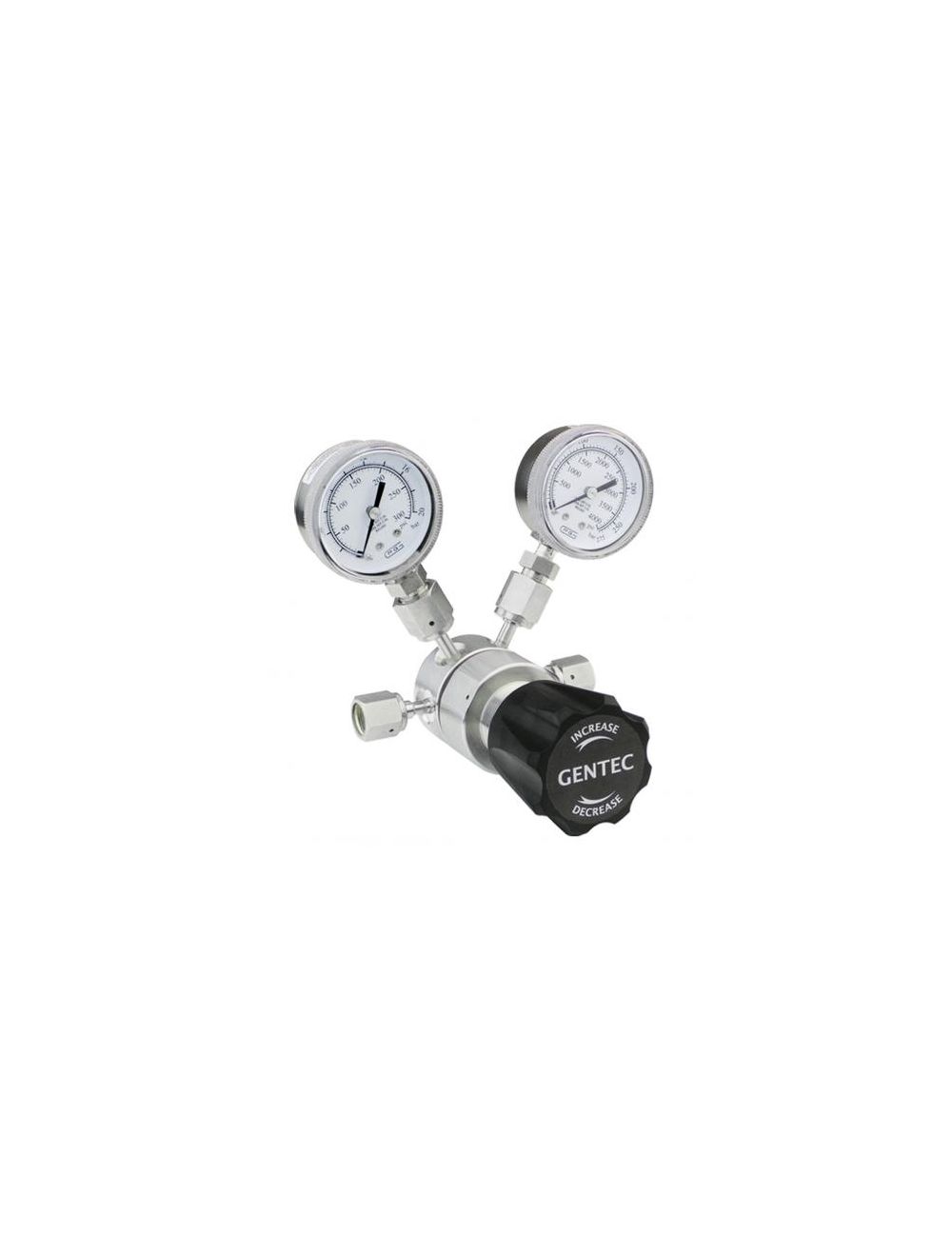

The U21SL Series Single-Stage Stainless Steel Regulator is a hand adjustable, pressure reducing regulator designed for non-corrosive, corrosive, and toxic gas applications. Our metal-to-metal diaphragm to body seal is designed to minimize leakage and to provide excellent accuracy and longevity.
PERFORMANCE & SPECIFICATIONS
- Benefits
- Max Inlet Pressure: 500 psig (35 bar for B Port), 3000 psig (206 bar for A and G Port)
- Max Outlet Pressure: 500 psig
- Safety Test Pressure: 1.5 x Max inlet pressure
- Temperature Range: -40˚F~165˚F (-40˚C~ 74˚C)
- Inboard Leakage: 2 x 10-8 atm cc/sec He
- Outboard Leakage: 2 x 10-9 atm cc/sec He
- Leakage Across Seat: 4 x 10-8 atm cc/sec He
- Max Cv: 0.14
- Weight: 3.8 lb
- Technical Sheets
