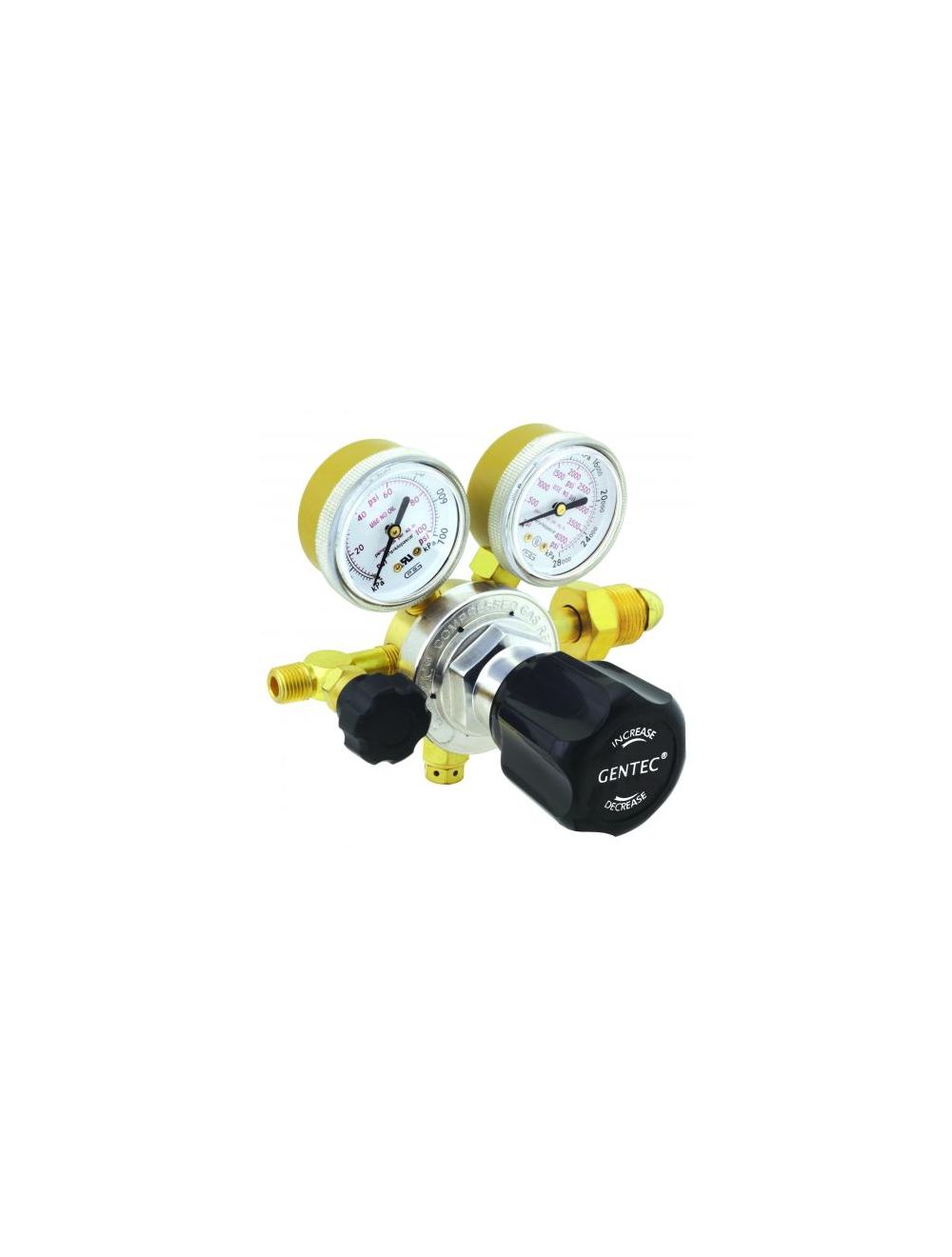

G152 Series General Purpose Regulator
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.
The G152 Series is a Single-Stage Brass Regulator designed for General Purpose laboratory applications where occasional readjustment of the working pressure is acceptable. Not recommended for high purity application in which outgassing due to elastomeric components would adversely affect the process.
PERFORMANCE & SPECIFICATIONS
- Benefits
- Max Inlet Pressure: 3000 psig
- Max Outlet Pressure: 250 psig
- Temperature Range: 0 to 140˚F (-17˚C to 60˚C)
- Weight: 3.2 lb
- Single-stange construction
- 2" Neoprene diaphragm
- 2 dual-scale pressure gauges in gold steel casing
- Optional Outlet: Needle Valve or Diaphragm Valve
- Conforms to CGA E-4 standard for Gas Pressure Regulators
- Technical Sheets
| PART NUMBER | Number of Ports | Ships Within | PRICE | ADD TO CART |
|---|
