COPRA LS800x250-DPRPE
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.

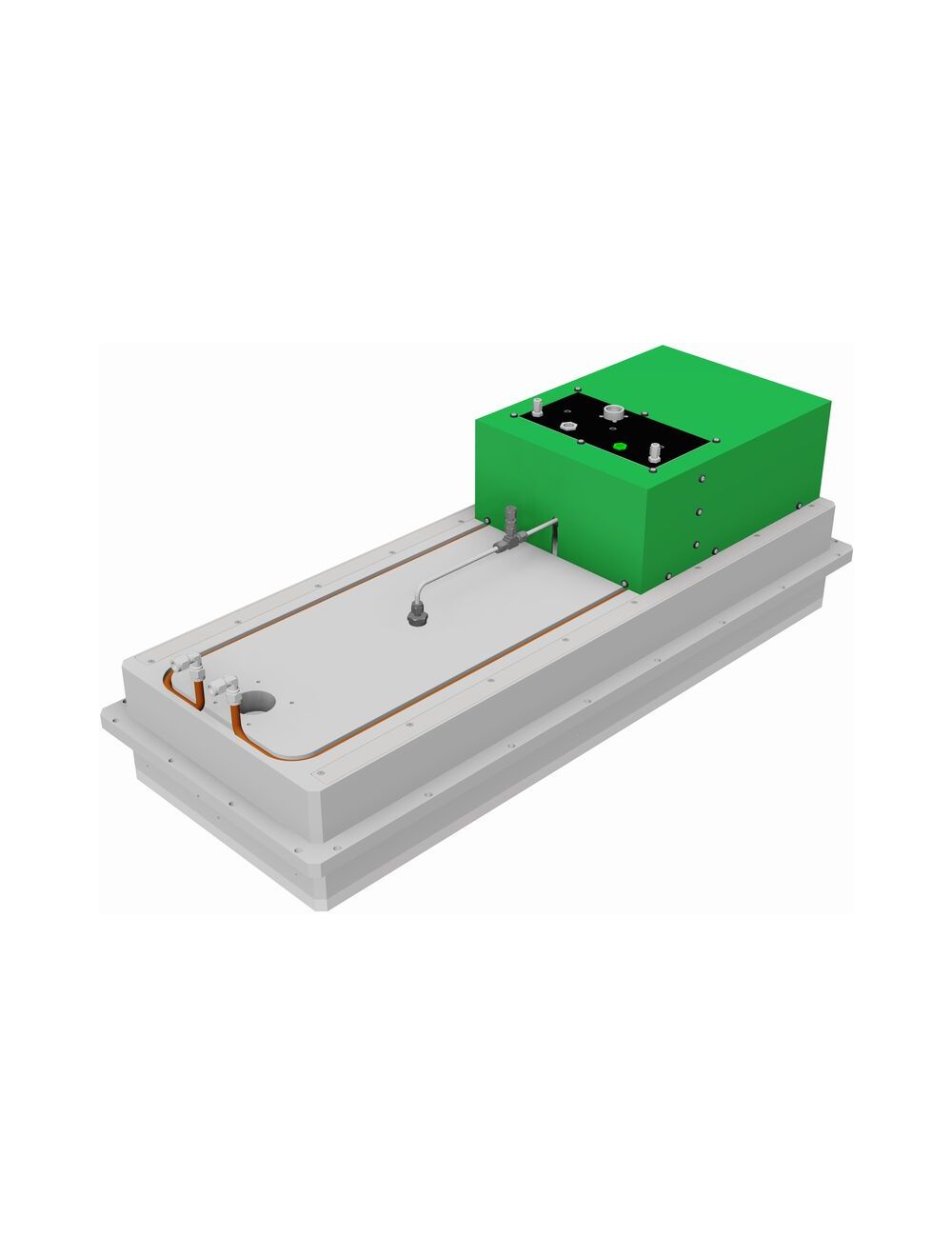

The COPRA LS800x250-DPRPE Linear Plasma Source is designed for high performance PECVD applications with substrate widths of up to 700 mm. The gas cracking efficiency paired with the ability to steadily perform process appropriate levels of ion energy coupled with the adequate ion current density enable a variety of functional coatings on large areas. Forget the uniformity problems which typically occur with the use of RF technology for large area applications. The COPRA LS800x250-DPRPE Linear Plasma Source, the right choice for high throughput and quality metal oxide applications.

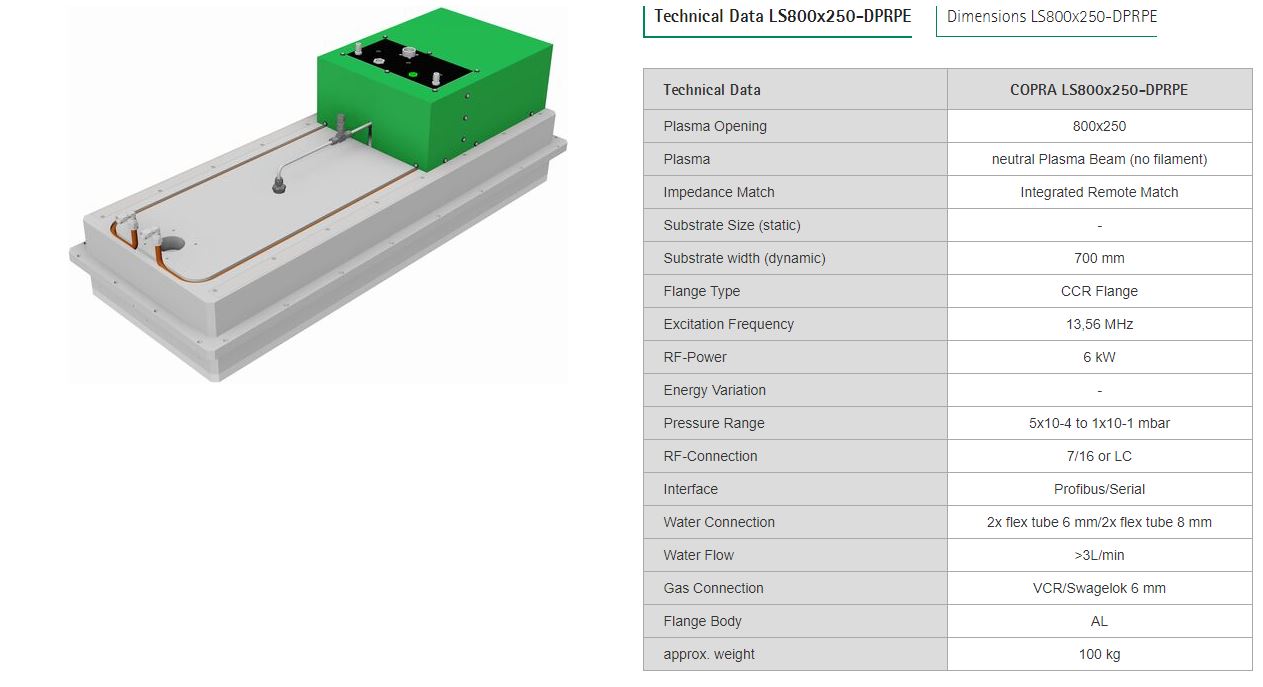

PERFORMANCE & SPECIFICATIONS
- Benefits
- Plasma Opening: 800x250 mm
- Plasma: Neutral Plasma Beam (no filament)
- Impedance Match: Integrated Remote Match
- Pressure Range: 5x10-4 to 1x10-1 mbar
- Technical Sheets
