HP152L Series General Purpose Regulator
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.

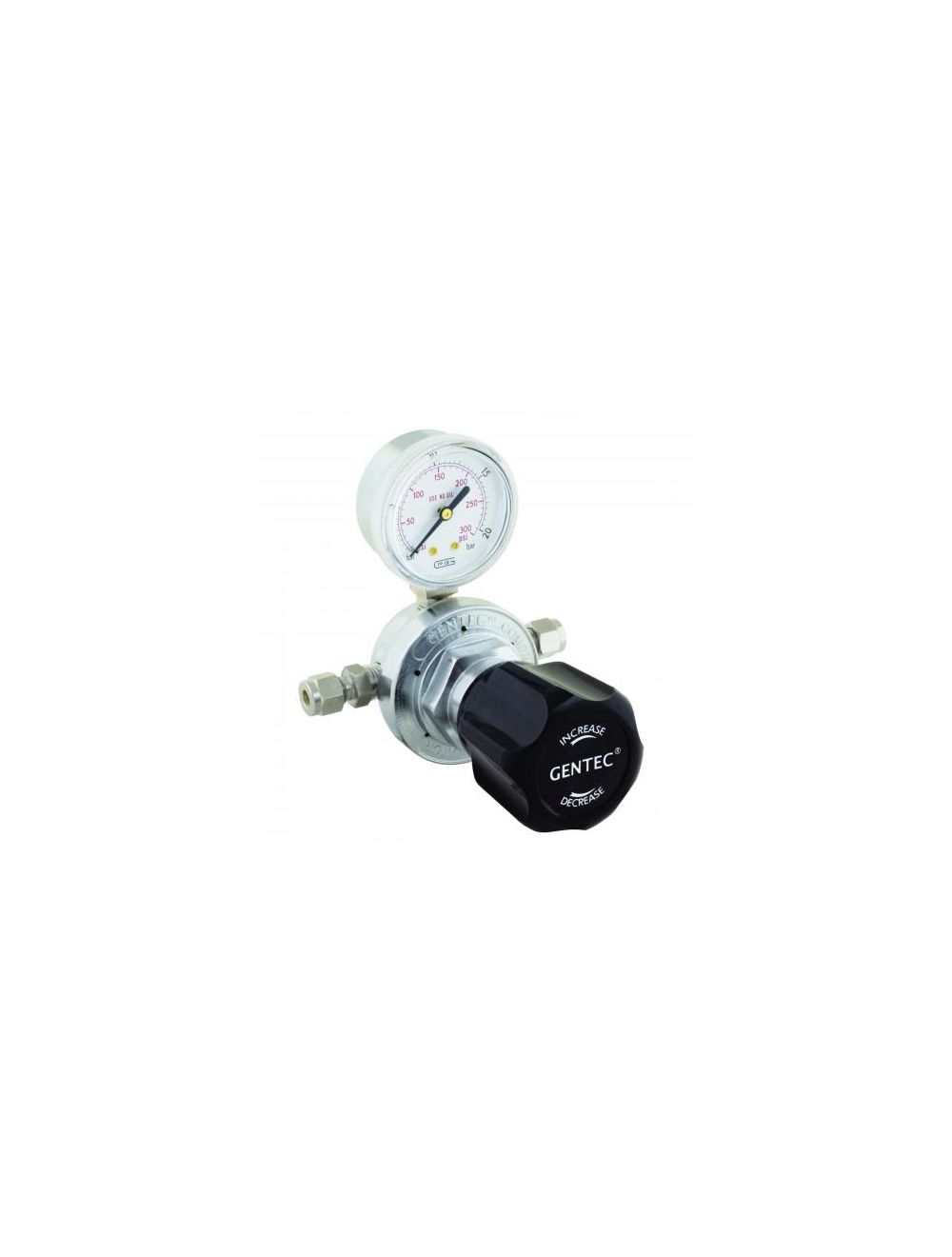

The HP152L Series is a Single-Stage High Purity Brass Line Regulator designed for High Purity applications where occasional readjustment of the working pressure is acceptable. Not recommended for corrosive gases.
PERFORMANCE & SPECIFICATIONS
- Benefits
- Max Inlet Pressure: 500 psig
- Max Outlet Pressure: 150 psig
- Temperature Range: 0 to 140˚F (-17˚C to 60˚C)
- Weight: 3 lb 2 oz
- 2" 316L Stainless Steel Diaphragm
- 2" Dual-Scale Pressure Gauges
- Optional Outlet: Needle Valve or Diaphragm Valve
- Conforms to CGA E-4 standard for Gas Pressure Regulators
- Point of use pressure regulation
- Technical Sheets
| PART NUMBER | Number of Ports | Ships Within | PRICE | ADD TO CART |
|---|
