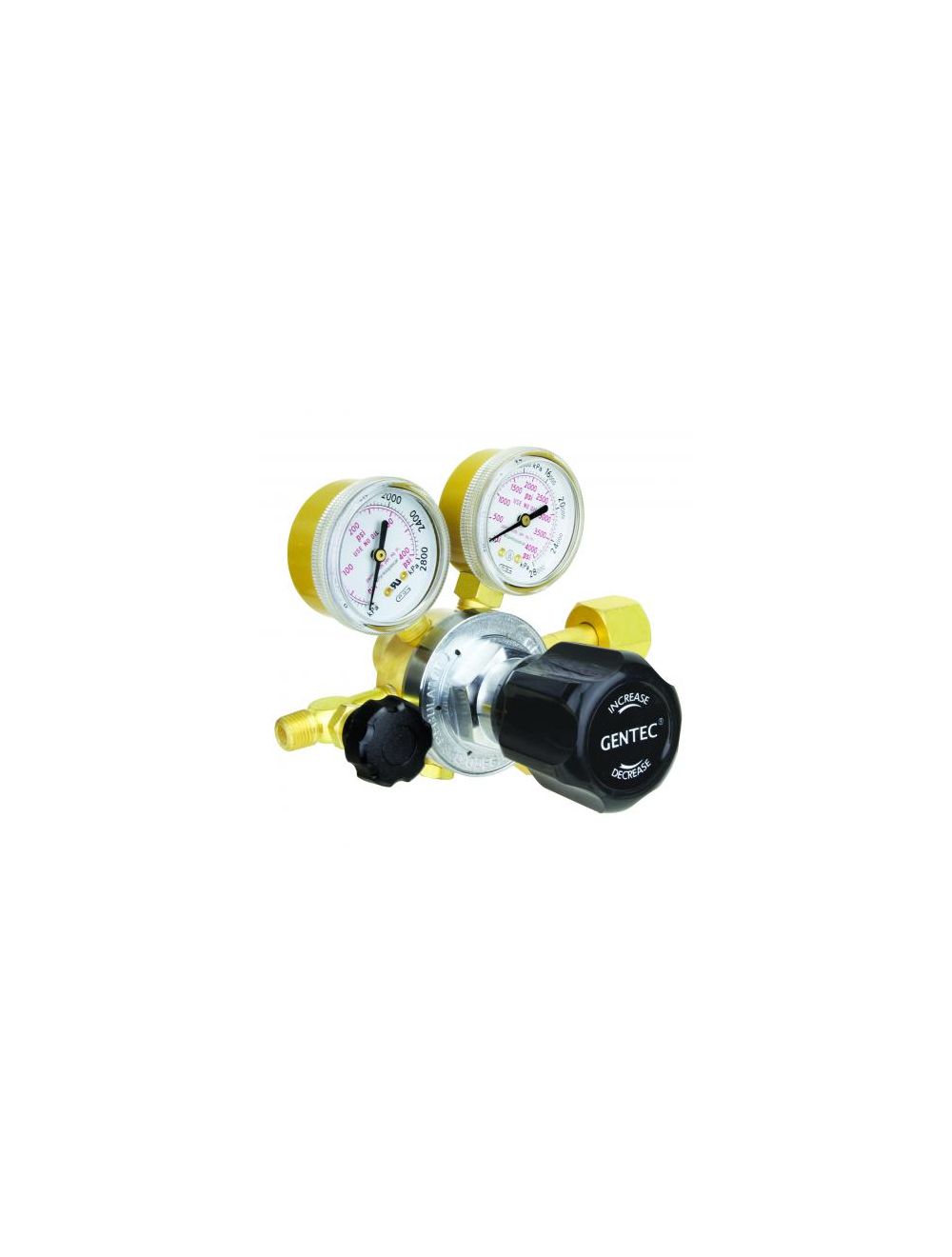

G152T Series General Purpose Regulator
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.
G152T Series is a Dual-Stage Brass Regulator designed for General Purpose laboratory applications where continuous outlet flow and pressure are desired. Not recommended for high purity application in which outgassing due to elastomeric components would adversely affect the process.
PERFORMANCE & SPECIFICATIONS
- Benefits
- Max Inlet Pressure: 3000 psig
- Max Outlet Pressure: 250 psig
- Temperature Range: 0 to 140˚F (-17˚C to 60˚C)
- Weight: 4 lb 1 oz
- 2" Neoprene diaphragm: 1-1/4" for Single-Stage, 2" for Dual-Stage
- 2 dual-scale pressure gauges in gold steel casing
- Optional Outlet: Needle Valve or Diaphragm Valve
- Conforms to CGA E-4 standard for Gas Pressure Regulators

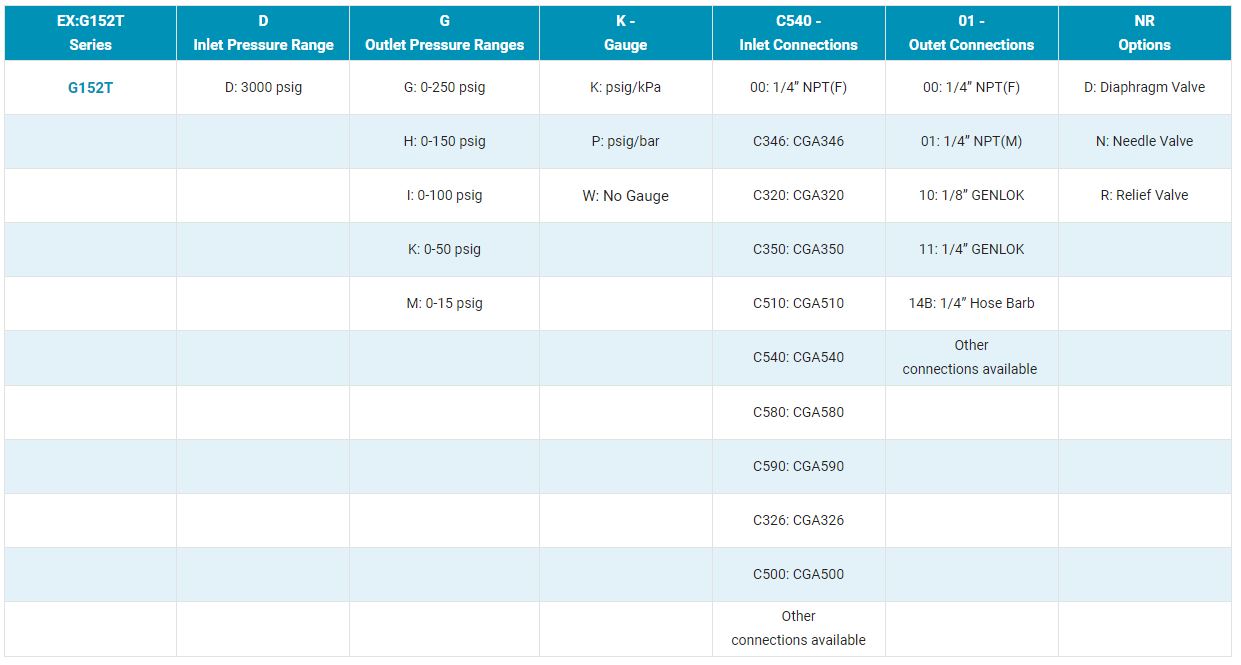

- Technical Sheets
| PART NUMBER | Number of Ports | Ships Within | PRICE | ADD TO CART |
|---|
