Watlow 375 Finned Strip Heaters
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.

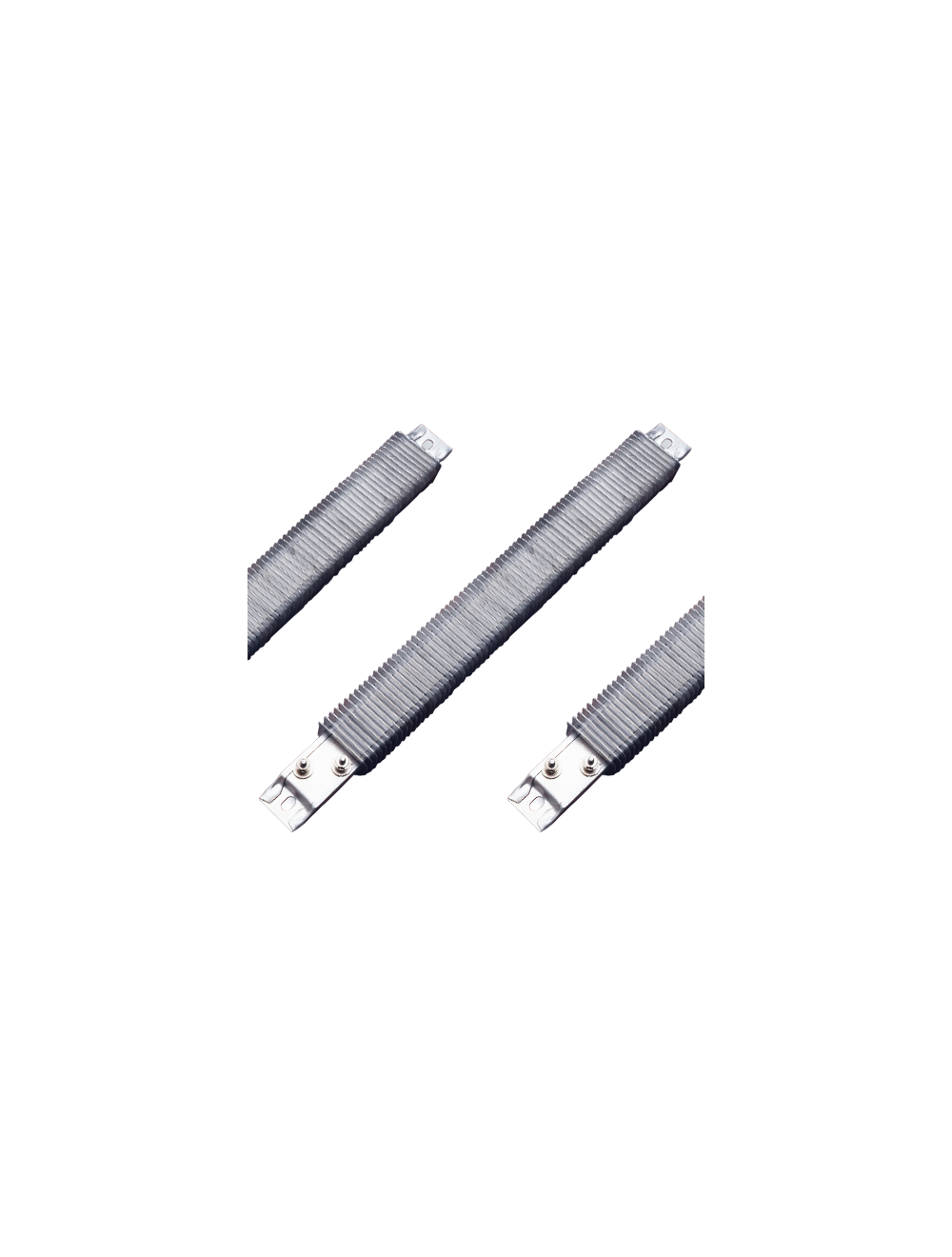

Watlow's 375 finned strip heaters are constructed of highly-compacted MgO-based insulation, which conducts heat efficiently from the nickel chromium element wire to the sheath. Two-inch wide (51 mm) aluminized steel fins are attached in a way that maximizes surface contact so heat is transferred into the air faster. Lower sheath temperature and element life are all maximized by this finned construction. Finned strip heaters com in available lengths from 5 1⁄2 to 48 in. (140 to 1220 mm).
PERFORMANCE & SPECIFICATIONS
- Performance
- Aluminized steel sheath temperatures up to 1100°F (595°C)
- Watt densities up to 33 W/in2 (5.1 W/cm2)
- UL® approved up to 240VAC (File No. E52951)
- CSA approved up to 600VAC (File No. LR7392)
- Features and Benefits
- Nickel-chromium element wire is centered in the heater for uniform heating
- Aluminized steel sheath
- Welded post terminals
- Typical Applications
- Enclosure heating
- Load bank resistors
- Shrink tunnels
- Air heating
- Technical Sheets
